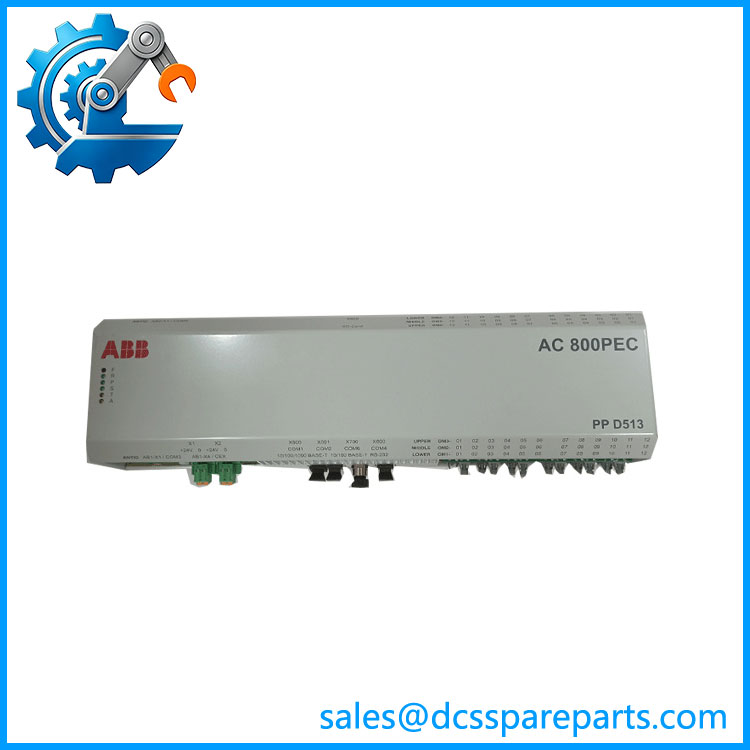

ABB PPD513 3BHE039724R2643 High-Speed Controller
Product Overview
The ABB PPD513 3BHE039724R2643 is a high-speed programmable controller associated with ABB’s AC 800PEC control platform. The platform was developed for applications where conventional process-control hardware does not provide the processing characteristics required by power-electronic control loops. Available technical references identify the PPD513 as a controller used in demanding industrial control applications, particularly power conversion and excitation-control systems.
In a typical architecture, the ABB PPD513 3BHE039724R2643 is not simply a general-purpose PLC CPU. It operates as a dedicated control-processing element within an AC 800PEC system, where fast acquisition, calculation, regulation, and interaction with power-electronic equipment are central to the application. Generator excitation is a representative use case, while converter and other electrical power-control applications can also employ the platform. The exact application depends on the system engineering and application software loaded into the controller.
The distinction matters when sourcing a replacement. A PPD513 with the same model designation but a different ABB ordering number should not automatically be treated as interchangeable. Published references show multiple PPD513 ordering variants, including different ABB part numbers, so the complete 3BHE039724R2643 identifier should remain part of the procurement record.
For a plant engineer, the real value of the ABB 3BHE039724R2643 is its position inside a dedicated high-speed control architecture. It can form part of the control layer responsible for electrical regulation and power-conversion functions while the broader plant automation system handles supervisory functions.
Product Introduction
Power-electronic control has a different timing problem from ordinary process automation. The ABB 3BHE039724R2643 was developed for the AC 800PEC environment, where controller processing is closely tied to converter and excitation-control functions.
For a DCS system upgrade, excitation-system retrofit, or legacy AC 800PEC replacement, matching the hardware alone is not enough. Application software, controller configuration, communication interfaces, firmware, and the surrounding AC 800PEC hardware need to be checked against the existing installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | |
| ABB Part Number | 3BHE039724R2643 |
| Manufacturer / Brand | ABB |
| Product Family | AC 800PEC |
| Product Type | High-speed programmable controller |
| Primary Application | Power-electronic control |
| Typical Application | Generator excitation and power-conversion control |
| Control Role | High-speed application processing and regulation |
| System Architecture | AC 800PEC |
| Installation | AC 800PEC controller system / rack architecture |
| Communication | System-dependent; verify installed AC 800PEC configuration |
| Application Software | Configuration-dependent |
| Firmware | Configuration-dependent; verify actual unit |
| Product Status | Legacy / replacement-market equipment |
The public sources reviewed do not provide a sufficiently consistent primary-document basis for assigning a specific input voltage, power consumption, processor clock, I/O channel count, or fixed control-cycle figure to 3BHE039724R2643. Those values are therefore intentionally omitted.
PPD513A0E-110110
Major Features and Advantages
High-speed power-electronic control
The occupies a different engineering role from a conventional process controller. Its documented association with AC 800PEC places it in systems where controller processing must interact closely with power-electronic equipment and electrical regulation. Available references specifically associate the module with excitation and power-conversion control.
That makes the module relevant to generator excitation systems, converter control architectures, and other applications where the controller is part of the electrical control loop rather than merely collecting process data.
AC 800PEC system integration
The 3BHE039724R2643 is identified as an AC 800PEC component rather than an isolated universal PLC module. Its compatibility therefore depends on the surrounding AC 800PEC hardware and application architecture.
During replacement, check the neighboring controller and interface modules, system topology, communication paths, application software, and engineering configuration. A board-level part-number match does not eliminate those checks.
Excitation-control applications
Multiple technical references associate the with generator excitation control. In this role, the controller participates in the regulation architecture responsible for controlling electrical variables associated with synchronous-generator excitation.
The actual control functions are application-dependent. Do not assume that every contains the same excitation application or parameter set.
Power-conversion applications
The AC 800PEC platform is also associated with power-electronic control and converter systems. The can therefore appear in equipment where high-speed control processing is required for power conversion rather than conventional sequential plant logic.
This distinction is important when evaluating a replacement: the application software and control configuration can be just as important as the physical controller.
Configuration-specific identification
The complete identifier 3BHE039724R2643 should be retained when ordering or documenting the module. Public references list the same model with other ABB ordering numbers, which means “” alone is not a sufficiently precise procurement description.
For legacy equipment, this is not a minor paperwork issue. Different ordering variants can reflect different hardware configurations, system interfaces, or application requirements.
Suitable for legacy control-system maintenance
The remains relevant when maintaining installed AC 800PEC systems where replacing the complete control architecture would be considerably more involved than maintaining the existing controller platform.
A practical replacement program should preserve the original configuration where possible, then validate the controller against the actual excitation or converter application before returning the equipment to service.
Related Products
- ABB PPD512 — Related AC 800PEC processing/controller module used in the same broader high-performance control environment; verify exact application and hardware configuration before substitution.
- ABB PPD113 — AC 800PEC-related processing/control module associated with application-specific high-speed control functions.
- ABB PPD511 — Related power-processing module within ABB’s high-performance power-control architecture.
- ABB UFC760 — AC 800PEC-family controller/interface hardware used in related power-electronic control systems; exact function differs from the .
- ABB UFC762 — Related AC 800PEC control hardware used in high-speed power-control applications.
- ABB UFC710 — AC 800PEC-family control hardware used in power-electronic applications; not an automatic replacement.
- ABB AC 800PEC — High-performance control platform associated with power electronics, converter control, and excitation applications.
- ABB UNITROL — ABB excitation-system family in which AC 800PEC control hardware can be used depending on the system generation and configuration.
- ABB MEGATROL — Related power-electronic/excitation control application family appearing in references for high-performance ABB control hardware.
FAQ
Can I hot-swap the ABB 3BHE039724R2643?
Do not assume that it can be hot-swapped. The can participate directly in excitation or power-electronic control, where removing a controller can affect the controlled equipment. Follow the approved AC 800PEC maintenance procedure and isolate the relevant control system before removing the module unless the specific system documentation explicitly permits live replacement.
Does the support firmware v3.1?
A specific firmware v3.1 compatibility statement for 3BHE039724R2643 could not be verified in the technical material reviewed. The actual firmware and application software should be checked from the installed controller and the AC 800PEC engineering records.
Is a PLC or a DCS I/O module?
It is best classified as a high-speed programmable controller / processing module for AC 800PEC, not as a conventional remote I/O module. It performs controller-level processing within a power-electronic control architecture.
Is 3BHE039724R2643 used for generator excitation?
Yes. Available technical references specifically associate 3BHE039724R2643 with excitation-control systems and generator applications. The exact excitation function and software configuration depend on the complete system.
Can another part number replace 3BHE039724R2643?
Not automatically. Multiple ordering references are documented, so the model name alone is insufficient to establish interchangeability. Compare the complete ABB part number, hardware revision, AC 800PEC architecture, communication interfaces, application software, and system configuration before substitution.
Does the contain the plant’s excitation logic?
The controller can execute application-specific control software, but the physical module should not be assumed to contain the original site’s application logic. Configuration and application software need to be recovered or verified separately during replacement.
What should I check before purchasing a replacement?
At minimum, verify:
- Complete part number: 3BHE039724R2643
- Model:
- Hardware revision
- AC 800PEC system generation
- Controller firmware
- Application software/configuration
- Communication interfaces
- Adjacent AC 800PEC modules
- Excitation or converter application
- Existing control parameters and backup files
Does “New Surplus” prove that the controller is unused?
No. “New Surplus” is a condition description, not proof of factory-unused status. For this type of controller, procurement inspection should include the nameplate, serial number, board condition, connector condition, firmware/configuration information, power-up diagnostics, and compatibility with the installed AC 800PEC system.
Procurement and Compatibility Note
For ABB 3BHE039724R2643, retain both identifiers in all procurement records:
— 3BHE039724R2643
The available references consistently associate this combination with ABB’s AC 800PEC high-speed control platform, particularly power-electronic and excitation-control applications.
The main replacement risk is not simply whether the controller powers up. It is whether the replacement reproduces the original AC 800PEC hardware configuration and application environment. Before commissioning, compare the complete part number, hardware revision, firmware, application software, communication configuration, neighboring modules, and stored control parameters.
I have deliberately not published unverified voltage, processor, I/O, or fixed-cycle specifications. Several secondary listings provide conflicting values, and those numbers should not be presented as engineering specifications without the applicable ABB hardware manual or nameplate confirmation.
