Description
ABB PPD113B01-10-150000 3BHE023784R1023 | AC 800PEC Controller | High-Speed Power Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE023784R1023 |
| Type Designation | PPD113B01-10-150000 |
| Product Family | AC 800PEC |
| Product Type | Control Unit / Controller |
| ANYIO-1 | CEX2-Bus RS422 |
| ANYIO-2 | Empty in specified configuration |
| Optional Module U7 | UF D128 |
| Optional Module U8 | UF D128 |
| Optional Module U10 | Empty |
| Optional Module U11 | Empty |
| Optional Module U12 | Empty |
| System Role | High-speed power-electronics control |
| Typical Applications | Rectifiers, converters, excitation and electrical power-control systems |
ABB-associated configuration information for 3BHE023784R1023 explicitly describes the product as PP D113 B01-10-150000 AC 800PEC and lists the installed slot configuration.
Important Identification Note
Several secondary listings incorrectly describe this exact part as an 8-channel analog-output module, sometimes adding specifications such as 16-bit resolution, 0/4–20 mA output, galvanic isolation, and 0.1% accuracy. Those claims are not supported by the configuration evidence for 3BHE023784R1023 and should not be used as procurement specifications.
The stronger evidence identifies it as an AC 800PEC PP D113 controller unit. An industrial procurement record also lists the exact product as an ABB AC 800PEC controller, rather than an ordinary System 800xA I/O module.

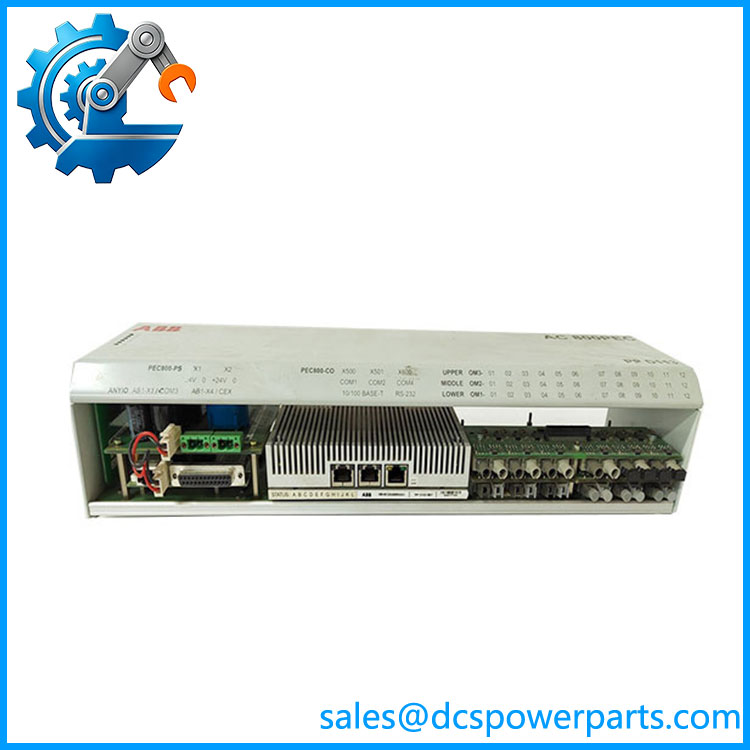

PPD113B01-10-150000 3BHE023784R1023
Product Introduction
The ABB PPD113B01-10-150000 3BHE023784R1023 is a configured AC 800PEC control unit intended for high-speed control applications involving power electronics and electrical energy conversion. Unlike a conventional process-I/O card, the PP D113 forms part of the controller architecture used where control execution and communication with power-electronics hardware require a dedicated AC 800PEC platform.
For replacement work, the complete order code matters. The exact configuration identified for 3BHE023784R1023 includes CEX2-Bus RS422 on ANYIO-1 and two UF D128 option modules, so a physically similar PPD113 with a different suffix or option population should not automatically be considered equivalent.
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The biggest replacement risk is treating PPD113B01-10-150000 as a generic CPU or generic ABB I/O card. It is a configured AC 800PEC unit, and its installed option modules and communication arrangement can be part of the machine’s control architecture.
Typical Applications
- Generator excitation control systems
- High-power rectifier and converter control
- Industrial power-electronics control
- High-speed electrical drive and energy-conversion systems
Technical Pitfalls to Avoid
- Match the complete order code, not only “PPD113.”
The B01-10-150000 configuration is significant. Check the product ID 3BHE023784R1023 against the cabinet documentation and installed hardware. - Verify the option-module population.
The documented configuration contains UF D128 modules in U7 and U8. A replacement without the same option configuration may not reproduce the original system function. - Check the ANYIO interface arrangement.
ANYIO-1 is identified as CEX2-Bus RS422, while ANYIO-2 is empty in this configuration. Do not assume another PPD113 variant has the same interface population. - Do not use generic analog-output specifications for procurement.
Online descriptions claiming that this exact part is an 8-channel 4–20 mA analog-output module conflict with the AC 800PEC controller identification. Verify the physical nameplate and ABB system documentation before publishing channel-level specifications.
Related Products
- ABB UF D128 — Option module appearing in the documented U7 and U8 positions of this PPD113 configuration.
- ABB PPD113B03 series — Related PP D113 AC 800PEC controller configurations with different order codes and hardware populations; not automatically interchangeable.
- ABB PPD113B01 — Same PPD113 controller family, but the complete suffix and configuration must be matched.
- ABB AC 800PEC — Controller platform used for high-speed power-electronics control.
- ABB PCD237A101 — AC 800PEC-related controller used in excitation-control architectures; functional and hardware configuration differ from PPD113.
- ABB PPD517A3011 — Another ABB excitation-processing/control unit; it should not be treated as a drop-in replacement.
- ABB PM866K01 — AC 800M controller family product; conventional AC 800M architecture differs from the AC 800PEC PP D113 platform.
Procurement & Replacement Check
Before approving an ABB PPD113B01-10-150000 3BHE023784R1023, verify:
- Exact designation: PPD113B01-10-150000
- Product ID: 3BHE023784R1023
- AC 800PEC platform
- ANYIO-1 configuration
- CEX2-Bus RS422 interface
- UF D128 module in U7
- UF module in U8
- Empty/occupied status of U10–U12
- Cabinet backplane and system configuration
- Controller firmware/software version
- Application program and parameter set
- Existing excitation, rectifier, converter, or drive architecture
- Board revision and hardware revision
Recommended procurement description:
ABB 3BHE023784R1023 AC 800PEC Control Unit, PP D113 Controller, Configured with CEX2-Bus RS422 on ANYIO-1 and UF Modules in U7/U8.
Procurement warning: The exact part number should take priority over generic descriptions such as “analog module,” “CPU module,” or “excitation board.” The available configuration evidence identifies 3BHE023784R1023 as an AC 800PEC PP controller, while some secondary listings attach unrelated analog-I/O specifications to it.
