Description
Product Overview

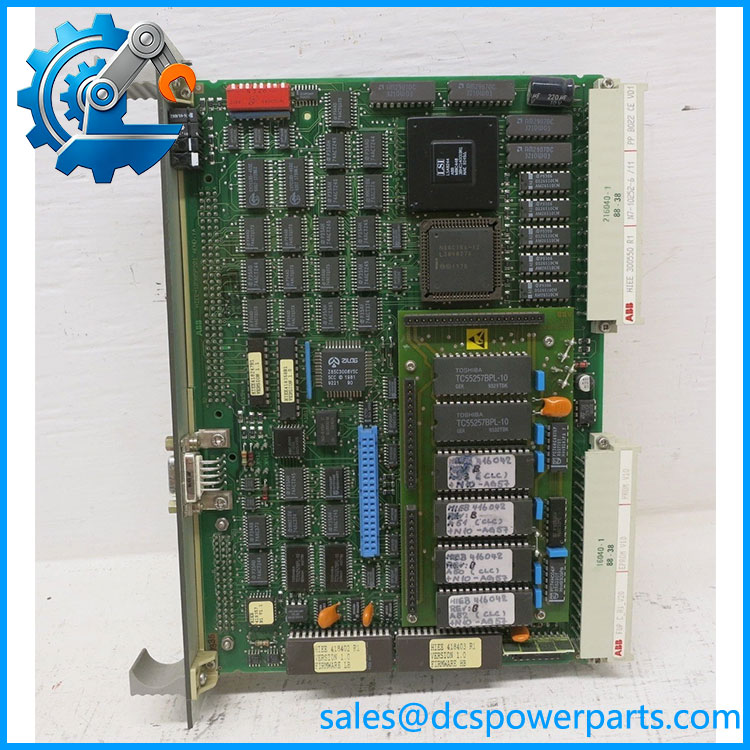

The ABB PPB022DE01 is a legacy PSR Controller used within ABB power-control equipment. Available documentation specifically identifies PPB022DE01 as a PSR controller, while legacy PSR documentation lists PPB022DE01 alongside other specialized controller and converter-control boards. A current component record associates PPB022DE01 with ABB part number HIEE300867R0001.
The ABB PPB022DE01 is not a conventional PLC CPU or general-purpose DCS processor. It belongs to a dedicated power-control architecture in which individual boards perform specialized control, firing, interface, and processing functions. Legacy PSR documentation identifies PPB022DE01 as a main PSR controller and lists related boards such as the firing unit, converter-control board, and output-logic hardware. This architecture is particularly relevant when maintaining older ABB power-conversion equipment where the controller, pulse-generation hardware, and power semiconductor stage are tightly coupled.
The should therefore be purchased and evaluated as an exact system component. The commonly documented ordering number is HIEE300867R0001, not HIEE410491P201. Because the user-supplied HIEE410491P201 identifier could not be independently matched to , the physical board label, PCB marking, revision, and host PSR equipment should be checked before placing a replacement order. Current reseller records also contain conflicting technical descriptions, so generic specifications should not be copied into a procurement specification without verification.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | |
| Manufacturer | ABB |
| Common Part Number | HIEE300867R0001 |
| User-Supplied Number | HIEE410491P201 |
| Product Type | PSR Controller |
| System Family | ABB PSR |
| Primary Function | Power-system control processing |
| Application | Power conversion / drive and industrial power-control systems |
| System Architecture | Dedicated PSR control rack |
| Communication | System-specific PSR interface |
| Mounting | PSR control rack / board slot |
| PLC Function | No — dedicated PSR controller |
| Standalone Ethernet | Not verified |
| Supply Voltage | Not reliably established for the board itself |
| Operating Temperature | Not reliably established |
| Protection Rating | Not applicable as a standalone field enclosure |
| Exact I/O | System-specific; verify PSR documentation |
| Hardware Revision | Must be verified from physical board |
Main Features and Engineering Considerations
Dedicated PSR Control Function
The defining characteristic of is its role as a PSR controller. It should not be confused with an ordinary PLC CPU, analog I/O module, or power-supply board. Legacy documentation specifically places within the PSR controller group.
PPB022DE01
Part-Number Discipline
There is an important procurement discrepancy with the supplied identification. Current records consistently associate with HIEE300867R0001. One current listing explicitly presents “HIEE300867R0001 ” and identifies the product as a PSR Controller.
I could not establish the relationship between HIEE410491P201 and from sufficiently reliable documentation. It may be a board marking, internal assembly number, revision-related identifier, or a separate part number, but that should not be assumed.
PSR System Architecture
Legacy ABB PSR systems use multiple specialized boards rather than one modern multifunction controller. Documentation identifies alongside firing/pulse hardware and other converter-control boards. This means a controller replacement should be evaluated together with the surrounding PSR hardware.
Firmware and Configuration
For a running installation, the board itself is only one part of the compatibility question. Record the existing controller configuration, software/firmware revision, board revision, rack position, and associated firing/control boards before replacement.
Avoid Unsupported Electrical Specifications
Some reseller pages publish voltage, current, temperature, and mounting specifications that appear to belong to unrelated products or generic industrial-control equipment. For example, one listing gives drive-like 22 kW and 208–690 VAC specifications while simultaneously identifying the product as . Those figures should not be treated as specifications for the PSR controller board.
Application Scenarios
- ABB PSR power-control systems
- Legacy converter control equipment
- Industrial power-electronics systems
- Drive control installations
- Power-generation auxiliary equipment
- Converter and rectifier control systems
- Maintenance of legacy ABB control cabinets
- Replacement of failed PSR controller hardware
Engineer’s Guide: Field Pitfalls
1. Verify both numbers on the physical board.
For this particular request, the difference between HIEE300867R0001 and HIEE410491P201 needs to be resolved before procurement.
2. Do not substitute a generic PLC CPU.
belongs to a dedicated PSR control architecture.
3. Record the board revision.
Photograph the complete label, PCB silkscreen, revision code, and connector arrangement.
4. Preserve the existing configuration.
Back up controller parameters and record the associated PSR control hardware before removing the original board.
5. Check neighboring boards.
Legacy PSR equipment can contain dedicated firing, pulse, converter-control, logic, and interface boards. A controller fault may actually originate elsewhere in the control chain.
6. Do not rely on generic reseller specifications.
The conflicting specifications found online make nameplate and system-document verification particularly important.
Frequently Asked Questions
What is ABB ?
is identified as an ABB PSR Controller used in a legacy ABB PSR control architecture.
What is the commonly associated ABB part number?
The commonly documented ABB part number is .
Is HIEE410491P201 the same as ?
I could not verify that relationship from reliable documentation. The two identifiers should therefore not be declared equivalent without checking the physical board and ABB documentation.
Is a PLC CPU?
No. It is documented as a PSR Controller, meaning it belongs to a specialized ABB power-control architecture rather than a general-purpose PLC family.
Is an I/O module?
No. Available documentation identifies it as a controller board. Other specialized PSR boards handle functions such as firing/pulse generation and converter control.
What voltage does require?
I would not publish a definitive board supply voltage from the available sources. Some reseller pages contain conflicting specifications that appear unrelated to this controller.
Procurement Note
For the safest replacement specification, use:
ABB — commonly associated with — PSR Controller
Then explicitly add the customer-supplied marking:
— verify relationship to before shipment.
Request clear photographs showing the complete front label, PCB identification, revision, connectors, and any additional ABB number. For legacy PSR equipment, matching only the functional description “PSR Controller” is not sufficient for a controlled replacement.
