Description
Product Overview

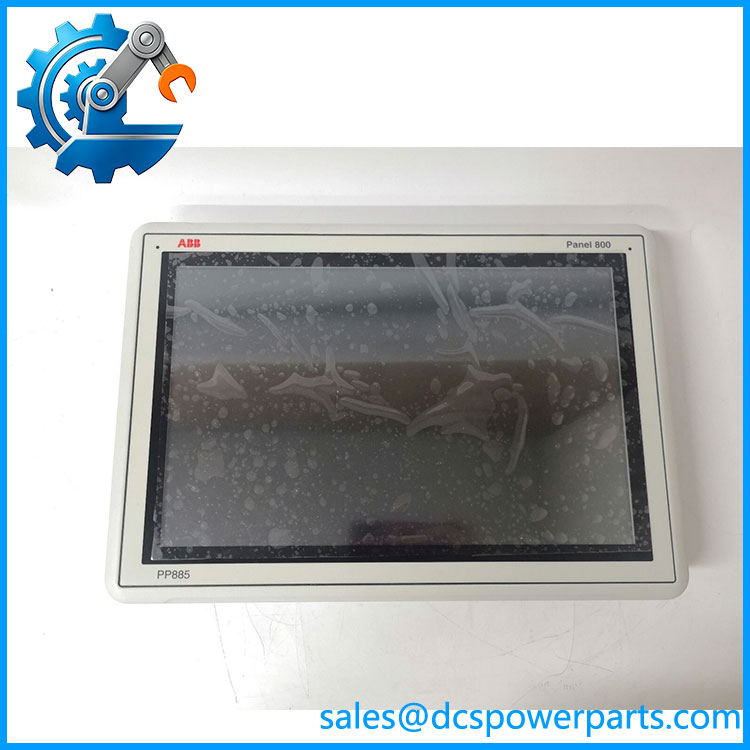

The ABB PP885M is a 15.4-inch Black Touch Panel from the ABB Panel 800 Version 6 family. Its article number is 3BSE069280R1, and ABB specifies a 1280 × 800 widescreen TFT color display with 16.7 million colors, LED backlighting, and a 16:10 aspect ratio. The panel uses a resistive touchscreen rated for up to 5 million finger-touch operations.
The ABB PP885M 3BSE069280R1 is designed as an operator interface for industrial automation systems, providing the display and touch interaction required for process visualization, equipment control, alarms, trends, and operator commands. It is configured with Panel Builder 800 Version 6, rather than being treated as a generic Windows industrial monitor. ABB’s product catalog specifically identifies PP885M as a Black Touch Panel and states the Panel Builder 800 Version 6 configuration requirement.
Internally, the ABB PP885M uses a 1.0 GHz Intel Atom processor, 1 GB main memory, and 3.5 GB SLC application memory. Its network hardware includes one 10/100 Base-T Ethernet interface and one 10/100/1000 Base-T interface, while three USB Host 2.0 ports are provided for supported peripheral functions. These interfaces make the PP885M more than a passive display: it is an operator-panel computer designed around the Panel 800 software environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PP885M |
| ABB Article Number | 3BSE069280R1 |
| Manufacturer | ABB |
| Product Type | Industrial operator panel / HMI |
| Product Family | Panel 800 Version 6 |
| Panel Series | Black Touch Panel |
| Display Size | 15.4 inches |
| Display Type | TFT Color LCD |
| Resolution | 1280 × 800 |
| Aspect Ratio | 16:10 |
| Display Colors | 16.7 million |
| Brightness | 450 cd/m² |
| Backlight | LED |
| Touch Type | Resistive |
| Touch Rating | 5 million finger-touch operations |
| Processor | 1.0 GHz Intel Atom |
| Main Memory | 1 GB |
| Application Memory | 3.5 GB SLC |
| Ethernet Port 1 | 10/100 Base-T, shielded RJ-45 |
| Ethernet Port 2 | 10/100/1000 Base-T, shielded RJ-45 |
| USB | 3 × USB Host 2.0 |
| Configuration | Panel Builder 800 Version 6 |
| Application | Industrial HMI / process visualization |
| Front Protection | Verify exact installation/environmental variant |
| Operating Temperature | Verify applicable installation documentation |
| Storage Temperature | Verify applicable installation documentation |
ABB’s current Panel 800 Version 6 datasheet confirms the core hardware specification, including the display, processor, memory, Ethernet, USB, and touch characteristics.
PP885
Main Features and Engineering Considerations
15.4-Inch Industrial HMI
The provides a relatively large 15.4-inch operator interface with 1280 × 800 resolution. The 16:10 display format is suitable for process graphics, alarm information, trends, faceplates, and multi-object visualization where a smaller panel would require excessive screen navigation.
The Black Panel version uses a 450 cd/m² display and an LED backlight. ABB separately identifies the PP885H as the 1000 cd/m² high-brightness version, so should not be represented as the high-brightness PP885H.
Resistive Touch Interface
uses resistive touch technology. ABB specifies a rated life of 5 million finger-touch operations. This distinction matters when replacing an older Panel 800 because touch technology, front-film construction, and panel electronics are part of the HMI assembly rather than interchangeable generic monitor components.
Dual-Speed Ethernet
The panel provides two Ethernet interfaces: one 10/100 Base-T connection and one 10/100/1000 Base-T connection. The exact network role of each port should be confirmed against the plant’s Panel 800 configuration rather than assuming that both ports can be used identically in every application.
Panel Builder 800 Compatibility
A replacement should be considered together with the Panel Builder project and target Panel 800 software version. ABB specifically states that requires Panel Builder 800 Version 6 for configuration.
For a live plant, preserve the existing application project before changing the HMI. A physically compatible panel with an incompatible application image can still result in commissioning delays.
Lifecycle and Replacement Planning
ABB’s later Panel 800 documentation identifies PP886M as a replacement for in Panel 800 Version 6.2, with article number 3BSE092984R1. That does not mean PP886M should be treated as a drop-in replacement without checking the project, mounting, dimensions, firmware/software compatibility, and electrical installation.
Application Scenarios
- ABB 800xA operator stations
- Process-control HMI
- Plant visualization
- Alarm and event monitoring
- Process trends
- Equipment status displays
- Operator command interfaces
- Industrial machine visualization
- Legacy Panel 800 Version 6 installations
- Replacement of existing operator panels
Engineer’s Guide: Field Pitfalls
1. Match the complete article number.
Use / 3BSE069280R1 when identifying the existing unit. Do not confuse it with PP885, PP885H, or PP885R.
2. Do not confuse with PP885H.
Both are 15.4-inch Black Panel models, but PP885H is the high-brightness version at 1000 cd/m², whereas is specified at 450 cd/m².
3. Preserve the Panel Builder project.
The hardware is only part of the HMI replacement. Back up the application, communication configuration, screen database, alarms, trends, and user configuration.
4. Check the software generation.
belongs to Panel 800 Version 6. A project created for another Panel 800 generation should be checked before downloading it to the replacement panel.
5. Verify Ethernet architecture.
The two Ethernet ports have different documented speeds. Confirm which port is connected to the control network and which functions are assigned to the second interface.
6. Inspect the touchscreen and front film.
On older panels, touch degradation can originate from the resistive touch layer or front assembly rather than the processor electronics.
7. Check the replacement generation carefully.
ABB documentation identifies PP886M as a later replacement for . Physical fit, project conversion, software compatibility, and cabinet cutout requirements should be checked before substituting it.
Frequently Asked Questions
What is ABB ?
ABB is a 15.4-inch Black Touch Panel in the Panel 800 Version 6 family, used as an industrial operator interface/HMI.
What is the ABB part number?
The article number is 3BSE069280R1.
What is the display resolution?
uses a 1280 × 800 pixel TFT color display with a 16:10 aspect ratio.
What processor does use?
ABB specifies a 1.0 GHz Intel Atom processor with 1 GB main memory and 3.5 GB SLC application memory.
Does have Ethernet?
Yes. ABB specifies one 10/100 Base-T Ethernet interface and one 10/100/1000 Base-T Ethernet interface.
What software is used to configure ?
ABB specifies Panel Builder 800 Version 6 for configuration.
Is the same as PP885H?
No. is the high-brightness 15.4-inch variant, specified at 1000 cd/m², while is specified at 450 cd/m². Their article numbers are also different.
Has ABB introduced a later replacement?
ABB’s Panel 800 Version 6.2 documentation identifies PP886M, 3BSE092984R1, as replacing . Replacement should still be checked for mechanical, software, and project compatibility.
Procurement Note
For an exact replacement, specify:
ABB — 3BSE069280R1 — Panel 800 Version 6 Black Touch Panel — 15.4-inch, 1280 × 800, resistive touch.
Before purchase, verify the article number on the rear label, the installed Panel Builder version, the application project, Ethernet topology, and cabinet cutout. If considering the later PP886M 3BSE092984R1, treat it as a replacement candidate rather than automatically assuming it is a mechanical and software drop-in replacement. ABB explicitly identifies PP886M as replacing in Panel 800 Version 6.2.
