Description

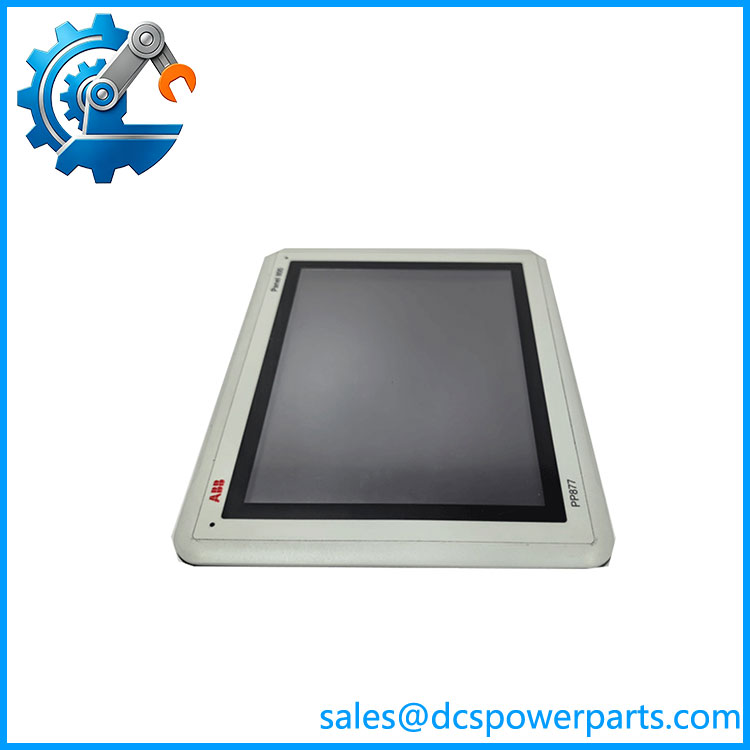

The ABB PP877 3BSE069272R2 is a 10.4-inch industrial operator panel designed for process automation visualization and machine-level control applications. It provides a graphical interface between operators and control systems, allowing monitoring of process values, alarm handling, parameter adjustment, recipe management, and equipment operation.
The ABB PP877 3BSE069272R2 belongs to the Panel 800 V6 family and uses a TFT-LCD display with resistive touch technology. The panel includes Ethernet communication, serial interfaces, USB connectivity, and SD card support for application transfer, backup, and maintenance operations.
The ABB PP877 3BSE069272R2 is typically installed as a local operator station in industrial cabinets where direct access to process information and control functions is required.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PP877 |
| ABB Order Number | 3BSE069272R2 |
| Manufacturer | ABB |
| Product Family | Panel 800 Version 6 |
| Product Type | Industrial HMI Touch Panel |
| Display Size | 10.4 inch |
| Display Type | TFT-LCD with LED backlight |
| Display Resolution | 640 × 480 pixels |
| Display Ratio | 4:3 |
| Display Colors | 64k colors |
| Brightness | 450 cd/m² |
| Viewing Angle | 160° horizontal / 140° vertical |
| Touch Technology | Resistive touchscreen |
| Touch Life | Approx. 1 million operations |
| Processor | ARM9 400 MHz |
| Main Memory | 128 MB DDR2 |
| Application Memory | 80 MB |
| External Storage | SD card slot |
| Ethernet Interface | 1 × 10/100 Base-T RJ45 |
| USB Interface | 1 × USB 2.0 |
| Serial Interface | 2 × RS232 / 2 × RS422/485 (combined ports) |
| Power Supply | +24 VDC (18–32 VDC) |
| Power Consumption | Approx. 9.6 W |
| Mounting | Panel mount / VESA 75 × 75 |
| Dimensions (W×H×D) | 280 × 228 × 51 mm |
| Cutout Size | 262 × 209 mm |
| Protection Rating | IP65 front / IP20 rear |
| Operating Temperature | -10°C to +60°C |
| Humidity | 5–85% RH non-condensing |
Product Introduction
ABB PP877 3BSE069272R2 Product Introduction
ABB PP877 3BSE069272R2 is an industrial touchscreen operator panel designed for visualization and operation tasks in ABB automation systems. It serves as the operator-facing interface for displaying process graphics, equipment status, alarms, trends, and control parameters.
The ABB 3BSE069272R2 is part of the Panel 800 V6 platform, a family of HMI terminals developed for integration with industrial control environments. The panel supports engineering through ABB Panel Builder software and can be configured for various communication architectures depending on the connected controller and application requirements.
The ABB 3BSE069272R2 combines a 10.4-inch display with industrial communication interfaces, allowing connection to PLCs, DCS controllers, drives, and field-level automation equipment. Its Ethernet and serial communication ports allow integration into both modern and legacy industrial systems.
Typical installations include production lines, process skids, power plant auxiliary systems, and operator stations where reliable local monitoring and control are required.
For replacement projects, engineers should verify the existing HMI application file, Panel Builder version, communication drivers, and controller interface settings. Matching the hardware part number alone does not guarantee immediate commissioning if the original project configuration is unavailable.
PP877 3BSE069272R2
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
An operator panel fails after years of continuous operation. The replacement hardware is available, but the plant discovers that the original visualization project, communication settings, or firmware environment is missing.
The HMI is not only a display device. It contains application logic, communication drivers, alarm configuration, and operator workflow information.
Typical Applications
Process Automation
Used for:
- Process overview displays
- Alarm monitoring
- Operator commands
- Parameter adjustment
Power Generation
Applied in:
- Auxiliary system controls
- Pump and motor monitoring
- Local equipment panels
Manufacturing Systems
Used for:
- Machine operation
- Production monitoring
- Recipe management
- Maintenance interfaces
Oil & Gas Facilities
Applied in:
- Skid-mounted systems
- Local control panels
- Field equipment monitoring
Technical Pitfalls to Avoid
1. Confirm Application Project Compatibility
Before replacement, verify:
- Panel Builder project file
- Runtime version
- Screen database
- User access configuration
A new panel without the correct application package may require complete reconfiguration.
2. Check Communication Parameters
Verify:
- Ethernet settings
- Serial protocol selection
- Controller address
- Network topology
Common communication failures come from configuration differences rather than hardware defects.
3. Verify Panel Cutout Dimensions
The 3BSE069272R2 uses a specific mounting opening:
- Cutout: approximately 262 × 209 mm
- Mounting depth requirements must be checked before installation.
4. Backup Existing Configuration
Before removing an installed unit:
- Upload the HMI project if possible
- Record IP settings
- Save communication parameters
- Document connected controllers
This reduces commissioning time after replacement.
