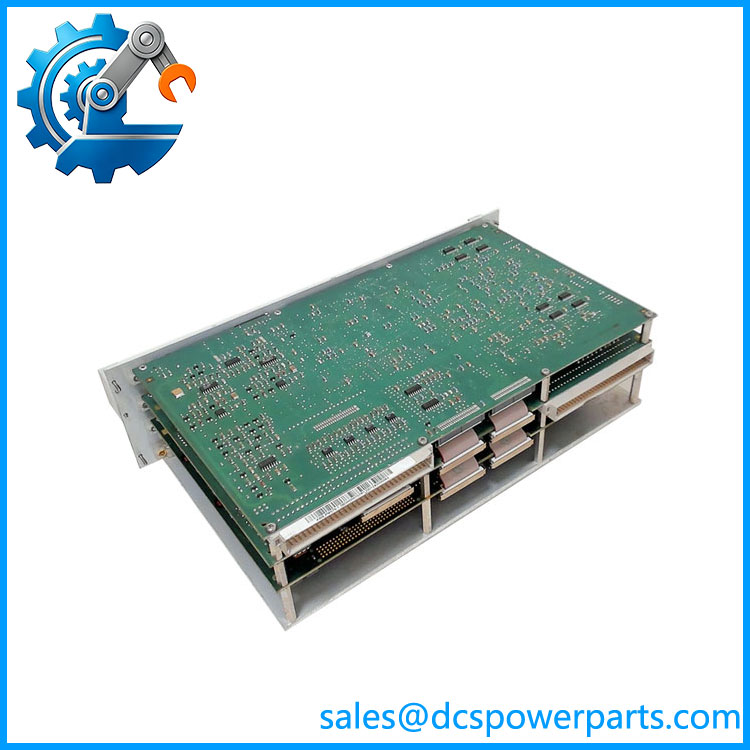

ABB PM876-1 3BDH000707R1 | 2× DPV2, Ethernet Controller

Description

Product Overview

The ABB PM876-1 3BDH000707R1 is a process controller associated with ABB’s Melody automation platform and AC 870P cabinet architecture. ABB’s product catalog identifies the PM 876-1 specifically as a controller intended as a replacement for CMC 50 and CMC 60 controllers. Its communication architecture includes one Onet connection, one redundant Cnet connection, two redundant Fnet interfaces operating at 375 kBd, two DPV2 interfaces, and an Ethernet interface. This combination makes the controller a central processing and communication component rather than a simple PLC CPU.

For ABB PM876-1 3BDH000707R1, the surrounding system architecture matters. ABB documentation for System 800xA for Melody identifies PM876 and PM876-1 among the controller types that can be connected redundantly, which is particularly relevant in process installations where controller availability is part of the control-system design. The module is also associated with Melody CSV 6.0 or later in available product documentation.

The ABB PM876-1 3BDH000707R1 should therefore be evaluated as a system-specific controller replacement. Firmware and configuration compatibility deserve more attention than the physical condition of the hardware alone. A replacement project should confirm the existing Melody release, controller redundancy arrangement, communication interfaces in use, and application configuration before commissioning.

For legacy plants, the PM876-1 can be valuable precisely because it allows the existing Melody/AC 870P control architecture to remain in service rather than forcing an immediate migration to a completely different controller platform.

Product Introduction

When an older CMC controller reaches the end of its service life, the difficult part is usually preserving the existing control architecture rather than installing another processor. PM876-1 was specifically cataloged as a replacement for CMC 50 and CMC 60 controllers and provides multiple redundant communication paths for Melody systems.

For an ABB Melody DCS system upgrade or legacy controller replacement, verify the system release and firmware before transferring the applic. can also participate in redundant controller arrangements documented for 800xA for Melody.

Key Technical Specifications

The interface configuration is supported by ABB catalog references and product documentation.

Related Products

• CMC 50 — Earlier Melody controllet was designed to replace. Existing CMC 50 installations are a primary legacy-replacement scenario.
• CMC 60 — Another predecessor specifically identified in the ABB cataloa replacement target. Firmware and application migration should still be reviewed before commissioning.
• PM875 — Related Melody controller in the same broader controller family. It can be relevant when assessing an existing Melody architecture, although its exact capabilities and configuration should not be assumed identio .
• — Closely related controller model. It is listed by ABB aloe in the controller redundancy architecture for 800xA for Melody.
• PM877 — Higher-level related Melody controller identified in ABB’s redundancy architecture. It may be considered where a system migration or controller-capacity change is being evaluated.
• PH 895 — Standard rack associated with Melody / AC 870P cabinets. Mechanical and electrical compatibility should be verified when replacing or rebuila installation.
• CI920AN — PROFIBUS DP-V1 communication interface used in compatible Melody architectures. Redundant installations require matching firmware versions on paired communication interfaces according to ABB catalog information.
• CI920AB — Related PROFIBUS DP-V1 communication interface variant for the CIPBA-B configuration. It serves a communication role rather than replacie controller itself.

PM876-1 3BDH000707R1

Frequently Asked Questions

What B 3BDH000707R1 used for?

The is a Melody process controller used as a central control and communication element in ABB Melody/AC 870P systems.

Its documented interfaces include:

• 1 × Onet
• 1 × redundant Cnet
• 2 × redundant Fnet
• 2 × DPV2
• 1 × Ethernet

ABB also identifies it as a replacement for CMC 50 and CMC 60 controllers.

n replace a CMC 50 or CMC 60?

That is one of its intended applications.

ABB’s catalog specifically describes 3BDH000707R1 PM 876-1 as a controller for replacement of CMC 50 and CMC 60.

The practical limitation is configuration compatibility. Before replacement, compare:

1. Melody system release.
2. Controller firmware.
3. Application configuration.
4. Redundancy arrangement.
5. Fnet/Cnet configuration.
6. DPV2 interfaces.
7. Existing cabinet and rack hardware.

A catalog-number match does not automatically migrate the application database.

Cane in a redundant controller configuration?

Yes. ABB’s System 800xA for Melody documentation states that CMC70, PM, , and PM877 can be directly connected in a redundant configuration.

For an operating plant, the redundancy test should include controlled controller switchover rather than stopping after confirming that both controllers show healthy status.

s support DPV2?

Yes. The docud interface configuration includes two interfaces.

When replacing a controller in a live installation, check whether the existing application actually uses those interfaces and verify the corresponding fieldbus configuration.

What firmware versios require?

There is no single firmware version that should be assumed for every insd .

Available documentation associates the controller with Melody CSV 6.0 or later, while firmware compatibility depends on the installed system release and controller configuration.

For a replacement, record the firmware from the existing controller before ordering or installing the spare. Matching the hardware number while ignoring firmware can create unnecessary commissioning work.

Will I lose my Melody control logic when repg ?

The replacement hardware does not automatically contain the complete application configuration from the failed controller.

Before removing the original unit, preserve:

• Application configuration
• Controller parameters
• Firmware information
• Communication settings
• Redundancy configuration
• I/O assignments
• Network parameters
• Engineering workstation project files

If the existing controller remains operational, obtain a verified backup before performing the hardware replacement.

Can I hot-swe ?

Do not assumt can be removed from an energized cabinet simply because the overall system supports controller redundancy.

A redundant architecture can reduce process interruption during controller maintenance, but the physical replacement procedure depends on the cabinet, rack, redundancy state, and approved ABB maintenance procedure. For a live plant, follow the site’s approved maintenance sequence and verify that the redundant controller has actually reached the required operational state before disturbing the primary.

How should a New Ss be tested?

A proper acceptance test should verify both the controller hardware and its communication behavior.

Recommended procedure:

1. Confirm / 3BDH000707R1 markings.
2. Record hardware revision and firmware version.
3. Inspect connectors and board condition.
4. Install the controller in a compatible Melody/AC 870P test environment.
5. Verify controller startup and diagnostics.
6. Confirm Onet/Cnet communication.
7. Test Fnet interfaces at the applicable 375 kBd configuration.
8. Verify communication where required.
9. Check Ethernet service communication.
10. Load a controlled test configuration.
11. Test controller redundancy if the application requires it.
12. Perform a controlled switchover.
13. Verify process values and communication recovery.
14. Record firmware, diagnostics, and test results.

Procurement note: for 3BDH000707R1, the critical checks are firmware, Melody release, redundancy configuration, and communication-interface compatibility. Physical condition alone is not enough to establish that a surplus controller is ready for a plant installation.
