Description

Product Overview

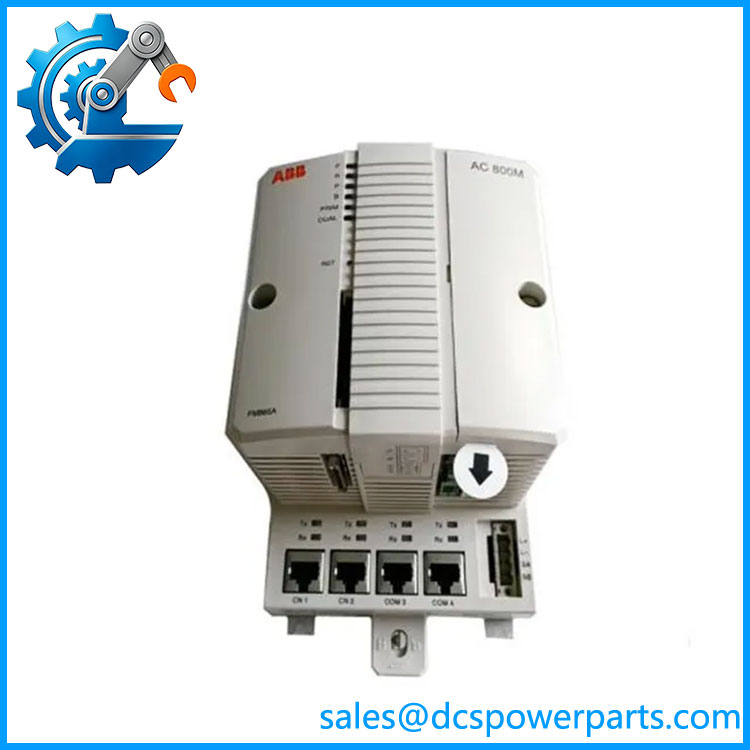

The ABB PM866AK01 3BSE076939R1 is an AC 800M Processor Unit package designed for ABB industrial control systems, including System 800xA and Advant Master-based automation architectures. It functions as the central processing unit of an AC 800M controller, executing application programs, managing communication tasks, and coordinating connected I/O and field communication modules. The package includes the PM866A CPU, TP830 baseplate, required bus terminators, and memory backup battery.

The ABB PM866AK01 combines a 133 MHz MPC866 processor with 64 MB memory and is designed for process-control applications requiring deterministic execution, modular expansion, and integration with ABB’s automation ecosystem. The controller supports ABB Control Builder configuration, CEX-Bus communication modules, ModuleBus-based S800 I/O, and industrial communication interfaces such as Ethernet and PROFIBUS DP through compatible expansion modules.

The ABB PM866AK01 3BSE076939R1 provides two Ethernet ports for Control Network communication and two RS-232C serial interfaces. One serial port supports modem-control signals, while the isolated service port is intended for configuration-tool connection. The controller architecture supports modular system expansion and can be configured for CPU redundancy when used with suitable hardware arrangements, although this specific ordering code is listed as a non-redundant package.

For maintenance applications, the PM866AK01 should be evaluated as a complete controller package rather than only as a CPU board. Replacement compatibility depends on the installed AC 800M firmware version, Control Builder project configuration, communication modules, CEX-Bus setup, and connected S800 I/O architecture.

Technical Specifications

Specifications are based on ABB product documentation for PM866AK01 3BSE076939R1.

PM866AK01 3BSE076939R1

Main Features and Advantages

AC 800M Central Processing Platform

The main function of the is to provide the processing core for AC 800M control applications. It executes control logic, sequence programs, regulatory functions, communication tasks, and diagnostic operations configured through ABB Control Builder.

The controller supports up to 32 applications, with multiple programs and tasks available within each application environment. Application cycle times can be configured down to approximately 1 ms depending on program size and system loading.

Modular System Expansion

The is designed around ABB’s modular AC 800M architecture. Expansion capability includes:

• S800 I/O through ModuleBus
• Communication modules through CEX-Bus
• PROFIBUS DP interfaces
• Additional industrial communication modules

The CEX-Bus supports multiple communication modules, allowing engineers to expand controller functionality without replacing the processor platform.

Ethernet Control Network Communication

The controller includes two built-in Ethernet ports for connection to the ABB Control Network. These interfaces support communication with System 800xA supervisory systems, engineering stations, and other AC 800M controllers.

The dual Ethernet design allows flexible network configurations, including communication redundancy when supported by the overall system design.

Integrated Diagnostics

The CPU board includes:

• LED status indicators
• INIT push button
• Real-time clock
• CompactFlash interface

These functions support commissioning, troubleshooting, and maintenance activities in installed control systems.

AC 800M Compatibility

The is widely used in ABB process-control applications where long lifecycle support and compatibility with existing System 800xA projects are important. Typical applications include:

• Power generation
• Oil and gas processing
• Chemical plants
• Water treatment
• Industrial manufacturing

The controller’s suitability depends heavily on the installed Control Builder project, firmware revision, and connected hardware modules.

Replacement and Lifecycle Considerations

When replacing an existing ABB PM866AK01 3BSE076939R1, verify:

1. CPU model and article number
2. Firmware revision
3. Control Builder project version
4. System 800xA version
5. CEX-Bus modules
6. S800 I/O configuration
7. Ethernet configuration
8. Controller licenses
9. Backup battery condition
10. Application download procedure

A replacement PM866AK01 is not simply a hardware swap. The controller must match the engineering environment and application database to avoid communication or configuration issues.
