Description
ABB PM510V08 3BSE008373R1 Processor Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | PM510V08 |
| Correct Product ID | 3BSE008373R1 |
| Product Type | Central Unit |
| Product Description | Processor Module |
| System Family | Advant Controller 450 / 450RMC / 460 |
| Processor Function | Central control-system processing |
| Memory Modules | 2 × SIMM, 3BSC120004R2 |
| Exchange Number | EXC3BSE008373R1 |
| Dimensions | 291 × 300 × 30 mm |
| Net Weight | Approx. 0.87 kg |
| Marine-Coated Version | PM510MV08 |
| Customs Tariff Number | 85389091 |
ABB’s product data identifies as a processor module and classifies it as a Central Unit. The ABB product record also specifies the included SIMM memory modules, 3BSC120004R2, and identifies PM510MV08 as the coated marine-classified version.
Product Introduction
The ABB 3BSE008373R1 is a processor module for the legacy ABB Advant Controller platform. ABB’s current product information places among the processor hardware associated with Advant Controller 450, Advant Controller 450RMC, and Advant Controller 460 systems. It serves as central processing hardware within the controller architecture rather than functioning as a standalone I/O or communication interface.
The ABB 3BSE008373R1 is particularly relevant when maintaining installed Advant systems where a controller processor has failed or an existing spare has been consumed. ABB documentation identifies the module as including two SIMM memory modules, while the exchange designation is EXC3BSE008373R1. The marine-classified counterpart is identified as PM510MV08, so the standard and marine versions should not be treated as automatically interchangeable without checking the original system configuration.

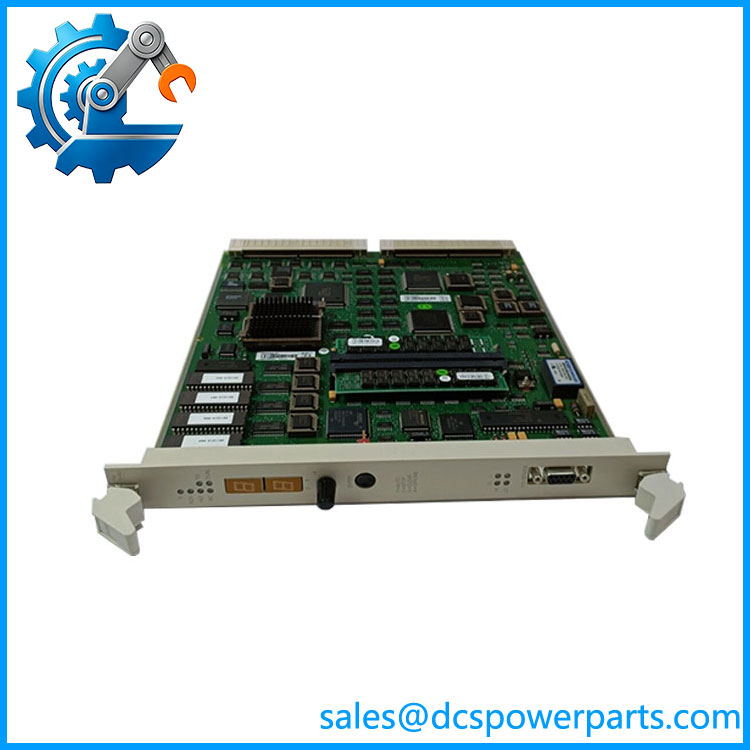

PM510V08 3BSE00B373R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A processor failure in an older Advant controller is rarely just a matter of replacing a PCB. The processor module contains the controller’s central computing hardware and works within a specific Advant rack, memory, firmware, and system configuration. A replacement that has the correct PM510 designation but an incompatible hardware or software state can create a second commissioning problem after the physical fault has been removed.
Typical Applications
- Advant Controller 450 systems — central processing within the legacy controller architecture.
- Advant Controller 450RMC installations — processor hardware for supported controller configurations.
- Advant Controller 460 systems — central controller processing.
- Legacy ABB DCS maintenance — replacement or exchange of failed processor hardware.
Technical Pitfalls
1. Correct the part number before procurement.
The official ABB identification is 3BSE008373R1. The supplied 3BSE00B373R1 appears in search indexes as a common typo, but it should not be used as the primary purchasing reference.
2. Do not confuse with AC 800M CPUs.
Some secondary listings incorrectly place into the AC 800M/S800 controller family and assign it specifications such as Ethernet, RS-485, or 2 MB/1 MB memory. Those claims conflict with ABB’s identification of as an Advant Controller processor. The host controller family should be verified before accepting such specifications.
3. Memory configuration matters.
ABB’s product data states that the processor module includes two SIMM memory modules, 3BSC120004R2. When evaluating used or repaired stock, verify that the expected memory modules are actually installed and match the required system configuration.
4. Firmware and configuration should be checked.
A processor board is not equivalent to a blank replacement PCB. The installed controller application, software revision, configuration and retained data should be considered before removing the original module. Where possible, capture the existing system configuration before replacement.
5. Check the exact controller model.
ABB’s current documentation groups with the Advant Controller 450, 450RMC and 460 families. Do not assume that every PM510-family processor is interchangeable across all Advant controller variants.
6. Standard and marine versions are different procurement items.
ABB identifies PM510MV08 as the coated marine-classified counterpart. If the existing installation requires the marine version, a standard should not automatically be substituted merely because the processor designation is similar.
7. Inspect used inventory before installation.
For legacy processor modules, inspect the backplane connector, SIMM sockets, memory modules, PCB condition, labels and evidence of corrosion or thermal stress. If the unit is supplied as an exchange module, verify whether the exchange arrangement requires return of the failed unit; ABB documentation identifies EXC3BSE008373R1 as the exchange number.
Related Products
- ABB 3BSE008373R1 — processor module for Advant Controller 450/450RMC/460.
- ABB PM510MV08 — coated marine-classified version of the processor family.
- ABB PM510V16 — later/different PM510 processor configuration; verify controller compatibility.
- ABB PM511V08 — related Advant processor family with different hardware configuration.
- ABB PM511V16 — higher-version PM511 processor configuration; not an automatic PM510 substitute.
- ABB PM511MV08 — marine-classified PM511 processor variant.
- ABB SC510 3BSE003832R1 — Advant submodule carrier without CPU.
- ABB SC520 3BSE003816R1 — Advant submodule carrier including local CPU.
- ABB RF533 3BSE014227R1 — Advant Controller 450 subrack/backplane assembly.
- ABB CI543 3BSE010699R1 — GCOM communication interface used with the Advant controller architecture.
Procurement Note
For purchasing, specify ABB — 3BSE008373R1 and explicitly flag 3BSE00B373R1 as a possible transcription variant rather than relying on it as the official product ID. For a used or exchange unit, request the processor label, memory-module details, PCB revision, and evidence of functional testing. If the installation is marine-classified, verify whether is required instead.
