Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | PFSK151 |
| Order Number | 3BSE018876R1 |
| Product Type | DSP Signal Processing Module |
| Product Family | Stressometer Force Measurement System |
| Main Application | Tension measurement and flatness control |
| Sensor Compatibility | ABB Pressductor® load cells |
| Input Signal | Low-level AC force measurement signal |
| Sensor Excitation | Integrated sensor excitation supply |
| Power Supply | 24VDC |
| Signal Processing | Digital signal processing (DSP) |
| Output Data | Processed force/tension measurement values |
| Mounting | ABB industrial rack/subrack installation |
| Operating Temperature | 0°C to +55°C typical |
| Dimensions | Approx. 73 × 233 × 212mm |
| Weight | Approx. 3.1kg |
Product Introduction
ABB PFSK151 3BSE018876R1 Overview

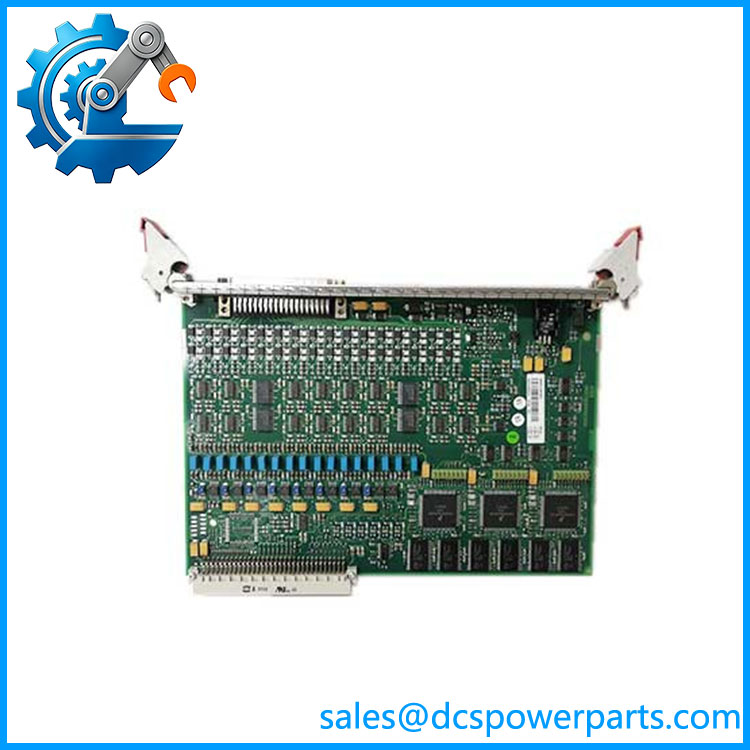

The ABB PFSK151 3BSE018876R1 is a specialized DSP signal processing module used in ABB Stressometer force measurement systems. It receives signals from Pressductor® load cells, performs signal conditioning and digital processing, and provides measurement data required for tension and flatness control applications.
The ABB PFSK151 3BSE018876R1 is mainly installed in demanding industrial processes such as rolling mills and continuous production lines where accurate force measurement directly affects product quality. It is not a general-purpose analog input module; it is designed specifically around ABB force measurement technology.
PFSK151 3BSE018876R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A steel strip line starts showing unstable tension values during high-speed operation. Operators adjust the process, but the measurement drift continues. The first suspicion is usually the sensor. In many cases, the actual issue is the signal processing chain.
The PFSK151 sits between the Pressductor sensor and the control system. A damaged sensor cable, incorrect excitation circuit, grounding problem, or aging processing module can create inaccurate force feedback and affect the entire control loop.
Typical Applications
- Steel Rolling Mills – Strip tension measurement and flatness control between mill stands.
- Metal Processing Lines – Force monitoring for continuous sheet and coil processing equipment.
- Paper Manufacturing – Web tension measurement and control in high-speed paper machines.
- Industrial Converting Equipment – Tension regulation for film, foil, and material handling systems.
Technical Pitfalls to Avoid
- Verify Sensor Compatibility
The PFSK151 is designed for ABB Pressductor® force sensors. Do not substitute standard strain gauge load cells without confirming system compatibility.
- Inspect Sensor Cabling
Low-level measurement signals are sensitive to cable damage and electrical noise. Check shielding, grounding, and cable routing before replacing the module.
- Confirm Calibration Data
Force measurement systems depend on calibration parameters. A replacement board may require restoration of system settings before accurate measurement returns.
Related Products
- ABB PFSK152
Related force measurement processing module in the Stressometer family. Used for similar measurement applications with different system configurations. - ABB PFTL101 Series Load Cells
Pressductor® force sensors commonly paired with modules for rolling mill tension measurement. - ABB PFCL201 Series Load Cells
Force measurement sensors used in ABB Stressometer systems for different mechanical installation requirements. - ABB Stressometer 6.0 System
Flatness measurement and tension control platform where modules are commonly installed. - ABB Stressometer 7.0 System
Later-generation flatness measurement architecture using ABB force measurement technology. - ABB CI522A Communication Interface Module
ABB communication module used in various automation architectures for connecting field measurement data to control systems. - ABB Advant Controller 450 (AC450)
Legacy ABB controller platform frequently found in older industrial measurement and process control installations. - ABB System 800xA
Modern ABB automation platform used in migration projects involving older Advant and Stressometer-based systems.
