Description
Product Introduction
The ABB PFSA140RULLM7A 3BSE006503R1 is a PFSA 140 Roll Supply Unit used within ABB’s force/flatness measurement product ecosystem. The official-looking ABB product data reproduced in a current technical document places the PFSA 140 within ABB’s FSA measurement portfolio, including Flatness Measurement Systems. It specifies the unit as a roll-supply device rather than a conventional PLC power supply or S800 I/O module.
This distinction is important because several secondary sellers incorrectly describe PFSA140 3BSE006503R1 as a 24 VDC automation power supply, fieldbus power module, or AC 800M power unit. Those descriptions conflict with the more specific ABB product information, which identifies the product as a Roll Supply Unit and gives 2 kHz, max. 1 kW as its technical output.
The PFSA 140 belongs to an ABB measurement-system architecture used in applications involving web/strip processing and flatness measurement. It should therefore be evaluated as a specialized motion/material-supply component rather than as a generic DCS power module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PFSA140RULLM7A |
| ABB Type Designation | PFSA 140 |
| Product ID | 3BSE006503R1 |
| Product Type | Roll Supply Unit |
| Product Family | ABB FSA / Flatness Measurement Systems |
| Output Frequency | 2 kHz |
| Maximum Output Power | 1 kW |
| Output Current | 2 × 2 × 1.2 A, constant current |
| Product Net/Gross Weight | 23.3 kg reported |
| Application | Roll/web material handling and measurement systems |
| System Type | Industrial force/flatness measurement |
| Mounting | System-dependent |
| Input Voltage | Verify exact unit documentation |
| Operating Temperature | Verify exact installation documentation |
The 2 kHz / 1 kW and 2 × 2 × 1.2 A constant-current specifications are directly reflected in the available ABB product-data record.
Main Features and Engineering Considerations
Roll Supply Function
The principal function of the PFSA140RULLM7A is controlled roll/material supply within ABB’s measurement-system architecture. It is therefore associated with applications where material movement must be coordinated with force and flatness measurement.
FSA System Integration
ABB’s product classification places PFSA 140 under the FSA measurement family, including Flatness Measurement Systems. This is a more useful system-level identification than the generic descriptions found on some automation reseller pages.

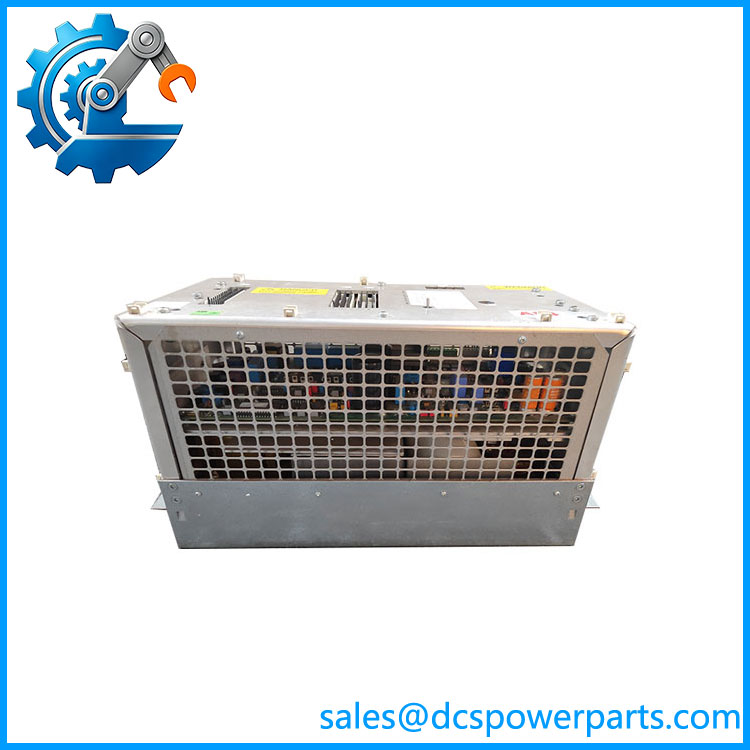

PFSA140RULLM7A 3BSE006503R1
1 kW Output Capability
The documented maximum output is 1 kW, with a reported output frequency of 2 kHz. These figures should be considered important when checking whether a replacement matches the original mechanical/electrical installation.
Heavy Industrial Hardware
The reported package weight of approximately 23.3 kg indicates that this is not a small plug-in PLC module. Mechanical handling, mounting, cooling, cabling, and enclosure requirements should be checked during replacement work.
Application Scenarios
The ABB PFSA140RULLM7A 3BSE006503R1 is relevant to:
- Flatness measurement systems
- Strip and web processing lines
- Roll-to-roll production equipment
- Metal-processing lines
- Paper and film processing
- Industrial tension/force measurement systems
- ABB FSA measurement installations
- Legacy ABB measurement-system maintenance
Be cautious with generic descriptions that place the PFSA140 in AC 800M or Freelance DCS power-supply applications. The available ABB product data specifically identifies PFSA 140 as a Roll Supply Unit.
Engineer’s Guide: Field Pitfalls
⚠️ Do not buy PFSA140 as a generic 24 VDC power supply.
Several secondary listings incorrectly classify 3BSE006503R1 as a power-supply module. The stronger product-specific evidence identifies it as a Roll Supply Unit.
⚠️ Verify the complete designation.
Use:
PFSA140RULLM7A
3BSE006503R1
rather than searching only for “PFSA140.”
⚠️ Confirm the system application.
The correct replacement should be matched to the existing ABB FSA/flatness measurement architecture, not simply to a physical connector or cabinet location.
⚠️ Check the output specification.
The documented 2 kHz / 1 kW output and constant-current specification should be checked against the installed system before replacement.
⚠️ Test under actual load conditions.
For a used or refurbished unit, a simple power-on test is not sufficient. The output frequency, current regulation, load behavior, thermal performance, and associated control interfaces should be tested.
Frequently Asked Questions
What is ABB PFSA140RULLM7A?
It is an ABB PFSA 140 Roll Supply Unit, identified by product ID 3BSE006503R1.
Is PFSA140 a PLC power supply?
No. Despite some reseller listings describing it as a power-supply module, the available ABB product data identifies it as a Roll Supply Unit used within the FSA measurement product family.
What is the output rating?
The available ABB data specifies 2 kHz, maximum 1 kW, with 2 × 2 × 1.2 A constant-current output information.
What is 3BSE006503R1?
It is the ABB product ID associated with PFSA 140.
What should be verified before purchasing?
- 3BSE006503R1
- Complete nameplate
- FSA system type
- Output configuration
- 1 kW maximum output requirement
- 2 kHz operating requirement
- Mechanical installation
- Cable/connector arrangement
- Functional load-test report
Procurement note: This is one of those ABB parts where the catalog description matters. I would classify 3BSE006503R1 as a Roll Supply Unit, not as a generic DCS power supply, unless the actual nameplate and system documentation prove otherwise.
