Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PFEA112-65 |
| Ordering Number | 3BSE050091R65 |
| Product Type | Tension Electronics |
| Series | PFEA112 |
| Primary Function | Tension measurement and control |
| Measurement Input | Load-cell / tension sensor |
| Typical Process | Web and strip handling |
| Display | Integrated operator display |
| Control | Closed-loop tension control |
| Mounting | Control cabinet / panel |
| Power Supply | Application-dependent; verify exact hardware documentation |
| Communication | Drive/control-system dependent |
| Application | Industrial web-processing machinery |
ABB’s PFEA110 family is designed for tension measurement and control in applications using load cells. The exact electrical configuration should be confirmed against the PFEA112-65 documentation before installation.
Product Introduction
The ABB PFEA112-65 3BSE050091R65 is an industrial tension electronics unit designed to measure and control material tension in continuous web and strip-processing applications. It belongs to ABB’s PFEA110-series tension-control platform, which is used where stable material tension is important for product quality, machine synchronization, and reliable web handling.
The ABB PFEA112-65 receives measurement information from load cells or tension sensors installed in the machine. The electronics process the feedback signal and provide the tension information required by the control system. Depending on the machine architecture, the measured tension can be used for closed-loop control of drives, brakes, clutches, or other tension-producing equipment.
The ABB 3BSE050091R65 is particularly relevant to applications where material travels continuously through several processing stages. Typical examples include paper and film converting, printing, coating, slitting, foil processing, wire and cable handling, and metal strip lines. Maintaining the correct tension helps prevent wrinkles, material breaks, telescoping rolls, dimensional errors, and inconsistent processing.
The PFEA112 family is not a generic analog input device. Load-cell characteristics, mechanical installation, signal calibration, tension range, and control-loop configuration all influence the final measurement. Consequently, replacing a PFEA112-65 should include verification of the connected load cells and existing machine parameters.

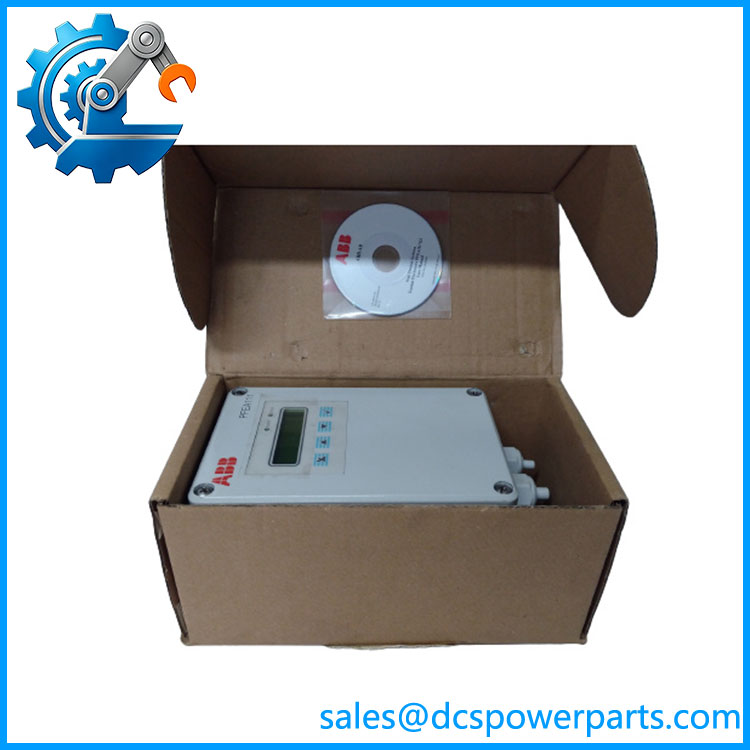

PFEA112-65 3BSE050091R65
Main Features & Field Considerations
Tension measurement
The -65 is designed specifically for tension measurement rather than general-purpose process input. Its measurement chain is built around tension/load-cell feedback.
Closed-loop tension control
The tension measurement can be incorporated into a machine control loop. This allows drive or braking equipment to respond to changes in actual material tension.
Web and strip processing
The unit is suited to continuous-material applications where tension consistency directly affects production quality.
Load-cell compatibility
The load cell is a critical part of the measurement A replacement will not automatically correct an incorrect load-cell installation, damaged cable, poor mechanical alignment, or incorrect calibration.
Replacement checks
Before replacing an BB 3BSE050091R65, verify:
- Complete ordering number
- model
- Load-cell type and rating
- Number of connected load cells
- Sensor wiring and shielding
- Existing calibration values
- Tension range
- Machine configuration
- Drive/control interface
- Firmware and parameter settings
Troubleshooting
If the displayed tension is incorrect, check the entire measurement chain:
- Load-cell mechanical installation
- Load-cell wiring
- Excitation/sensor supply
- Zero offset
- Calibration
- Tension scaling
- input circuitry
- Drive/control-loop parameters
A failed load cell or incorrect mechanical installation can produce symptoms that initially look like a electronics fault.
Typical Applications
The is applicable to continuous-material processing such as:
- Paper and pulp converting
- Printing presses
- Film and plastic processing
- Foil handling
- Slitting and rewinding
- Wire and cable production
- Steel strip processing
- Textile and web handling
- Coating and laminating equipment
Procurement Note
For BB 3BSE050091R65, the complete ordering number should be used when sourcing a replacement. This is a dedicated tension-control component, so compatibility should be checked against the load-cell configuration, machine tension range, control architecture, and existing parameters, not just the physical module.
If the original unit is still available, record its calibration and configuration values before replacement. That information can save significant commissioning time when returning a legacy web-processing line to service.
