Description

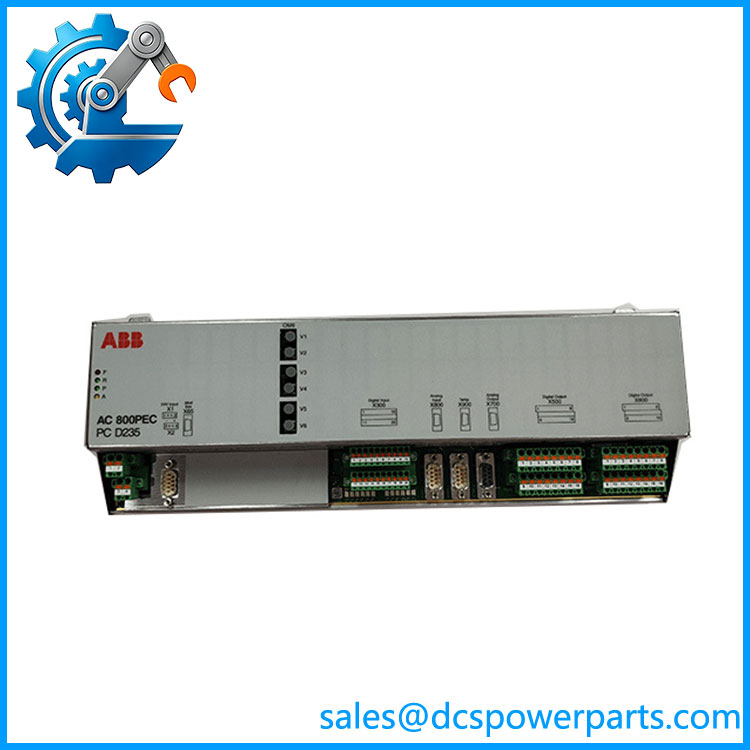

ABB PCD235C101 3BHE057901R0101 Exciter Control Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PCD235C101 |
| Part Number | 3BHE057901R0101 |
| Product Type | Exciter Control Module |
| Control Platform | ABB AC 800PEC |
| Primary Application | Generator / motor excitation control |
| Control Architecture | Digital, high-speed power-electronics control |
| Typical System Application | Static excitation and generator control |
| Communication | AC 800PEC platform supports multiple communication options; exact interfaces require configuration verification |
| I/O | Configuration-dependent; do not assume reseller-published channel counts |
| Firmware | Verify against installed AC 800PEC/excitation-system configuration |
| Hardware Revision | Verify from module label before replacement |
The is consistently identified in available industrial references as an ABB exciter control module associated with the AC 800PEC family. It is intended for excitation-control applications rather than conventional PLC rack I/O.
The broader AC 800PEC platform is designed for high-speed control of power-electronics and electrical processes. ABB-related technical material describes applications including generator excitation, power conversion, rectifiers, drives, and demanding industrial control, with optical Powerlink connections, S800 ModuleBus, Ethernet, CEX/AnyIO expansion, and other interfaces available depending on system configuration. These are platform-level capabilities and should not automatically be assigned to every installation.
Product Introduction
The ABB 3BHE057901R0101 is a digital excitation-control component used within ABB AC 800PEC-based control architectures. Its role is associated with regulating and supervising excitation functions in systems where synchronous generators or motors require controlled field excitation. The module belongs to the control layer of the excitation system rather than the high-power rectifier stage itself.
For plant maintenance, the should be treated as part of a complete excitation-control assembly. The exact function implemented by a particular unit depends on the surrounding AC 800PEC hardware, firmware, I/O modules, power electronics, control configuration, and application software. Available secondary sources agree on the exciter-control classification but provide conflicting detailed electrical specifications, so the physical nameplate and original system documentation should take precedence.
PCD235C101 3BHE057901R0101
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
Excitation-system failures are particularly sensitive to component compatibility. A replacement control module can power up correctly while still being unsuitable because its firmware, application configuration, hardware revision, or surrounding controller architecture does not match the original system.
Typical Applications
- Generator Excitation Systems: Digital control of excitation functions for synchronous generators.
- Static Excitation: Control of semiconductor-based excitation systems and associated power-conversion hardware.
- Synchronous Motor Excitation: Applicable to systems requiring controlled excitation of large synchronous motors.
- Power Electronics: AC 800PEC-based high-speed control applications involving rectifiers, converters, and electrical power-processing equipment.
- Power Generation Modernization: Replacement of failed or aging control electronics while retaining the existing excitation architecture.
Technical Pitfalls
- Do not classify it as a generic PLC CPU. The is specifically associated with excitation control and AC 800PEC applications.
- Do not assume fixed I/O specifications. Some secondary listings publish 16 digital inputs, 12 relay outputs, four analog inputs, and four analog outputs, but these figures are not sufficiently supported by authoritative documentation for this exact part.
- Do not assign every AC 800PEC interface to this module. Ethernet, Powerlink, CEX, AnyIO, optical ModuleBus, CANopen, and other interfaces are capabilities of the AC 800PEC platform or specific configurations. The actual interfaces on a installation must be verified.
- Check the complete excitation system. Record the controller rack, power converter/rectifier arrangement, associated I/O, optical connections, and redundant-controller architecture before approving a spare.
- Firmware and application configuration matter. A replacement board may require the correct application software and configuration data. Do not treat a bare hardware swap as automatically commissioning-ready.
- Check redundancy architecture. Some AC 800PEC excitation systems use redundant control subsystems. The replacement must correspond to the role of the failed controller and the installed redundancy arrangement.
- Inspect optical connections carefully. AC 800PEC systems can use optical links for power-electronics and I/O communication. Damaged or contaminated optical connections can produce symptoms that appear to be controller failures.
- Verify the excitation loop after replacement. Check controller diagnostics, field-current feedback, voltage regulation, limiters, protection functions, firing/control signals, and generator response before returning the excitation system to normal operation.
Related Products
- ABB PPD517A3011 3BHE041576R3011 — AC 800PEC-based excitation/control processor; verify application and hardware configuration before considering substitution.
- ABB PPD513AOC-100440 3BHE039724R0C3D — AC 800PEC control hardware associated with high-speed excitation and power-electronics applications.
- ABB PCD235B101 3BHE032025R0101 — Related PCD235 excitation-controller designation; complete part number must be matched.
- ABB UNITROL 1010 — Compact automatic voltage regulator for synchronous-machine excitation; a different product architecture from AC 800PEC.
- ABB UNITROL 1020 — Higher-capability UNITROL 1000-series AVR configuration.
- ABB UAD149A1501 3BHE014135R1501 — ABB control hardware used in power-electronics/excitation applications; verify host-system compatibility.
- ABB UAD149A0001 3BHE014135R0001 — Related ABB power-electronics control hardware.
- ABB AC 800PEC — High-speed modular control platform used in excitation, drives, power conversion, and industrial process applications.
The and PPD-series hardware should not be assumed interchangeable simply because both appear in AC 800PEC excitation-system documentation. Their application role and complete hardware configuration must be matched to the original system.
Procurement Note
For ABB 3BHE057901R0101, the procurement specification should include the complete part number, PCB/hardware revision, serial number, host AC 800PEC controller configuration, excitation-system model, firmware/application revision, and photographs of the module label and connectors.
This is particularly important because public listings contain contradictory specifications for this part. A supplier description calling it a generic PLC module or assigning fixed I/O and communication characteristics is not sufficient evidence for replacement. For an operating generator excitation system, verify the replacement against the original engineering configuration and perform controlled excitation, protection, and feedback testing before returning the system to service.
