Description

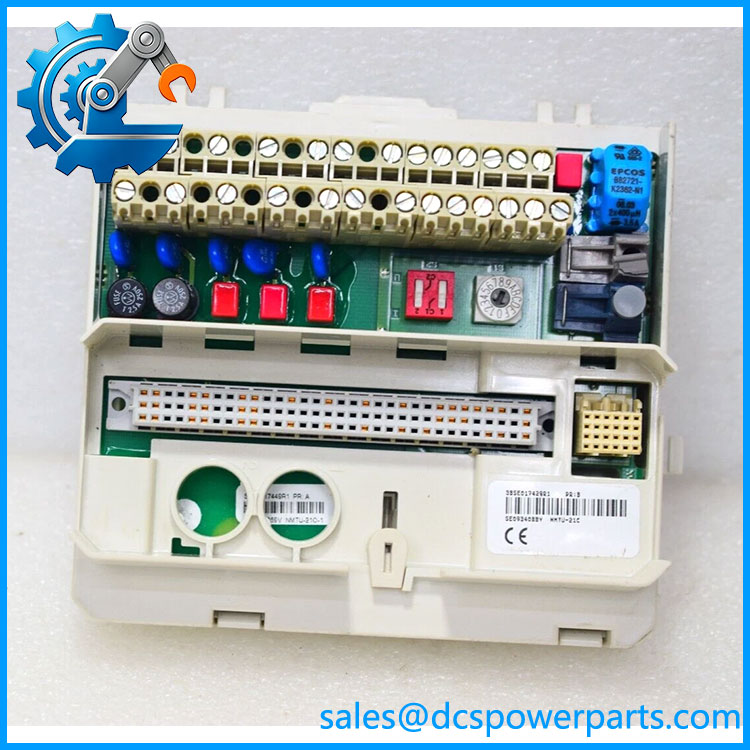

ABB NMTU-21C 3BSE017429R1 Termination / Protection Unit
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | NMTU-21C |
| Ordering Number | 3BSE017429R1 |
| Product Type | Termination / Protection Unit |
| System Role | Drive-related interface/protection hardware |
| Application | ABB legacy drive and power-control systems |
| Protection Function | DC-output voltage protection in documented field-exciter architecture |
| Country of Origin | Sweden, according to secondary inventory records |
| Approx. Weight | 0.35–0.4 kg, depending on published reference |
| Status | Legacy / spare-part hardware |
The identification of / 3BSE017429R1 is supported across multiple industrial inventory records, but the published functional descriptions are not consistent. One source identifies it as a termination unit, while another reference specifically associates with ABB field-exciter circuitry where a MOV protects the DC output against voltage surges originating from a DC machine field winding.
For this reason, exact electrical ratings, channel count, communication protocol, DIN-rail dimensions, and temperature-measurement functions should not be treated as verified specifications without the applicable ABB manual or the installed assembly documentation.
Product Introduction
The ABB 3BSE017429R1 is legacy ABB hardware used in drive and power-control environments. Available technical references associate the unit with termination and protection functions rather than with PLC processing or conventional process I/O. In ABB field-exciter documentation referenced by secondary sources, is associated with protection of the DC output against voltage effects generated by a DC machine field winding.
That distinction matters during maintenance. The should not be purchased simply because an inventory listing describes it as a “digital output module” or “temperature module.” Those descriptions are inconsistent across reseller databases and are not sufficient to establish the actual system function.
NMTU-21C
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a legacy ABB drive or field-excitation system develops an intermittent DC-side fault, engineers can easily focus on the converter, thyristor stack, control board, or field winding while overlooking the associated protection and termination hardware.
The ABB 3BSE017429R1 becomes relevant when the installed equipment documentation identifies this part as part of the power-interface or protection arrangement. A replacement should therefore be evaluated as part of the complete drive/power circuit rather than as an isolated automation module.
Typical Applications
1. ABB Drive Maintenance
can be relevant to maintenance of legacy ABB drive assemblies where the original hardware architecture calls for this termination/protection component.
2. DC Field-Excitation Systems
A secondary technical reference associates with ABB DCF803/DCF804 field-exciter arrangements. In that architecture, the DC output is subject to voltage surges from the field winding, and a MOV is used for protection.
3. Legacy Power-Control Cabinets
The part may be encountered in older ABB power-electronics cabinets where dedicated interface and protection hardware is no longer readily available through normal current-product channels.
4. Spare-Part Replacement
For an existing installation, an exact replacement can be preferable to substituting a generic protection component, provided the original circuit and part designation have been confirmed.
Technical Pitfalls
Do not classify it as a generic digital output module.
Several reseller databases label as a digital output module, but other references identify it as a termination unit. There is no adequate evidence to support a conventional PLC DO specification such as a fixed channel count or output voltage.
Do not use unsupported temperature-module specifications.
Some listings describe as a thermistor or thermal-resistance module and provide Pt100/Pt50 measurement claims. These specifications are inconsistent with the termination/protection identification and should not be used for procurement without the original ABB documentation.
Verify the host drive or exciter.
The strongest technical context available associates with ABB drive/field-excitation hardware. Confirm the exact cabinet, converter, exciter, and neighboring components before ordering a replacement.
Inspect the DC power circuit.
If the is involved in a DC-output protection circuit, repeated component failure may indicate excessive voltage transients, a field-winding problem, converter commutation issues, or a defective protection component elsewhere in the circuit. Replacing the unit without investigating the initiating fault can result in another failure.
Do not assume generic electrical ratings.
One inventory source publishes a 12 VAC input and 2.8 A overload value, but this information is not corroborated by stronger technical documentation and should not be treated as an authoritative specification.
Match the complete ordering number.
Use , 3BSE017429R1 together when sourcing the spare. Similar ABB “NMT/NM” family designations can refer to completely different functions.
Check physical condition carefully on used units.
For a protection or termination component, inspect terminals, connectors, PCB condition, signs of heat exposure, MOV/protection components, and any evidence of previous surge damage.
Related Products
- ABB 3BSE017429R1 — Termination/protection hardware requiring exact system verification.
- ABB SDCS-FEX-81 — Control unit used in ABB full-controlled field-exciter arrangements; functionally different from .
- ABB SDCS-FEX-82 — Control unit used in ABB half-controlled field-exciter arrangements.
- ABB DCF803 — ABB half-controlled field-exciter family associated with field-power applications.
- ABB DCF804 — ABB full-controlled field-exciter family.
- ABB NDCU-21C — Drive control unit from a different ABB hardware family; not a substitute for .
- ABB NPOW-42C — ABB power-related hardware with a different system role.
- ABB NDIO-02 — ABB drive I/O hardware; should not be confused with the protection/termination function.
- ABB NGPS-12C — ABB power-supply hardware with a different function.
Procurement Note
For ABB 3BSE017429R1, the safest procurement method is to match the complete part number and the equipment in which the original unit is installed. The online market contains materially conflicting descriptions, including digital output, thermistor, telemetry, and termination-unit classifications.
If this part is being sourced for an operating ABB drive or field-excitation system, provide the supplier with the complete equipment model, cabinet identification, original label, connector/terminal photographs, and neighboring board numbers. That information is much more reliable than selecting a replacement based on a generic web description.
For refurbished inventory, inspect the unit for heat discoloration, surge damage, cracked components, damaged terminals, corrosion, and altered wiring. If the is part of a DC protection circuit, also identify the reason the original protection device failed before returning the replacement to service.
