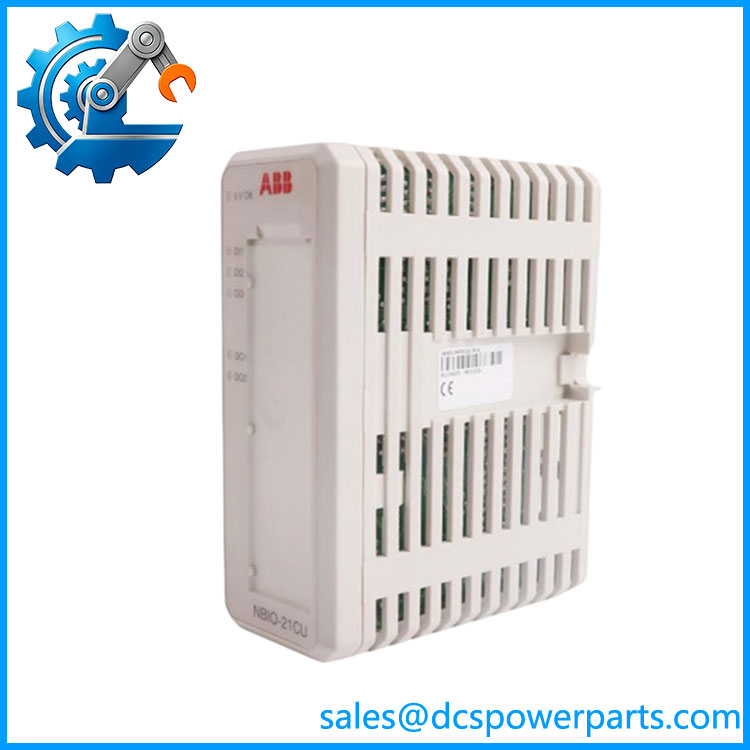

ABB NBIO-21CU | Fast Basic I/O Unit 2 | Drive I/O Replacement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | NBIO-21CU |
| Product ID | 3BHB011947R0121 |
| Product Designation | Fast Basic I/O Unit 2 |
| Product Type | Drive I/O Unit |
| Application Family | ABB Drives |
| Documented System | ACS6000 |
| Previous Product | 3BSE011064R1 I/O Board |
| Related Controller Hardware | NAMC-series control boards |
| Net Weight | Approx. 0.45 kg |
| LV/MV Compatibility | Application-dependent |
| Replacement Status | Replaced earlier I/O board in applicable ABB drive configurations |
Product Introduction
The is a Fast Basic I/O Unit 2 used within ABB drive control hardware. ABB-derived product information identifies 3BHB011947R0121 as the current product ID and lists the unit under ABB drive spare parts, with ACS6000 shown as a documented application. The unit replaced an earlier 3BSE011064R1 I/O board, making it particularly relevant when maintaining legacy ABB drive installations where the original I/O hardware is no longer the preferred spare.
The important point for engineers is that should not be treated as a generic PLC analog I/O card. Its electrical interface and signal handling are tied to the ABB drive control architecture. ABB-derived documentation specifically warns that an configuration identified by code 42000601 for LV drives cannot be used in MV drives because the signal filtering is different. That distinction makes the host drive and controller configuration just as important as the board number itself.
NBIO-21CU
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed I/O board in an older ABB drive can create an awkward procurement problem: the original board number may no longer be the correct replacement, while generic listings often describe as a universal analog or digital I/O module. That description is too broad for a field replacement decision. The correct question is which ABB drive, controller board, software configuration, and signal-filtering arrangement the is intended to serve.
Typical Applications
- ABB drive maintenance: Replacement of failed I/O hardware in applicable ABB drive control systems.
- ACS6000 maintenance: ABB documentation lists the as a spare part for ACS6000.
- Legacy I/O modernization: Replacement of the earlier 3BSE011064R1 I/O board where the applicable ABB conversion path is supported.
- Drive control troubleshooting: Restoration of I/O functionality after board-level faults, connector problems, or component degradation.
Technical Pitfalls
1. Do not assume universal PLC compatibility.
belongs to an ABB drive architecture. It is not a general-purpose PLC I/O module and should not be selected merely because a supplier describes it as an “analog I/O unit.”
2. LV and MV applications must be separated.
This is the most important documented procurement warning. ABB-derived information states that the configuration used with LV drives cannot be used in MV drives because the signal filtering differs. Verify the host drive before approving a replacement.
3. NAMC controller configuration matters.
ABB spare-parts information lists different ordering combinations depending on whether the drive uses NAMC-51C, NAMC-11C with standard software, or NAMC-11C with system software. The associated codes include 42000601, 42000640, and 42000638 respectively.
4. Do not infer channel count from reseller listings.
Several secondary pages describe as a 16-channel digital module or as a universal mixed analog I/O card, but those specifications are not adequately supported by the ABB-derived records reviewed here.
5. Verify the replacement history.
The earlier 3BSE011064R1 is identified as an I/O board including AI/AO and DI/DO and is listed as replaced by . This makes the old board number useful when tracing an installed legacy drive, but substitution should still be confirmed against the complete drive configuration.
6. Inspect the complete drive I/O path.
When an is suspected of failure, check the associated NAMC controller, connectors, field wiring, drive fault history, and signal behavior before condemning the board. A missing or unstable I/O signal does not automatically prove that the I/O unit itself is defective.
Related Products
- ABB 3BSE011064R1 — Earlier I/O board identified as replaced by .
- ABB NAMC-51C — Controller hardware specifically referenced in the replacement/configuration information.
- ABB NAMC-11C — Controller platform with separate ordering combinations for standard and system software.
- — Documented ABB drive system using as a spare.
- ABB 42000601 — -related code identified for an LV-drive application.
- ABB 42000640 — plus standard software configuration associated with NAMC-11C.
- ABB 42000638 — plus system software configuration associated with NAMC-11C.
Procurement Note
For an replacement, provide the supplier with the complete drive model, NAMC controller identification, existing NBIO board marking, and software/configuration information whenever available. Do not approve the part solely from the “” name. The LV/MV distinction and NAMC/software configuration can affect the correct ordering path, and ABB-derived documentation explicitly identifies those differences.
