Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | LDMUI-001 |
| Part Number | 61320946C |
| Product Type | Legacy Control / Interface Module |
| System Association | ABB LD-series / legacy automation hardware |
| Hardware Identification | 61320946C |
| Application | Industrial automation control/interface functions |
| Exact I/O Configuration | Requires revision-specific documentation |
| Communication Protocol | Not reliably established from available primary documentation |
| Supply Voltage | Not reliably established from available primary documentation |
| Operating Temperature | Requires confirmation from ABB documentation |
| Mounting | System-dependent |
| Condition | New Surplus / Tested Refurbished |
Procurement note: I would not publish the frequently repeated claims of “32 inputs / 32 outputs,” “24 VDC,” or specific Ethernet/Profibus/Modbus interfaces as confirmed specifications. Those figures appear on secondary listings without supporting ABB documentation and should not be used for an engineering approval.
Application Scenarios & Pain Points
The main difficulty with LDMUI-001 61320946C is identification. This is the kind of legacy spare where a supplier may have the correct physical board but describe its function incorrectly. For a plant buyer, that creates a dangerous situation: the part number looks right, yet the proposed substitute may belong to a different hardware position.
Typical Applications
- Legacy ABB Control Systems: Used as a replacement component where the installed cabinet documentation identifies LDMUI-001 / 61320946C.
- DCS/PLC Maintenance: Appropriate for maintenance inventories where an existing ABB system still depends on this legacy hardware.
- Control Cabinet Repair: Useful when troubleshooting an older ABB assembly in which the module has already been positively identified from the cabinet drawing or removed hardware.
- Obsolete-System Support: Particularly relevant when the original system is no longer receiving routine hardware updates and an exact replacement is preferable to redesigning the interface.
Field Case:
A good maintenance practice here is simple: photograph the complete module before removing it, including every label, connector designation, PCB revision, and adjacent board. With legacy ABB hardware, that information can be more valuable than a generic product description.

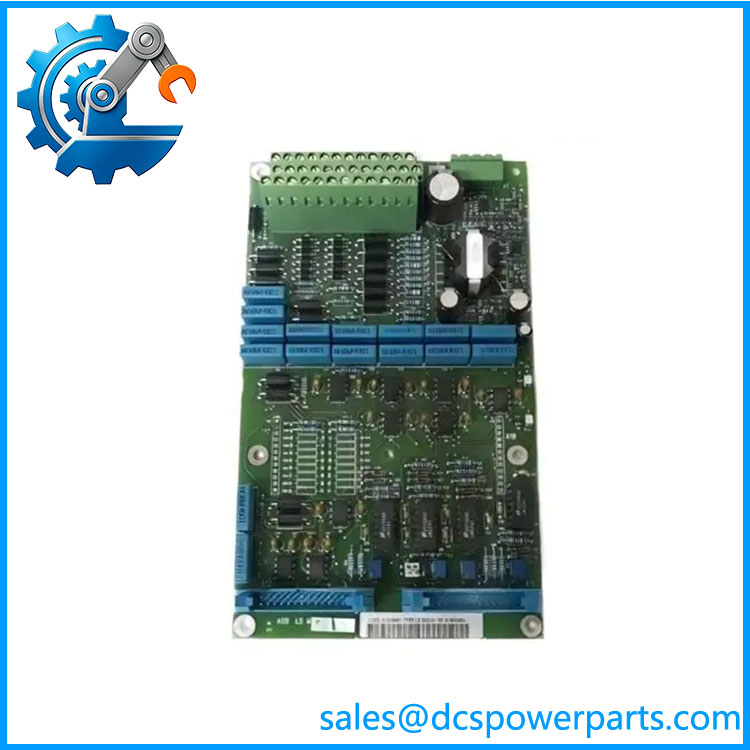

LDMUI-001
Related Products
Because public documentation for the exact LDMUI-001 61320946C is limited and inconsistent, related parts should be treated as system-context references, not automatic substitutes.
- ABB LDMUI-01 — Similar LDMUI designation found in ABB legacy-part inventories. The missing suffix is important; do not treat LDMUI-01 as interchangeable with LDMUI-001 without a hardware cross-reference.
- ABB LDSYN-101 — Legacy ABB LD-series synchronization-related module. It may appear in the same procurement environment, but its synchronization function is different from an LDMUI interface/control position.
- ABB LDGRB-01 — Legacy ABB LD-series hardware found alongside LDMUI parts. It should be evaluated by system drawing and board position rather than model-family similarity.
- ABB LD800HSE — ABB LD-series communication hardware. It is relevant when the system architecture involves LD-series communication, but it is not established as a direct replacement for LDMUI-001.
- ABB LT C391 AE01 HIEE401782R0001 — Legacy ABB control hardware from a different product family. Useful as a procurement comparison for older ABB installations, not a functional substitute.
- ABB NBIO-21C — ABB I/O-related hardware used in other legacy ABB architectures. Its presence in ABB spare inventories does not establish compatibility with .
- ABB NPCT-01C — Another ABB legacy control/interface component. Functional compatibility must be established from the host-system documentation.
- ABB INICT01 — ABB communication/interface hardware used in legacy control architectures. It belongs to a different functional family and should not be ordered as an LDMUI replacement.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Trust Generic Online Specifications
The biggest issue with this part is conflicting secondary data. One listing identifies it as a modular I/O system with up to 32 inputs and 32 outputs, while another calls it a power module; neither provides convincing ABB source documentation for those specifications.
How to avoid it: Make 61320946C and the exact board designation part of the purchase requirement. Ask for photographs of the actual nameplate and PCB.
⚠️ Do Not Substitute LDMUI-01 for
The two designations look nearly identical. That is precisely why they get mixed up.
How to avoid it: Compare the complete part number, PCB revision, connector arrangement, mounting position, and cabinet drawing before approving a substitute.
⚠️ Do Not Assume Communication Compatibility
Claims of Ethernet/IP, Profibus DP, Modbus TCP, or other protocols should not be accepted simply because they appear in a supplier specification.
How to avoid it: Confirm the actual interface from the ABB hardware manual, system drawing, or installed board markings. If the supplier cannot provide that evidence, classify the protocol as unverified.
Frequently Asked Questions (FAQ)
What is ABB 61320946C?
61320946C is an ABB legacy industrial control/interface module designation. Publicly available descriptions classify it inconsistently, so its exact electrical function should be confirmed against the installed ABB system documentation before procurement.
Is an I/O module or a power module?
The available secondary information conflicts. Some sources identify it as an I/O/control module, while another labels it a power module.
For engineering purposes, do not select the replacement based on either generic description. The safest identification is the complete marking plus the original system location.
What voltage does 61320946C use?
I would not publish a definitive supply voltage from the currently available evidence. A 24 VDC figure appears in one secondary listing, but the same source contains other questionable specifications.
Verify the voltage from the original ABB documentation or cabinet wiring diagram before energizing a replacement.
Can I replace with LDMUI-01?
Not without a documented cross-reference. The model names are similar, but the suffix difference can represent a different hardware revision or application.
Compare the complete part number, PCB revision, connector layout, and system position first.
What should I request when buying a refurbished ?
Ask for:
- Actual-unit photographs
- Full marking
- 61320946C part-number marking
- PCB/revision information
- Connector photographs
- Evidence of power-up testing
- Functional test documentation
- Inspection for corrosion, cracked solder joints, and damaged connectors
- Warranty terms
For a legacy board, a clear photograph of the actual hardware is particularly important.
Is suitable for a legacy ABB PLC/DCS replacement?
Potentially, if the installed system documentation identifies 61320946C as the required hardware. I would not approve it merely because a supplier categorizes it as an ABB PLC/DCS module.
For a critical replacement, match the board against the cabinet drawing and the original installed unit first. That avoids turning a simple spare replacement into an unplanned control-system modification.
