ABB KUC755AE105 3BHB005243R0105 | Gate Unit Power Supply

Description

Key Technical Specifications

ABB product information specifically identifies 3BHB005243R0105 as S KU C755 AE105:GUSP, with the catalog description GATE UNIT POWER, and states that the part is used as a spare for ACS 6000 medium-voltage AC drives.

A technical caution is important here. Some secondary listings publish broad input-voltage, current, and power figures for KUC755AE105, but those values are inconsistent across sources and are not established by the ABB product record reviewed here. I would not put those figures into a plant specification sheet without the applicable ACS 6000 drive documentation.

Application Scenarios & Pain Points

When an ACS 6000 drive trips around the gate-unit or power-semiconductor section, replacing the visible control electronics first is tempting. That can waste a maintenance window. The gate-unit power supply, associated cabling, gate electronics, and converter section all need to be considered.

• ACS 6000 medium-voltage drives: ABB identifies KUC755AE105 specifically as a spare Gate Unit Power Supply for this drive platform.
• Gate-unit maintenance: The unit provides the dedicated power function required by compatible gate-unit circuitry rather than supplying the general control rack.
• Medium-voltage drive refurbishment: Useful when an aging GUSP assembly shows power instability, startup faults, or abnormal gate-unit behavior after the surrounding circuitry has been verified.
• Emergency drive repair: Keeping an exact spare can shorten troubleshooting when production equipment is already down and the fault has been isolated to the gate-unit power section.

Field note: If the replacement immediately trips again, stop there. Repeatedly cycling a new GUSP into a shorted or damaged downstream gate circuit is a good way to turn one failed component into a larger repair.

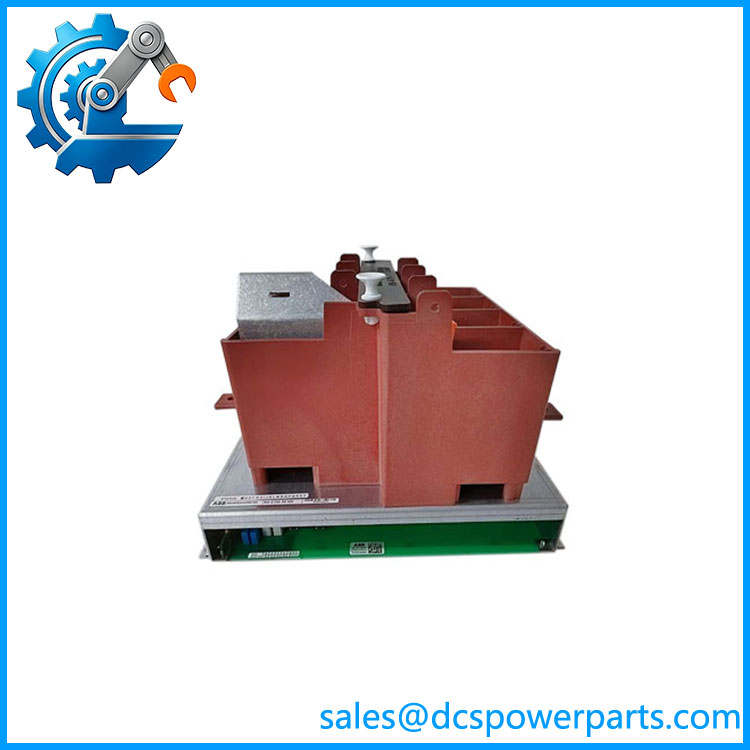

KUC755AE105 3BHB005243R0105

Related Products

• ABB KUC755AE105 3BHB005243R0105 — Exact GUSP specified here. It is the gate-unit power supply identified for ACS 6000 drive applications.
• ABB KUC755AE117 3BHB005243R0117 — A related KUC755 family variant. The different suffix indicates a separate hardware variant; it should not be treated as an automatic substitute for AE105.
• ABB 3BHB004791R0101 — Associated gate-unit hardware referenced alongside KUC755AE105. It performs the gate-unit function rather than replacing the GUSP itself.
• ABB ACS 6000 — The medium-voltage drive platform for which ABB identifies 3BHB005243R0105 as a spare component. Drive-specific configuration must be checked before installation.
• ABB UNS0881A-P,V1 3BHB006338R0001 — UNITROL Gate Driver Interface PCB. It belongs to ABB excitation equipment rather than the ACS 6000 GUSP architecture, so it is a functional comparison only, not a substitute.
• ABB UFC721AE101 3BHB002916R0101 — Related ABB power-electronics/control hardware encountered in ABB drive and converter applications. Its function differs from the KUC755AE105 gate-unit power supply.
• ABB 5SHX1960L0006 3BHB016120R0002 — ABB power semiconductor-related hardware used in high-power converter assemblies. It is complementary power-stage hardware, not a power-supply replacement.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not confuse “Gate Unit Power” with the main drive power supply.

The is specifically identified as a GUSP, meaning its role is associated with the gate-unit circuitry. It is not the general DC or AC supply for the entire ACS 6000 drive.

How to avoid it: Match the drive BOM, cabinet location, wiring, and gate-unit identification before ordering.

⚠️ Do not substitute KUC755 variants by model-family name alone.

and KUC755AE117 are separate ABB product identifiers.

How to avoid it: Match the complete designation and confirm the drive’s original installed part number.

⚠️ Do not assume a failed GUSP is the only fault.

A damaged gate circuit, semiconductor assembly, cable, or downstream load can cause the replacement supply to trip or fail again.

How to avoid it: Before energizing the replacement, inspect the gate-unit wiring, connectors, insulation condition, downstream circuitry, and fault history. Follow the applicable medium-voltage isolation procedure.

Frequently Asked Questions (FAQ)

What is ABB 3BHB005243R0105?

It is an ABB Gate Unit Power Supply (GUSP) identified by Product ID 3BHB005243R0105 and Type Designation S KU C755 AE105:GUSP. ABB identifies it as a spare part for ACS 6000 medium-voltage AC drives.

Is a PLC power supply?

No. Its documented function is Gate Unit Power, associated with the gate-unit circuitry of the ACS 6000 drive. It should not be specified or substituted as a general PLC/DCS power supply.

What equipment uses 3BHB005243R0105?

ABB identifies the part for ACS 6000 medium-voltage AC drives. A secondary technical reference also associates the GUSP with gate-unit hardware 3BHB004791R0101.

Can KUC755AE117 replace ?

Do not assume so. Both use the KUC755 designation, but AE105 and AE117 are different complete product variants. Confirm the drive configuration and approved replacement documentation before substitution.

What should I check when purchasing a replacement ?

Verify:

1. marking.
2. 3BHB005243R0105 Product ID.
3. ABB Type Designation S KU C755 AE105:GUSP.
4. Drive model and cabinet position.
5. Gate-unit compatibility.
6. Connector and terminal condition.
7. Evidence of overheating or insulation damage.
8. Functional test documentation.
9. Actual supplied condition and included hardware.
10. Revision information on the physical unit.

How should a refurbished be tested?

A meaningful test should verify the power supply under an appropriate representative load and compatible gate-unit arrangement, while checking startup behavior, output stability, protection behavior, and fault response. A simple no-load voltage measurement is not enough to establish suitability for an operating medium-voltage drive.
