Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | KUC711AE101 |
| ABB Part Number | 3BHB004661R0101 |
| Product Type | Gate Unit Power Supply (GUSP) |
| Main Function | Gate-unit power supply |
| Semiconductor Association | IGCT / IGBT gate-unit systems |
| Application | High-power converter / excitation systems |
| System Integration | ABB power-electronics architecture |
| Control Interface | System-dependent |
| Optical Interface | Applicable to associated gate-unit architecture |
| Input Voltage | Verify exact system documentation |
| Output Voltage | Verify exact gate-unit specification |
| Output Current | Verify exact hardware documentation |
| Isolation | High-voltage isolation is integral to the associated gate-unit architecture |
| Mounting | System-specific |
| Firmware | Configuration/system dependent |
| Net Weight | Approx. 4.7 kg reported by a secondary listing |
| Dimensions | Approx. 279 × 203 × 191 mm reported by a secondary listing |
The dimensions and weight above come from a secondary listing that reproduces an ABB-style product identification block. They should be treated as reference data rather than a substitute for the original ABB datasheet.
Product Introduction
The ABB KUC711AE101 3BHB004661R0101 is a Gate Unit Power Supply (GUSP) associated with ABB high-power semiconductor converter technology. Its primary purpose is to provide the required electrical supply to the gate-unit circuitry used to control high-power semiconductor devices such as IGCTs and, depending on the associated converter architecture, IGBTs.
The ABB KUC711AE101 should not be confused with a conventional PLC CPU, general-purpose excitation controller, or S800 I/O module. Its role is much closer to the power-electronics interface between the control system and the semiconductor switching stage. The associated ABB application material emphasizes gate-unit power, insulation, optical control interfaces, diagnostics, protection, and environmental considerations.
The ABB 3BHB004661R0101 is also repeatedly associated by secondary technical sources with ABB excitation and medium-voltage converter equipment, including systems using high-power semiconductor switching stages.

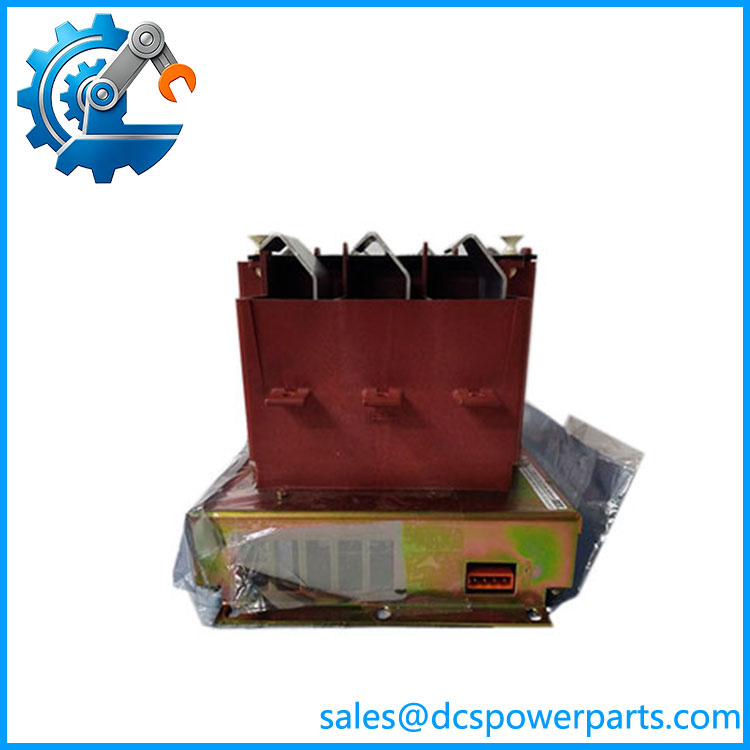

KUC711AE101 3BHB004661R0101
KUC711AE101 3BHB004661R0101
Main Features & Field Considerations
Gate-unit power supply
The defining function of KUC711AE101 is its role as a GUSP. It supplies the gate-unit electronics rather than directly serving as the main power converter.
IGCT/IGBT gate-drive environment
ABB’s referenced gate-unit application material covers IGCT gate units and addresses power supply, insulation, optical control, diagnostics, protection, and environmental requirements.
High-voltage isolation is critical
Gate-unit assemblies operate between low-voltage control electronics and high-voltage power semiconductor circuits. Replacement therefore requires attention to insulation architecture, connector configuration, and the specific converter topology.
System-specific component
The KUC711AE101 should be matched to the exact ABB converter or excitation system. A visually similar gate-unit power module is not necessarily an acceptable substitute.
Part-number matching
For procurement, retain both identifiers:
KUC711AE101
3BHB004661R0101
Some secondary listings also associate 3BHB004791R0101 with this assembly, but that should be treated as a related component rather than automatically interchangeable with 3BHB004661R0101.
Replacement Checks
Before replacing an , verify:
- Exact model:
- ABB part number: 3BHB004661R0101
- Complete hardware revision
- Host converter or excitation system
- Gate-unit type
- IGCT/IGBT device type
- Gate-unit connector arrangement
- Input power requirements
- Output requirements for the associated gate unit
- Optical/control interface
- Insulation requirements
- Existing diagnostic status
For high-power converter equipment, do not energize a replacement gate-unit power assembly until the associated semiconductor and gate-drive circuits have been checked.
Important Specification Caution
Several online listings attach generic specifications such as 220 VAC input, 50 kHz output, 24 VDC output, 5 A output current, 5 kV insulation, ≤50 ns optical delay, ARM Cortex-A9, 2 GB DDR3, Ethernet, Modbus TCP, PROFIBUS-DP, and OPC UA to . These claims are not sufficiently supported by the available ABB material and appear to mix specifications from different ABB control and excitation products.
I would therefore not publish those values as confirmed specifications for the .
Procurement Note
Recommended procurement description:
ABB 3BHB004661R0101 — Gate Unit Power Supply (GUSP) for ABB High-Power Converter / Excitation Systems
For a field replacement, the host converter/excitation system, gate-unit type, semiconductor type, hardware revision, and connector/optical interface should be verified alongside the part number. This is more important than relying on generic reseller descriptions of the module as an “excitation controller.”
