Description

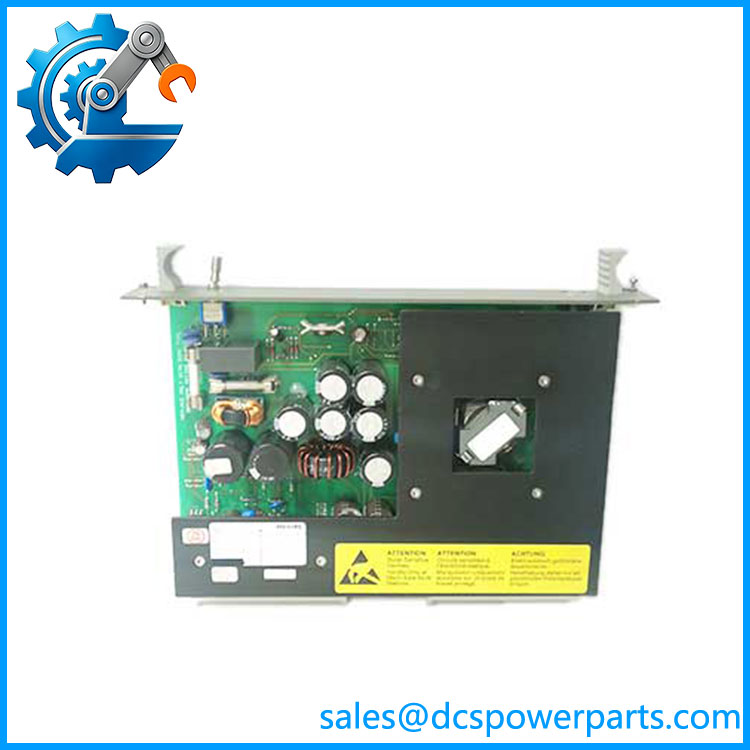

ABB KUC321AE HIEE300698R1 Industrial Control Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KUC321AE |
| ABB Ordering Number | HIEE300698R1 |
| Manufacturer | ABB |
| Product Type | Industrial control module / board assembly |
| Application Family | Legacy ABB industrial automation / drive equipment |
| Hardware Revision | Verify from nameplate |
| Input Voltage | Verify against OEM documentation |
| Output / I/O | Verify against OEM documentation |
| Communication Interface | Verify against OEM documentation |
| Operating Temperature | Verify against exact hardware revision |
| Mounting | Equipment / assembly dependent |
| Protection Rating | System dependent |
| Firmware | Verify against parent system |
| Configuration | Parent-equipment dependent |
Public records consistently associate KUC321AE with HIEE300698R1, but the published descriptions differ substantially. One source identifies it as a power supply module, while another calls it a controller and another describes it as a drive main control board.
Product Introduction
The ABB KUC321AE HIEE300698R1 is a legacy ABB industrial electronic module identified by the KUC321AE hardware designation and HIEE300698R1 ordering number. Available technical records indicate that it belongs to ABB’s broader industrial automation and drive hardware ecosystem, but publicly available documentation does not establish enough evidence to assign a definitive standalone function or electrical specification.
For maintenance purposes, the safest approach is to treat the ABB KUC321AE as a system-specific replacement component rather than a generic 24V power module, PLC CPU, or analog I/O card. The parent equipment, cabinet location, connector arrangement, board revision, and adjacent assemblies should all be checked before approving a replacement.
KUC321AE HIEE300698R1
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The is most relevant to legacy ABB industrial control equipment, drive-related systems, and plant automation maintenance where an existing board has to be replaced without changing the surrounding hardware. Because this part has limited publicly documented technical information, the main engineering risk is misidentification. A reseller description should not be treated as sufficient evidence for a control-system replacement.
Before installation, verify:
- Complete part number: Confirm both and HIEE300698R1 on the existing board.
- Parent assembly: Record the ABB drive/controller/system model in which the board is installed.
- Board revision: Compare revision markings, PCB layout, connectors, jumpers, and component population.
- Electrical ratings: Do not rely on online claims for 24VDC input, 3A output, or other ratings without the applicable ABB documentation.
- Communication: Do not assume PROFIBUS, RS-485, Ethernet, or another protocol merely because one reseller lists it.
- Firmware/configuration: If the board contains configuration or control firmware, verify the replacement against the existing system baseline.
- Connector matching: Mechanical fit does not prove electrical compatibility.
- Commissioning: After replacement, verify power rails, diagnostics, system communication, drive/controller status, and application behavior before returning equipment to normal operation.
Important Identification Warning
There is significant inconsistency among commercial listings for this part. One listing identifies as a power supply module, another calls it a controller, and another describes it as a drive main control board.
For that reason, I would not publish a definitive voltage, current, communication protocol, I/O count, or environmental rating for this part without an ABB manual, catalog entry, or a clear photograph of the original hardware.
Related Products
- ABB KUC711AE — ABB drive-related control/power hardware; function and application differ from .
- ABB KUC720AE — Related ABB control-board family; exact compatibility must be established from the parent drive.
- ABB KUC755AE — ABB drive gate-unit/power-related hardware; not a direct substitute for .
- ABB PPC322BE — ABB control module with a different hardware designation; verify system architecture before considering it.
- ABB HAC349A — ABB system/rack-related hardware appearing in the same legacy product ecosystem.
- — The ordering-number designation associated with and should be included in procurement documentation.
Procurement note: The safest replacement specification is ABB / + exact parent equipment model + board revision. If you are sourcing this for a live installation, do not approve a substitute based on the model number alone.
