ABB INNIS21 | Symphony Harmony Communication Interface Module, New Surplus

Description

Key Technical Specifications

Product Introduction

ABB INNIS21 Overview

The ABB INNIS21 Network Interface Slave Module is a communication module used in ABB Bailey INFI 90 and Symphony Harmony distributed control systems. It provides the interface between the INFI-NET communication network and connected control nodes, allowing data exchange across the DCS architecture.

The ABB INNIS21 is typically found in long-running process plants where Bailey control platforms remain in service. Its role is communication rather than direct process control, so replacement requires careful verification of network configuration, node addressing, and compatible termination hardware before returning the system to operation.

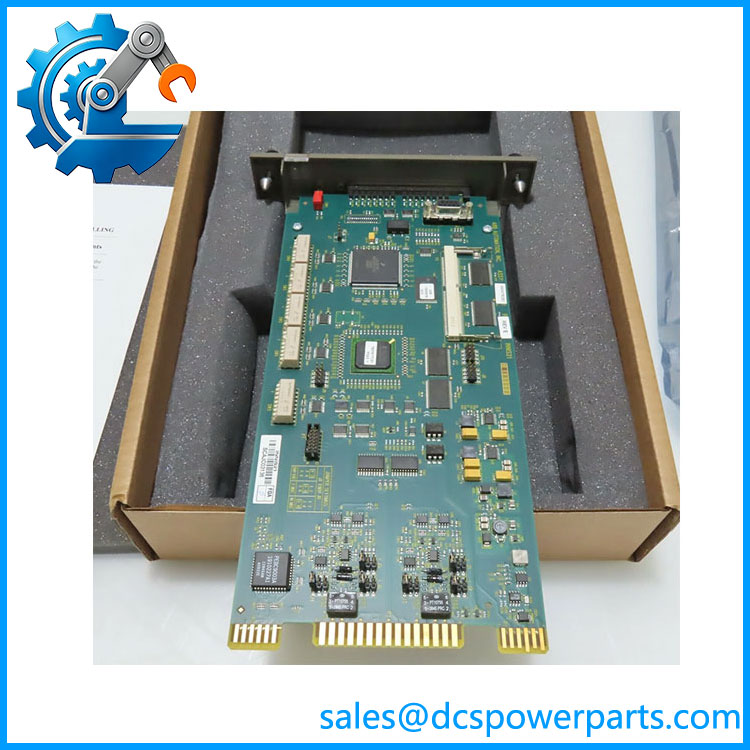

INNIS21

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A plant control network begins losing communication with several remote control nodes. Individual I/O modules appear healthy, processors are running, but operators see missing data and delayed status updates.

Communication interface failures are difficult because the symptoms spread across the system. A faulty network module can look like a controller issue, a fieldbus problem, or even a database configuration error.

The INNIS21 sits in the communication path. When it fails, the entire node connection strategy must be checked.

Typical Applications

• Power Generation Plants – Bailey INFI 90 network communication between turbine controls, balance-of-plant systems, and operator stations.
• Oil & Gas Facilities – Legacy DCS communication networks for process monitoring and equipment control.
• Chemical Processing Plants – Distributed control communication between process controllers, I/O subsystems, and supervisory systems.
• Water Treatment Facilities – Centralized monitoring systems using existing Bailey Symphony or INFI 90 architectures.

Technical Pitfalls to Avoid

1. Verify Network Address Configuration

   INFI-NET systems depend on correct node addressing. A replacement INNIS21 may power normally but fail to communicate if configuration settings do not match the existing system.

2. Check Cable and Termination Hardware

   Communication faults are often caused by damaged cables, incorrect termination units, or degraded connectors rather than the module itself.

3. Confirm Firmware and System Revision Compatibility

   Legacy Bailey systems may have specific firmware requirements. Verify the installed system revision before introducing a replacement communication module.

Related Products

• ABB INNIS01
  Earlier INFI-NET to Node Communication Interface module. Used in Bailey INFI 90 systems with similar communication functions.
• ABB INNIS11
  Network Interface Slave Module variant used in Bailey Symphony architectures. Applicable where system revision requires this hardware version.
• ABB INICT01
  Infi-Net Computer Transfer Module used for communication between INFI-NET networks and computer-based systems.
• ABB INIIT02
  Bridge Communication Module used for connecting different Bailey communication networks.
• ABB INIIL02
  Infi-Net to Infi-Net Interface Module used when linking separate INFI-NET networks.
• ABB INNPM11
  Network Processor Module used with Bailey communication architectures for network processing functions.
• ABB SPNIS21
  Later Symphony Plus communication interface module related to the function family.
• ABB IMMFP12
  Multi-Function Processor Module used as a control processor within Bailey INFI 90 systems.
