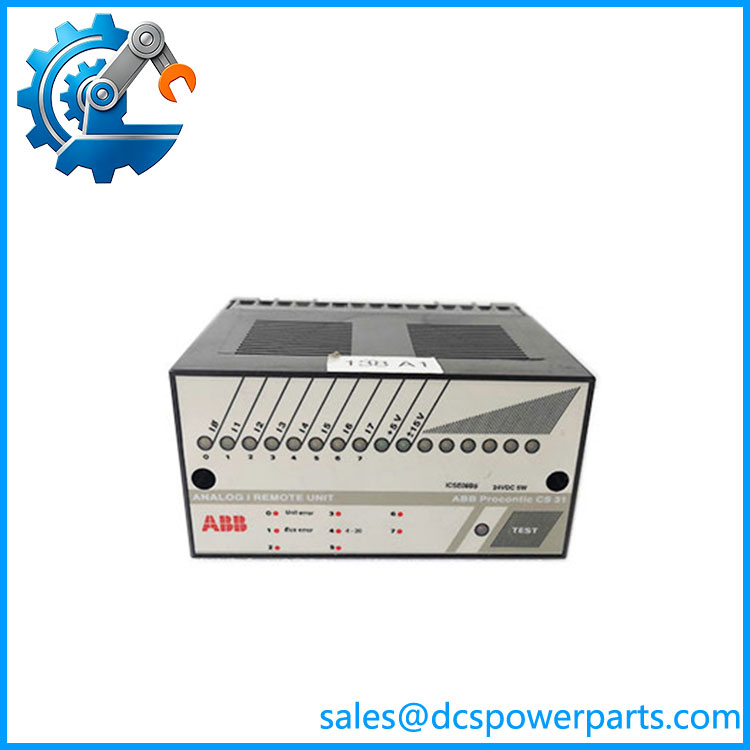

ABB ICSE08B5 FPR3346501R1012 is a remote analog input module designed for ABB Procontic CS31 distributed automation systems. The module provides additional analog signal acquisition capability for control systems where field measurements must be collected away from the main controller cabinet. It communicates with the CS31 control system through the ABB remote I/O bus, allowing process signals to be integrated into the PLC application.
The ABB FPR3346501R1012 ICSE08B5 is configured as an 8-channel analog input unit with 24 VDC power supply requirements. Each input channel performs analog-to-digital conversion, allowing field instruments such as transmitters and measurement devices to provide process information to the control system. Reported technical references identify the module as an eight 12-bit input remote analog unit with 24 VDC power.
The ABB ICSE08B5 belongs to the older Procontic CS31 generation, a platform widely used in industrial machines and process applications requiring decentralized I/O expansion. The module is designed to reduce long field wiring runs by allowing signal conditioning and acquisition closer to the process equipment.
Typical system architecture:
Field Analog Transmitters → ICSE08B5 Remote Analog Module → CS31 Bus → ABB Controller → Control Logic
The module itself does not execute PLC logic. Its role is to provide reliable field signal collection and transfer measurement data to the central controller.
For replacement projects, engineers should verify the complete part number FPR3346501R1012, the CS31 bus configuration, analog input wiring, channel scaling parameters, and controller software configuration. Although the module is physically compact, incorrect replacement of analog I/O hardware can result in incorrect process values or scaling errors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | ICSE08B5 |
| Part Number | FPR3346501R1012 |
| Product Type | Remote Analog I/O Module |
| Automation Platform | ABB Procontic CS31 |
| Module Designation | ICSE 08 B5*24V |
| Input Channels | 8 analog inputs |
| Resolution | 12-bit A/D conversion |
| Power Supply | 24 VDC |
| Communication Interface | ABB Remote Bus |
| Signal Acquisition | Analog process measurement |
| Installation Type | Remote DIN rail mounting |
| Dimensions | Approx. 125 × 80 × 104 mm |
| Weight | Approx. 0.28 kg |
| Application | Industrial automation and process control |
Specifications are based on ABB product references identifying ICSE08B5-2 as an I/O module with product ID FPR3346501R1012, ABB designation ICSE 08 B5*24V, and approximately 0.28 kg weight.
Main Features and Advantages
ICSE08B5
Eight-Channel Analog Signal Acquisition
The main function of the ABB FPR3346501R1012 is collecting analog process signals from field devices.
Typical input sources include:
- Pressure transmitters
- Temperature transmitters
- Flow measurement devices
- Level transmitters
- Machine monitoring sensors
The integrated 12-bit conversion provides digital process values for the controller.
Remote I/O Architecture
The supports decentralized automation layouts.
Advantages include:
- Reduced control cabinet wiring
- Flexible field installation
- Easier expansion of existing systems
- Shorter analog signal cable distances
Remote placement helps maintain cleaner signal routing in larger industrial installations.
ABB Procontic Compatibility
The module was developed specifically for ABB Procontic systems.
Common applications include:
- Factory automation equipment
- Process skids
- Packaging machinery
- Utility systems
- Legacy PLC installations
The communication network allows multiple remote I/O modules to operate as distributed extensions of the controller.
Industrial Signal Conditioning
Analog modules require careful handling of:
- Signal type selection
- Scaling parameters
- Shielding
- Grounding
- Transmitter power supply
The module provides the interface between field instrumentation and the PLC control program.
Legacy System Maintenance Value
Many Procontic systems remain installed in industrial equipment. Maintaining spare modules such as ABB can reduce downtime when aging remote I/O hardware fails.
Common failure symptoms include:
- Incorrect analog readings
- Missing channels
- Communication alarms
- Input value drift
- Module diagnostics faults
Application Scenarios
Process Monitoring Systems
Used for collecting:
- Pressure values
- Temperature measurements
- Flow signals
- Level feedback
Machine Automation
Applications include:
- Production machinery
- Assembly equipment
- Packaging systems
Distributed Control Cabinets
Used when field instrumentation is located away from the main PLC cabinet.
Legacy ABB Automation Systems
Commonly maintained in facilities operating older ABB Procontic platforms.
Related Components
| Model | Function |
|---|---|
| ICSA04B5 FPR3341501R1042 | Analog input module variant |
| ICSI16E1 FPR3316101R1032 | I/O module |
| ICSM06A6 FPR3350601R1062 | remote module |
| ECZ FPR3700001R0001 | mounting base |
| ABB Controller Modules | Main control processors |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Analog Input Configuration
Before replacement, confirm:
- Input signal range
- Channel assignment
- Engineering units
- Scaling parameters
- Transmitter type
A replacement module may communicate correctly while displaying incorrect process values.
⚠️ Check Field Wiring
Analog faults are often caused by:
- Broken signal cables
- Poor shielding
- Ground loops
- Incorrect transmitter supply
- Loose terminals
Always verify field circuits before replacing hardware.
⚠️ Confirm Bus Communication
Communication failures may originate from:
- Bus wiring problems
- Address configuration
- Termination issues
- Controller configuration
The I/O module is only one part of the communication chain.
⚠️ Refurbished Module Testing Requirements
A proper inspection should include:
- Visual PCB inspection
- 24VDC power verification
- bus communication test
- Analog input simulation
- Channel accuracy verification
- Diagnostic LED inspection
- Continuous operation test
A module that powers up does not confirm analog measurement accuracy.
Frequently Asked Questions
What is ABB ?
It is an ABB Procontic remote analog I/O module used for industrial automation signal acquisition.
How many inputs does provide?
The module provides 8 analog input channels with 12-bit conversion capability.
Is a PLC CPU module?
No. It is a remote I/O expansion module.
What power supply does it use?
The module uses a 24 VDC supply.
What should be checked before replacement?
Verify:
- Exact part number:
- Module type:
- bus compatibility
- Analog signal configuration
- Channel scaling
- Field wiring
- Controller software settings
