ABB GRBTU-01 3BSE013175R1 | DCS Interface Replacement

Description

Key Technical Specifications

ABB-related technical references identify GRBTU-01 3BSE013175R1 specifically as a Module Termination Unit for the LD GRB-01 Gray Encoder Board.

There are conflicting third-party descriptions of this part, including claims that it is a generic communication gateway or PROFIBUS interface. Those descriptions are not sufficiently consistent to use as procurement specifications. The GRBTU-01/LD GRB-01 relationship is the more specific identification and should be treated as the primary reference.

Application Scenarios & Pain Points

Encoder-related hardware can be deceptively difficult to replace. A system may continue communicating with the controller while position feedback becomes noisy, intermittent, or completely unavailable. At that point, the termination/interface hardware deserves the same attention as the encoder board itself.

• Gray encoder interface: The principal application is connection and termination associated with the LD GRB-01 gray encoder board.
• Legacy ABB control systems: Useful where an installed automation platform still depends on the original GRB interface architecture and a matching terminal unit is required.
• Encoder signal troubleshooting: When signal quality changes after years of service, inspect terminals, connectors, grounding, and physical board interfaces before assuming the encoder electronics have failed.
• Maintenance spare: A sensible cabinet spare where loss of the encoder interface would prevent normal machine operation.

Field note: Do not judge this unit by its relatively simple appearance. A terminal/interface unit can create exactly the same symptoms as a failed electronic board when a connector is loose, contaminated, or incorrectly terminated.

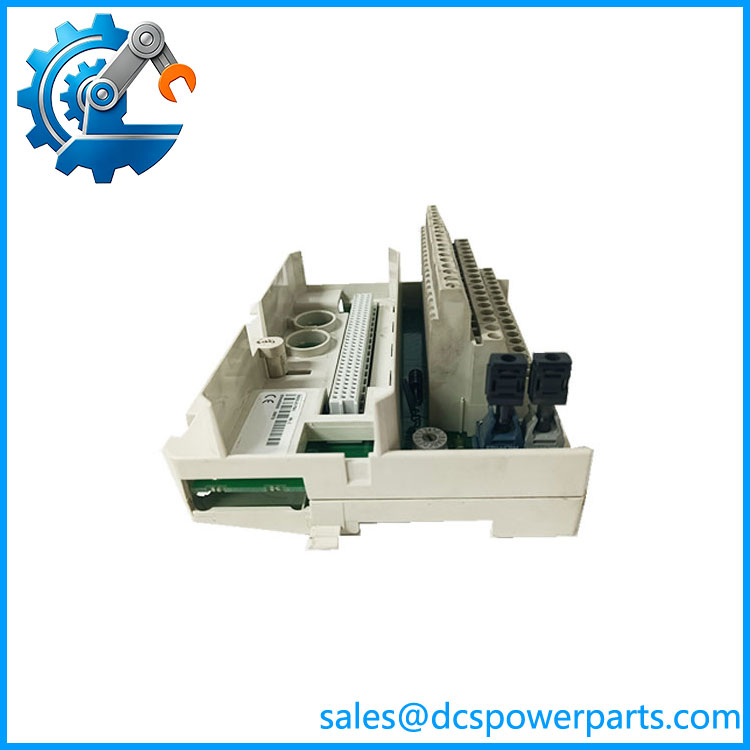

GRBTU 3BSE013175R1

Related Products

• — The associated gray encoder board. The GRBTU-01 is specifically identified as its Module Termination Unit, so these two components should be considered together when checking system compatibility.
• ABB GRBTU-01 — The same termination-unit designation corresponding to 3BSE013175R1. This is the primary identification to use when requesting a matching replacement.
• ABB 3BSE013177R1 — A nearby ABB GRB-related part number appearing in component references. It should not be treated as equivalent to 3BSE013175R1 without checking its exact hardware designation.
• ABB PM864A 3BSE018162R1 — AC 800M controller hardware. It represents a different control-system layer and is not a substitute for the GRBTU termination unit.
• ABB TB850 — System communication/termination hardware from another ABB architecture. Its presence in an ABB cabinet does not establish compatibility with the GRBTU-01.
• ABB TU810V1 — Compact S800 I/O terminal unit. Functionally, it demonstrates the same broad concept of a termination/interface component, but its system architecture is different from the .
• ABB TU841 — S800 I/O termination unit used for a different modular I/O architecture. It should not be substituted for based solely on the “terminal unit” description.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not buy by “GRBTU” alone.
Use the complete / 3BSE013175R1 identification. ABB has numerous terminal and interface assemblies, and similar abbreviations do not establish interchangeability.

⚠️ Do not confuse the termination unit with the encoder board.
The is associated with the LD gray encoder board. If the system fault is actually on the encoder board, replacing only the terminal unit will not solve the problem.

⚠️ Verify the physical interface before installation.
Compare the connector layout, terminal markings, mounting arrangement, and cabinet wiring against the existing unit. Well, technically, a continuity check alone is not enough—you need to confirm that the signal assignments correspond to the original hardware.

Practical check: Photograph the existing GRBTU before removal, mark each field connection, inspect terminals for oxidation or heat discoloration, and verify the associated LD part number. For a used spare, ask for clear photographs of the connectors and terminal surfaces rather than relying on a generic stock photograph.

Frequently Asked Questions (FAQ)

What is ABB 3BSE013175R1?

It is an ABB Module Termination Unit associated with the LD gray encoder board. Its job is to provide the required termination/interface between the encoder-board assembly and the surrounding control-system wiring.

Is a PLC input or output module?

No. It should not be treated as a conventional digital or analog I/O module. Its primary role is termination and interface support for the LD encoder-board arrangement.

What is the relationship between and LD ?

The relationship is direct: available component documentation describes as the Module Termination Unit (MTU) for the LD Gray Encoder Board. Therefore, the LD identification should be checked when determining compatibility.

Can I replace 3BSE013175R1 with another ABB terminal unit?

Not without verifying the exact system architecture. ABB uses many termination units across its automation families. A TU810, TU841, TB850, or other ABB terminal assembly may look similar but have different electrical connections and mechanical interfaces.

What should I check when purchasing a used ?

At minimum:

• Confirm / 3BSE013175R1 on the label.
• Check connector and terminal condition.
• Inspect for corrosion, cracked housings, or heat damage.
• Compare the physical layout with the installed unit.
• Confirm compatibility with the associated board.
• Request photographs of the actual unit rather than relying on a catalog image.

Is 3BSE013175R1 a communication gateway?

There are inconsistent descriptions online calling GRBTU 3BSE013175R1 a communication gateway. More specific references identify as a Module Termination Unit for LD , so I would not specify it as a generic Ethernet, PROFIBUS, or Modbus gateway without ABB documentation for the exact installed configuration.
