Description
Product Overview

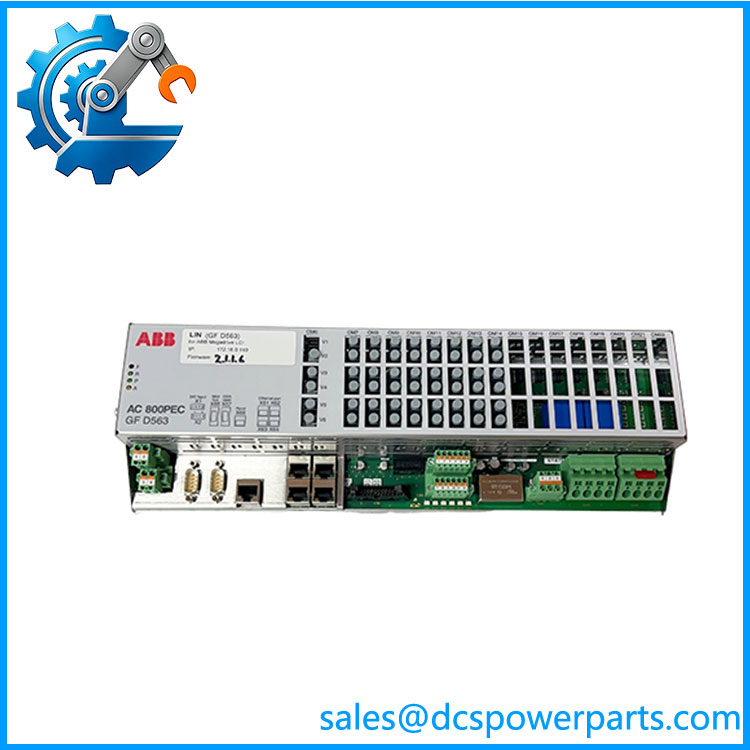

The ABB GFD563A102 3BHE046836R0102 is a converter interface module designed for ABB AC800PEC-based power electronics control systems. This module provides the communication and interface functions required between the control processor and line commutated inverter (LCI) converter equipment. The ABB GFD563A102 3BHE046836R0102 is identified by ABB as a GF D563 A102 LCI Converter Interface (LIN) assembly, supporting applications where precise coordination between control electronics and high-power conversion equipment is required.
Within ABB power conversion architectures, the ABB GFD563A102 3BHE046836R0102 operates as an interface component between the AC800PEC controller environment and converter power sections. It is used in systems requiring synchronized communication, converter monitoring, and control signal exchange. The module is commonly associated with high-power applications such as industrial drives, excitation systems, and converter-based equipment where accurate timing and dependable signal processing are essential.
For engineers maintaining ABB power electronics installations, the ABB GFD563A102 3BHE046836R0102 is typically considered during converter maintenance, lifecycle support, and hardware replacement activities. To be completely transparent, compatibility depends heavily on the complete converter configuration, firmware environment, controller hardware revision, and application-specific parameters. A matching part number is required, but it is not the only verification point before installation.
The practical value of this module comes from maintaining existing ABB converter systems without changing the surrounding control architecture. Before commissioning a replacement unit, technicians should confirm connector condition, board revision, system communication settings, and converter interface diagnostics. Proper verification is especially important for power conversion equipment because interface errors can affect converter synchronization and operational stability.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB GFD563A102 3BHE046836R0102 |
| Manufacturer | ABB |
| ABB Type Designation | GF D563 A102 |
| Product Type | LCI Converter Interface Module |
| Application Platform | ABB AC800PEC |
| Interface Function | LIN Converter Interface |
| Main Function | Converter communication and control signal interface |
| System Application | Power electronics control systems |
| Compatible Equipment | ABB LCI converter systems |
| Installation | AC800PEC control architecture |
| Replacement Role | Converter interface spare module |
| Product ID | 3BHE046836R0102 |
GFD563A102
Related Products
- ABB PCD231B101 3BHE028194R0101 — AC800PEC controller board used for power electronics control applications. Works as a processing component while the handles converter interface tasks.
- ABB PCD530A102 3BHE041343R0102 — Converter control-related module used in ABB power conversion systems. Applicable for systems requiring coordinated converter control functions.
- ABB Controller — High-performance controller platform used in drive and power conversion applications. Provides the processing environment for interface modules such as .
- ABB UNITROL 6000 Control Components — Excitation system hardware family used in generator excitation applications. Compatibility depends on the complete excitation configuration.
- ABB 5SHY3545L0003 — High-power IGCT component used in ABB converter power sections. Supports the semiconductor switching stage rather than control communication.
- ABB 5SXE10-0181 — Power semiconductor component used in converter applications. Complements converter assemblies where manages interface functions.
- ABB GFD801B101 — Related ABB converter control hardware. Used in different power conversion configurations requiring specific system verification.
Frequently Asked Questions (FAQ)
1. What system uses the ABB 3BHE046836R0102?
The ABB 3BHE046836R0102 is associated with ABB power electronics control systems and is identified as an LCI converter interface module.
Its role is to provide communication and interface processing between the controller and converter hardware.
2. Can I hot-swap the ABB module?
No general hot-swap assumption should be made.
Recommended replacement steps:
- Place the converter system into a safe maintenance condition.
- Remove power according to site procedures.
- Verify discharge conditions for associated power equipment.
- Install the replacement module.
- Confirm converter diagnostics after startup.
Power converter interface boards are normally replaced under controlled conditions.
3. Does the ABB support firmware v3.1?
Firmware compatibility depends on the complete system configuration, controller firmware, and converter application software. The module part number alone does not confirm firmware support.
4. Will replacing the ABB erase my control logic?
No. The primary application logic is normally stored within the controller environment rather than the converter interface module.
After replacement, engineers should verify:
- Controller communication status
- Converter parameters
- Interface diagnostics
- Stored application configuration
5. How can I verify a New Surplus ABB 3BHE046836R0102?
A recommended inspection process includes:
- Checking ABB identification labels and ordering number.
- Confirming the GF D563 A102 designation.
- Inspecting connectors and PCB condition.
- Verifying storage condition.
- Performing functional checks before field installation.
6. What failures are commonly associated with converter interface modules?
Typical issues may include:
- Communication interruption between controller and converter
- Connector oxidation or poor contact
- Power supply irregularities
- Hardware aging after long service periods
- Incorrect replacement revision
Troubleshooting should include the complete converter control chain rather than replacing only one board.
7. Is ABB suitable for ABB system upgrade projects?
The module is mainly intended for maintaining existing ABB power conversion installations. For larger upgrades, engineers should evaluate the platform, converter hardware condition, software compatibility, and long-term spare strategy before making changes.
