ABB DSCS131 57310001-LM | Tested Communication Unit

Description

Key Technical Specifications

ABB product listings identify DSCS131 / 57310001-LM as a MasterFieldbus Communication Unit with Redundancy. The published ABB product dimensions are approximately 321.3 × 19.8 mm, with a net weight of 0.46 kg.

The same part number is independently cataloged as an ABB Communications Module for the Advant/OCS control platform.

Application Scenarios & Pain Points

When a legacy DCS communication path starts dropping stations, replacing an I/O card immediately can be the wrong move. The real problem may be farther upstream at the fieldbus communication layer.

• ABB Advant Master systems: DSCS131 provides MasterFieldbus communication within the Advant control architecture.
• Redundant communication architectures: The unit is specifically described as having redundancy, making it relevant to systems where communication continuity is part of the control design.
• Remote I/O communication: Where configured accordingly, the MasterFieldbus layer provides the communication path between control hardware and field-level stations.
• Legacy DCS replacement: A tested DSCS131 is useful when an existing Advant installation remains operational but an original communication board has become unreliable or difficult to maintain.

Field note: If one remote station disappears while others remain healthy, inspect the fieldbus segment, termination, addressing/configuration, and station power before condemning the DSCS131. If an entire communication branch fails at once, the module or its associated interface deserves much closer attention.

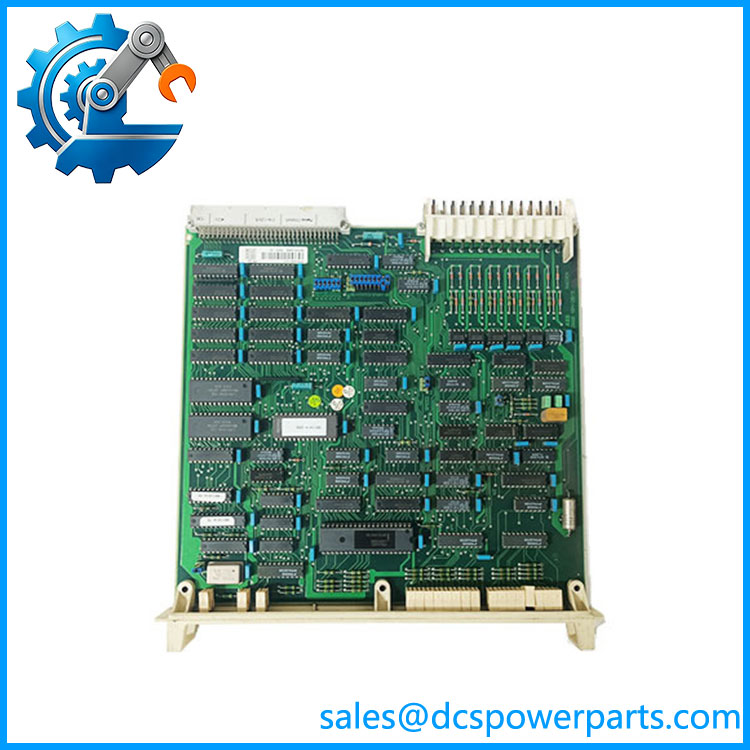

DSCS131 57310001-LM

Related Products

• ABB DSCS131 57310001-LM — The exact MasterFieldbus communication unit covered here. Its redundancy capability makes it appropriate for the corresponding Advant architecture.
• ABB DSCS140 57520001-EV — Another DSCS-series communication module. It belongs to the same general communication hardware family, but the different ABB part number means it should not be treated as a direct replacement.
• ABB DSCS116 57520001-BZ — A synchronous communication board listed in the same ABB legacy product family. Its communication function differs from the MasterFieldbus role of .
• ABB DSCA190V 57310001-PK — A communication processor reference within the Advant family. It operates at a different functional level from the MasterFieldbus unit.
• ABB DSBC172 57310001-KD — A bus-related ABB module. It supports system interconnection functions but is not a functional substitute for the .
• ABB DSBB110A 57330001-Y — A shield board used in the broader Advant-era hardware environment. It addresses electrical shielding rather than fieldbus communications.
• ABB DSMB127 57360001-HG — A battery-backed memory board for legacy ABB Advant Master equipment. Its function is retained memory, not communication.
• ABB DSPC173 57310001-MT — A DSPC-series processing module with a different functional role. It should be considered supporting control hardware rather than a substitute.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not replace based only on connector compatibility.
The board belongs to a specific ABB Advant Master/Advant OCS communication architecture. A physically similar card can have a completely different bus function.

How to avoid it: Match + 57310001-LM, system generation, rack location, hardware revision, and the cabinet’s communication drawings.

⚠️ Do not assume a fieldbus fault means the communication board has failed.
A broken fieldbus cable, incorrect termination, station power loss, or configuration problem can produce very similar symptoms.

How to avoid it: Check the communication diagnostics and segment health first. If the fault follows the communication board after controlled substitution, the diagnosis becomes much stronger.

⚠️ Be careful with redundant configurations.
is specifically described as a redundant MasterFieldbus communication unit. Replacing one side of a redundant arrangement without understanding the active/standby configuration can turn a recoverable fault into a larger communication outage.

How to avoid it: Record active/standby status, LED indications, cable connections, and diagnostic information before removing the module.

Frequently Asked Questions (FAQ)

What is ABB 57310001-LM?

ABB 57310001-LM is a MasterFieldbus Communication Unit with redundancy used within ABB’s Advant Master control-system architecture.

Is an I/O module?

No. It is a communication module, not a conventional analog or digital I/O card. Its job is to provide the MasterFieldbus communication layer connecting the control system with field-level equipment.

Does support redundant communication?

Yes. The ABB product description identifies the specifically as a MasterFieldbus Communication Unit with Redundancy.

What systems use ABB ?

The part is associated with the ABB Advant Master / Advant OCS control-system family. Exact compatibility should still be verified against the installed controller and cabinet configuration before procurement.

What are the physical dimensions of ?

Published product information gives approximately 321.3 mm wide × 19.8 mm high, with a stated net weight of 0.46 kg.

How should a used be tested?

A visual inspection is not enough. For a critical spare, testing should verify:

1. Correct board identification and hardware revision.
2. Rack initialization.
3. MasterFieldbus communication.
4. Redundant-channel behavior where applicable.
5. Diagnostic/LED status.
6. Stable communication under sustained operation.

A board that simply powers up on a bench has not necessarily been proven as a good DCS communication spare.
