ABB DSAI130A 3BSE018292R1 Analog Input Board
Product Introduction
Accurate analog acquisition is one of the less visible parts of an older DCS, but a failed input board can quickly become a plant-wide instrumentation problem. The ABB DSAI130A 3BSE018292R1 is a 16-channel differential analog input board designed for ABB Advant process-control hardware. ABB’s product documentation identifies the board specifically as “DSAI 130A Analog Input Board 16 Channels Diff.”, rather than as a generic S800 I/O module.
The ABB DSAI130A 3BSE018292R1 supports ±10 V and ±20 mA differential inputs with a specified 0.025% accuracy. Its procurement history is particularly important: ABB documentation identifies DSAI130A as the revitalized version intended for standard process controllers such as MP200/1 and AC410/AC450/AC460 where common-mode voltage is ≤50 V, while the older DSAI130 57120001-P is retained for specific Safeguard/MasterPiece applications and higher common-mode conditions. That distinction should be checked before treating the two boards as interchangeable.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DSAI130A |
| ABB Product ID | 3BSE018292R1 |
| Manufacturer | ABB |
| Product Type | Analog Input Board |
| I/O Category | Analog Input |
| Number of Channels | 16 |
| Input Configuration | Differential |
| Voltage Input Range | ±10 V |
| Current Input Range | ±20 mA |
| Specified Accuracy | 0.025% |
| Product Family | ABB Advant OCS / S100 I/O |
| Typical Controller Applications | MP200/1, AC410, AC450, AC460 |
| Common-Mode Voltage Context | ≤50 V for the standard process-controller application identified by ABB |
| Board Supply | Supplied through the host system/backplane |
| Installation | System rack / board-level installation |
| Country of Origin Listed | Sweden |
| Condition | Verify actual unit condition and revision |
ABB’s product-detail record confirms the exact product ID 3BSE018292R1, type designation DSAI 130A, and catalog description as a 16-channel differential analog input board.
A note on the input specification
Some secondary listings describe DSAI130A with additional signal types, including 0–10 V and 4–20 mA. Those are commonly encountered industrial signal conventions, but the ABB documentation I could verify for the exact DSAI130/ family specifies ±10 V and ±20 mA. For an engineering or procurement specification, the ABB figures should take precedence.

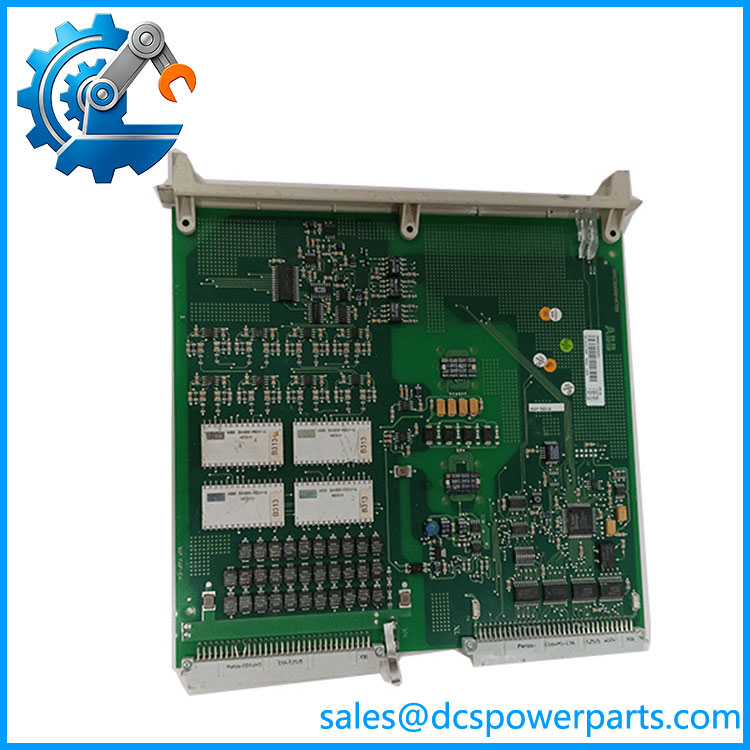

DSAI130A 3BSE018292R1
Application Scenarios & Pain Points
A common mistake with older Advant installations is assuming that any 16-channel analog board can replace a failed DSAI130-family card. The real issue is the input architecture and common-mode environment. A board that looks electrically similar may not belong in the same controller application.
- ABB Advant process-control systems: Used for multichannel analog acquisition from plant instrumentation.
- AC410 / AC450 / AC460 systems: ABB identifies as the revitalized version for standard process-controller applications under the specified common-mode conditions.
- MP200/1 process controllers: Another documented application for the replacement architecture.
- Process instrumentation: Suitable for differential analog measurement where voltage or current signals need to be brought into the ABB control system.
- Legacy DCS maintenance: Particularly relevant when maintaining older ABB Advant installations rather than replacing the complete controller platform.
The practical failure symptoms can include bad process values, unstable readings, several apparently unrelated analog points dropping simultaneously, or one channel remaining fixed despite a known-good field transmitter. Before replacing the board, isolate whether the problem follows the channel, field wiring, terminal interface or board.
Related Products
- DSAI130 — 57120001-P — Original 16-channel differential analog input board. ABB identifies it for Safeguard safety controllers, MasterPiece 2×0 applications, or installations with common-mode voltage above 50 V.
- DSAI133A — 3BSE018290R1 — Related ABB analog input board in the same broader Advant/S100 spare-parts environment.
- DSAI146 — 3BSE007949R1 — Another ABB analog input board used in legacy control-system applications.
- — 3BSE018292R1 — The specific revitalized DSAI130 version covered by this page.
- ABB Advant S100 I/O hardware — Related rack-level I/O infrastructure supporting legacy Advant control systems.
- MasterPiece controller hardware — Host-controller family associated with several DSAI-series analog input applications.
These parts should not be treated as drop-in substitutes solely because they are all analog input boards. Channel architecture, common-mode capability, controller compatibility and system generation matter.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with the original DSAI130
This is the most important procurement issue.
ABB documentation states that is retained for Safeguard safety controllers, MasterPiece 2×0 systems and applications where common-mode voltage exceeds 50 V. For standard process controllers such as MP200/1 and AC410/AC450/AC460 with common-mode voltage ≤50 V, ABB identifies as the revitalized version.
Avoidance: Match the exact ABB product number against the installed controller and signal environment.
2. Do not assume 4–20 mA is the only supported current range
The verified ABB specification states ±20 mA, not merely 4–20 mA.
Avoidance: Check the engineering drawings and channel configuration before connecting field transmitters.
3. Pay attention to common-mode voltage
The distinction between and is not just a cosmetic revision. ABB’s documentation specifically uses the common-mode-voltage condition when defining the appropriate application.
Avoidance: Measure or calculate the actual signal common-mode conditions before selecting the replacement.
4. Do not treat the board as an S800 I/O module
Secondary sellers sometimes loosely classify within modern ABB I/O families. The verified ABB catalog identifies it as an Advant process-control analog input board, so it should not be assumed to use the same architecture as modern S800 I/O modules.
Avoidance: Identify the host rack and controller platform before ordering.
5. Check all 16 channels during troubleshooting
A single bad process value does not automatically indicate a board failure. Conversely, several simultaneous channel failures can be a strong clue toward a shared board, rack or interface problem.
Avoidance: Compare affected channels, field-loop measurements and the DCS diagnostic status before replacing the board.
6. Preserve the original board configuration
With legacy Advant systems, installation details that appear insignificant today can matter during replacement.
Avoidance: Photograph the board label, rack position, connectors and any configuration markings before removal. Keep the original board available until the replacement has been tested.
7. Handle the analog inputs as measurement circuits
Do not assume the input board can tolerate arbitrary external voltages simply because its nominal range is ±10 V or ±20 mA.
Avoidance: Verify transmitter loop power, signal polarity, grounding and common-mode conditions before applying field wiring.
FAQ
What is ABB 3BSE018292R1?
It is a 16-channel differential analog input board for ABB Advant process-control hardware. ABB’s product record gives the type designation as DSAI 130A and the product ID as 3BSE018292R1.
How many analog inputs does have?
The provides 16 analog input channels. The ABB product description specifically identifies it as a 16-channel differential analog input board.
What signal ranges does support?
The verified ABB family documentation specifies ±10 V and ±20 mA differential inputs, with a stated 0.025% accuracy.
Is the same as 57120001-P?
No. They are closely related, but ABB’s documentation assigns them to different application conditions. 3BSE018292R1 is identified as the revitalized version for standard process controllers with common-mode voltage ≤50 V, while 57120001-P remains applicable to specified Safeguard/MasterPiece installations and higher common-mode conditions.
Which ABB systems use ?
ABB specifically identifies standard process-controller applications including MP200/1, AC410, AC450 and AC460, subject to the documented common-mode-voltage condition.
Is part of the modern ABB S800 I/O system?
The verified ABB product record identifies within the older Advant process-control / S100 I/O architecture. It should not be assumed to be a modern S800 I/O module merely because some secondary listings categorize it broadly as an ABB I/O product.
What should be checked before purchasing a replacement?
Confirm the complete / 3BSE018292R1 number, host controller type, rack position, input signal range, common-mode voltage, board revision and existing field wiring. If the installed board is actually , do not substitute until the application conditions have been checked against ABB’s replacement guidance.
Is suitable for legacy DCS replacement projects?
Yes, where the installed system matches the documented application. This is specifically a legacy Advant control-system spare, so compatibility should be established at the controller/rack level rather than by treating it as a generic analog input module.
