Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DI651 |
| Product ID | 3BHT300026R1 |
| Manufacturer | ABB |
| Product Type | S600 I/O Digital Input Module |
| Input Channels | 32 |
| Input Voltage | 48 VDC |
| Channel Type | Digital Input |
| Isolation | Opto-isolated in four groups |
| Special Functions | Sequence of Event (SOE), pulse catching |
| Dimensions | Approx. 252 × 273 × 40 mm |
| Net Weight | Approx. 1.23 kg |
| System Association | ABB Advant Master / S600 I/O |
| RoHS Status | Exempt under specified Article 2(4) provisions for the applicable Advant Master system documentation |
ABB documentation identifies 3BHT300026R1 as the DI651 Digital Input module with 32 channels and 48 VDC isolated inputs. The module uses optical isolation arranged in four groups and supports sequence-of-event or pulse-catching capability.
Product Introduction

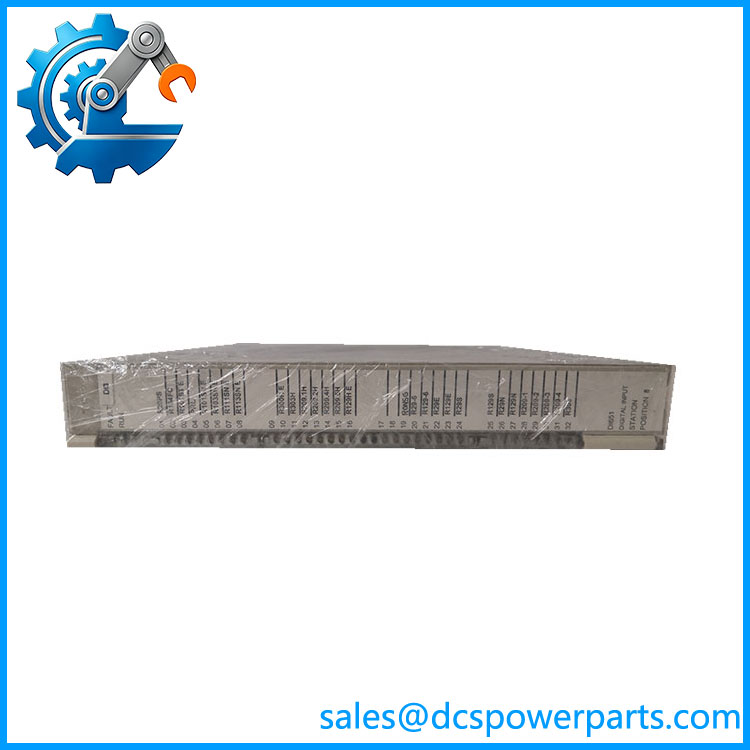

ABB DI651 3BHT300026R1 Digital Input Module
The ABB DI651 3BHT300026R1 is a 32-channel digital input module for the ABB S600 I/O architecture used with Advant Master process control systems. It accepts 48 VDC field switching signals and transfers their states into the control system for logic, interlocking, alarm, and sequence monitoring functions. The inputs are optically isolated in four groups rather than individually isolated.
Its value is mainly practical: high channel density in a relatively narrow module and dedicated support for SOE and pulse-catching applications. For maintenance teams supporting an installed Advant Master system, matching the exact module identifier matters more than selecting a superficially similar 32-channel DI card.
DI651 3BHT300026R1
Application Scenarios & Field Pitfalls
Engineering Pain Point
A failed digital input card can create a surprisingly difficult troubleshooting session. The field device may be healthy, the wiring may test correctly, and the controller may remain online while one group of status signals disappears. With the DI651 3BHT300026R1, engineers should first separate a field-wiring problem from a module-level problem and then determine whether the affected signals belong to the same isolation group. That grouping is important because the module provides isolation between groups, not channel-by-channel isolation.
Typical Applications
- Power Generation — breaker position, auxiliary contacts, turbine permissives, and plant interlocks.
- Petrochemical — valve open/closed feedback, motor running status, trip contacts, and alarm inputs.
- Water & Wastewater — pump status, level switch states, valve feedback, and equipment alarms.
- Process Manufacturing — machine interlocks, limit switches, relay contacts, and pulse/event monitoring.
Technical Pitfalls to Avoid
- Do not assume individual channel isolation.
DI651 uses opto-isolation in four groups. If a project requires independent galvanic isolation for every field circuit, this module is not equivalent to a fully channel-isolated design. - Verify the 48 VDC field level before installation.
This is a 48 VDC digital input module. Do not substitute a visually similar S600 input module simply because its connector or channel count appears compatible. - Check the exact part number and system documentation.
and 3BHT300026R1 identify the same product, but older Advant Master installations can contain different module generations and configurations. Verify the I/O configuration and applicable ABB documentation before replacing hardware. - Treat SOE and pulse-catching requirements separately from ordinary DI status.
If the existing application depends on event timing or pulse detection, confirm that the replacement is configured and tested for the actual application rather than validating only basic ON/OFF input operation.
Related Products
- ABB DI650 3BHT300025R1 — A related S600 digital input module with a different channel configuration. Useful when the existing I/O design calls for the DI650 rather than the 32-channel ; verify the original system configuration before substitution.
- ABB DO620 3BHT300009R1 — S600 digital output module with 32 channels. It complements where the same control application requires both field-status acquisition and discrete output control.
- ABB AO650 3BHT300051R1 — Analog output module for applications requiring continuous control signals rather than discrete status inputs. It is complementary hardware, not a direct replacement.
- ABB AI625 3BHT300036R1 — Analog input module intended for continuously varying process signals. Use it for measurements such as process instrumentation rather than two-state field contacts.
- ABB CI801 — S800/-related communication interface hardware used within ABB control-system I/O architectures. Its role is communication rather than direct field digital input acquisition.
- ABB TU846 — Terminal/termination-unit hardware associated with ABB I/O installations. It addresses field wiring and module termination requirements rather than replacing the electronics.
- ABB DI840 3BSE020836R1 — A different ABB digital-input product intended for later S800 I/O applications. It should be treated as an architectural alternative only after checking controller, communication, termination, and configuration compatibility.
- ABB AO810 3BSE008522R1 — S800 analog-output hardware for continuous output applications. It complements digital I/O but is not functionally interchangeable with .
Procurement note: For an installed Advant Master system, the safest replacement criterion is the complete identification / 3BHT300026R1, followed by confirmation of the existing I/O configuration, field voltage, termination hardware, and required SOE/pulse functionality. ABB’s product documentation specifically identifies this part as a 32-channel, 48 VDC isolated digital input module.
