Description

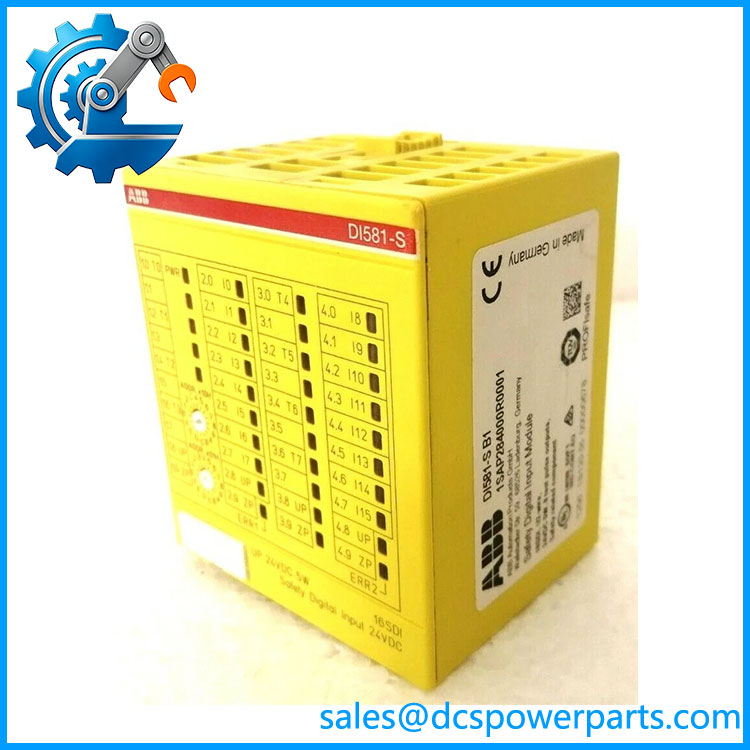

ABB DI581-S Safety Digital Input Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DI581-S |
| Part Number | 1SAP284000R0001 |
| Product Family | AC500-S / S500 Safety I/O |
| Product Type | Safety Digital Input Module |
| Digital Inputs | 16 |
| Input Voltage | 24 VDC |
| Input Type | IEC 61131-2 Type 1 |
| SIL Capability | Up to SIL 2 with 16 inputs; up to SIL 3 with 8 inputs |
| Test Pulse Outputs | 8 phase-shifted test pulse channels |
| Input Delay | Configurable, 1–500 ms |
| Typical Input Current | 7 mA at 24 VDC |
| Signal 0 | -3 to +5 V |
| Signal 1 | +15 to +30 V |
| Process Supply | 24 VDC |
| Process Supply Range | -15% / +20% |
| Max. Cable Length | 1000 m shielded / 600 m unshielded |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Protection | IP20 for complete PLC system |
| Dimensions | 67.5 × 76 × 62 mm |
| Weight | Approx. 130 g |
| Mounting | Horizontal or vertical; vertical mounting requires temperature derating |
| Certifications | CE, cUL |
Technical data above is based on ABB’s DI581-S documentation.
Product Introduction
The ABB DI581-S is a safety digital input module in the AC500-S S500 safety I/O family, designed to process 24 VDC safety signals in applications requiring certified safety control. It provides 16 safety digital input channels, with the channel configuration supporting up to SIL 2 operation across all 16 inputs or up to SIL 3 operation using 8 inputs, depending on the safety configuration. The module also provides eight phase-shifted test pulse outputs for sensor and circuit monitoring.
The ABB DI581-S can operate locally with AC500-S CPUs or as a remote safety I/O module through compatible PROFINET/PROFIsafe infrastructure. ABB documentation identifies applications including emergency-stop circuits, guard monitoring, and other safety-related discrete signals. Built-in startup and runtime diagnostics cover functions such as CPU/RAM checks, program-flow monitoring, cross-talk detection, and stuck-at fault testing.
DI581-S
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The DI581-S is most useful where conventional 24 VDC digital inputs are insufficient because the input signal itself forms part of a functional-safety circuit. Typical applications include emergency-stop devices, machine guard switches, safety interlocks, light curtains, zone monitoring, and other discrete safety sensors. The module supports one-channel, two-channel equivalent, and two-channel antivalent configurations, allowing the safety application to be designed around the required fault-detection strategy.
A few points deserve attention during replacement or retrofit:
- Do not treat as a standard S500 digital input module. Its configuration, diagnostics, PROFIsafe addressing, and safety parameters must match the AC500-S safety application.
- SIL level depends on the actual channel configuration and safety architecture. Having a SIL 3-capable module does not automatically make the complete machine or safety function SIL 3.
- Terminal unit compatibility matters. ABB documentation shows the installed on the TU582-S terminal unit.
- Input delay affects safety response. The delay is configurable from 1 to 500 ms, so replacing a module without checking the existing safety parameters can change the response time of the safety function.
- PROFIsafe configuration must be preserved. The module uses rotary switches for its PROFIsafe address, and the configured safety parameters need to agree with the safety project.
For a field replacement, I would verify the complete ordering code, terminal unit, AC500-S CPU/PROFINET interface, PROFIsafe address, safety project configuration, firmware/revision, and validated safety response time before putting the machine back into service.
Related Products
- ABB TU582-S — Terminal unit used with ; verify the terminal arrangement before replacement.
- ABB DX581-S — Safety digital input/output module combining safety inputs and outputs; it is not a direct functional substitute for .
- ABB AI581-S — Safety analog input module for safety-related analog signals rather than discrete 24 VDC inputs.
- ABB SM560-S — AC500-S safety CPU module responsible for the safety control logic rather than field-level digital input acquisition.
- ABB CI501-PNIO — PROFINET interface used in architectures where is deployed as remote safety I/O.
- ABB CI502-PNIO — Another PROFINET interface option supporting the safety I/O architecture.
- — Extended-environment version for applications requiring wider environmental capability.
