Description
ABB CI541V1 3BSE014666R1 | PROFIBUS-DP Interface Submodule | Advant Controller Communication
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | CI541V1 |
| Product ID | 3BSE014666R1 |
| Product Type | PROFIBUS Interface Submodule |
| Communication Protocol | PROFIBUS-DP |
| Communication Channels | 1 |
| System Family | Advant OCS / AC400 |
| Primary Controller | Advant Controller 450 |
| Maximum Interfaces | Up to 8 in documented AC450 configuration |
| Submodule Carrier Context | SC510 / SC520 architecture |
| Product Depth / Length | 255 mm |
| Product Height | 20 mm |
| Product Width | 125 mm |
| Product Net Weight | 0.17 kg |
| Application | Distributed field-device communication |
ABB’s current product-detail information confirms the product type and physical dimensions, while ABB’s Advant Controller 450 documentation identifies as the dedicated PROFIBUS-DP interface and specifies the controller’s capacity for up to eight interfaces.
Important specification note: Some secondary listings attribute modern AC 800M functions, DIN-rail mounting, or unrelated Ethernet/PROFINET capabilities to this part. Those claims should not be applied to 3BSE014666R1 without documentation for the exact hardware. ABB’s own documentation places this part in the legacy Advant Controller communication architecture.
Product Introduction
The ABB 3BSE014666R1 is a dedicated PROFIBUS-DP interface submodule used to connect an ABB Advant controller to PROFIBUS-DP field devices. In the Advant Controller 450 architecture, it functions as a communication option alongside other interface modules such as CI531, CI532Vxx, CI522A, CI570, and CI543. The module is intended for the controller’s communication-submodule architecture rather than serving as a standalone modern fieldbus gateway.
For maintenance engineers, the important characteristic of 3BSE014666R1 is its system-specific role. ABB documentation identifies it as a one-channel PROFIBUS-DP interface, and the AC450 product documentation allows up to eight interfaces. This makes the exact module revision important when maintaining an established Advant OCS installation where PROFIBUS device configuration is already part of the running application.

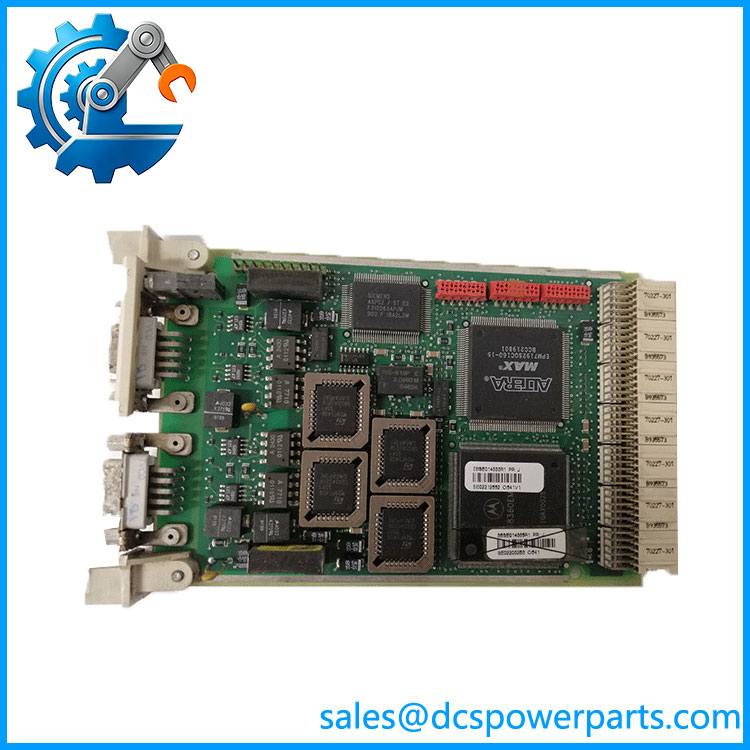

CI541V1 3BSE014666R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common problem with legacy DCS communication cards is assuming that a similar-looking interface module can be substituted simply because both products use PROFIBUS. With , the communication function is tied to the Advant Controller architecture, so the controller generation, carrier arrangement, application configuration, and PROFIBUS network design all matter.
Typical Applications
- Advant Controller 450 systems — adding or maintaining PROFIBUS-DP communication within an AC450 process controller.
- Legacy Advant OCS installations — maintaining existing PROFIBUS-connected field equipment without redesigning the controller architecture.
- Distributed I/O networks — connecting PROFIBUS-DP field-level devices to the Advant controller.
- Drive and auxiliary-equipment integration — maintaining established PROFIBUS communications where drives or other intelligent field devices are already configured around the legacy DCS.
- DCS migration preparation — keeping the original PROFIBUS interface operational while a larger control-system migration is engineered.
Technical Pitfalls to Avoid
- Do not confuse with a generic PROFIBUS gateway. ABB explicitly identifies the part as a PROFIBUS-DP interface submodule for the Advant Controller architecture. It is not automatically interchangeable with newer ABB PROFIBUS interfaces.
- Do not substitute by the CI prefix alone. CI531, CI532, CI535, , CI543, CI570, and other communication modules have different protocol functions. The exact suffix V1 and part number 3BSE014666R1 should be matched against the existing hardware documentation.
- Verify the controller version. ABB’s Advant Controller 450 documentation explicitly identifies as the PROFIBUS-DP interface option. Older AC400 configurations can differ in available communication options and software support.
- Check the submodule carrier. belongs to the Advant communication-submodule architecture. Confirm the installed SC510/SC520 arrangement and available submodule position before ordering a replacement.
- Preserve PROFIBUS configuration data. Replacing the physical interface does not remove the engineering risk associated with node addresses, bus parameters, device configuration, diagnostics, and application mapping. Back up the controller configuration before hardware replacement.
- Do not use modern AC 800M specifications from unrelated listings. Several current reseller pages incorrectly associate this exact part number with AC 800M, DIN-rail installation, Ethernet, PROFINET, or generic multi-protocol functionality. ABB’s own AC450 documentation gives the more reliable system context.
- Inspect surplus hardware carefully. This is a legacy Advant OCS communication component. For a maintenance spare, inspect the connector, PCB condition, storage history, and revision marking before installation. A powered functional test against the existing controller configuration is preferable to relying only on visual inspection.
Related Products
- ABB 3BSE014666R1 — the one-channel PROFIBUS-DP interface itself; use the exact part number when replacing an installed unit.
- ABB SC510 — submodule carrier used with Advant Controller communication interfaces; verify the carrier configuration before replacement.
- ABB SC520 3BSE003816R1 — related submodule carrier for Advant Controller architectures with different system configurations.
- ABB CI531 3BSE003825R1 — two-channel V.24/RS-232 communication interface; complementary serial communication rather than a PROFIBUS substitute.
- ABB CI532V02 3BSE003827R1 — two-channel RCOM/RCOM+ interface; used for a different communication function.
- ABB CI532V03 3BSE003828R1 — communication variant for Siemens 3964(R) protocol applications in the Advant architecture.
- ABB CI522A 3BSE018283R1 — Advant Fieldbus 100 interface; useful when the plant architecture contains AF100 rather than PROFIBUS-DP.
- ABB CI570 — MasterFieldbus interface option for the Advant Controller 450.
- ABB CI572 3BSE017712R1 — LONWORKS network interface, representing another communication option in the same general controller architecture.
- ABB CI535V30 3BSE022162R1 — SPA Server / SPA Bus interface variant; functionally different from and should not be substituted for PROFIBUS-DP applications.
Procurement Note
For 3BSE014666R1, the primary procurement check is protocol and controller compatibility, not simply physical fit. Confirm that the installed system requires PROFIBUS-DP, verify the Advant Controller generation and submodule carrier, and match the complete ABB part number before ordering.
ABB’s current spare-parts documentation still lists 3BSE014666R1 / as the PROFIBUS-DP Interface, while the Advant Master/AC400 platform itself is a legacy control-system generation. For plant maintenance, an exact tested spare is preferable to an unverified newer PROFIBUS module.
