Description

ABB CI522A 3BSE018283R1 | Advant Fieldbus 100 Interface | Redundant S800 I/O Communication

Key Technical Specifications

ABB documentation confirms the interface classification, its I/O connection role, and its inclusion in Advant Controller 410, 450, 450RMC, and AC460 communication-module configurations.

The user manual identifies the CI522 communication interface as the interface used in the Advant Controller 400 Series for Advant Fieldbus 100 communication. Configuration includes parameters such as bus number, station number, master operation, time synchronization, cable type, and bus length; the manual example shows a 2000 m bus-length parameter.

Procurement caution: Public listings sometimes incorrectly place this exact part in an AC 800M architecture or describe it with generic Ethernet, PROFIBUS, or RS-485 specifications. Those claims should not be transferred to 3BSE018283R1 without the applicable ABB hardware documentation. ABB’s own product classification places this part in the Advant Controller 400 / Advant OCS communication architecture.

Product Introduction

The ABB 3BSE018283R1 is an Advant Fieldbus 100 communication interface used to connect an Advant Controller 400-series system with ABB I/O. It sits in the controller’s communication-submodule architecture and provides the network interface required for exchanging I/O and system data between the controller and distributed I/O stations. ABB specifically identifies redundant communication with I/O as part of its function.

For an operating legacy Advant installation, the value of 3BSE018283R1 is primarily compatibility with the existing architecture. It is not simply a generic fieldbus converter. Controller firmware, configuration, submodule-carrier arrangement, external communication hardware, and I/O configuration all need to be considered before replacement.

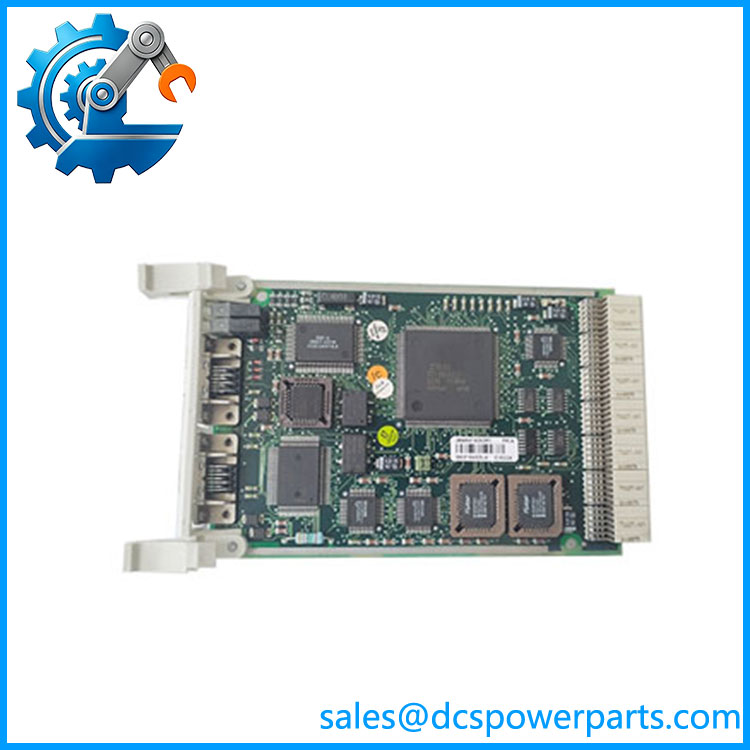

CI522A 3BSE018283R1

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

When an older Advant controller loses its interface, the controller CPU and I/O hardware may still be perfectly serviceable, yet the field I/O data path can disappear. The practical repair is therefore not just replacing a communication board; the replacement must fit the existing topology, redundancy arrangement, controller generation, and I/O configuration.

Typical Applications

• Advant Controller 450 systems — maintaining the communication path between the controller and I/O.
• Advant Controller 410 installations — ABB documents as a communication option for the AC410 architecture.
• AC460 / Advant MOD 300 systems — maintaining legacy -based I/O communications.
• Redundant I/O systems — supporting installations where communication-interface redundancy is part of the control-system design.
• Legacy DCS migration projects — keeping the existing / I/O layer operational while migration work is performed at the controller or supervisory level.

Technical Pitfalls to Avoid

1. Do not mistake for a generic I/O adapter. The module’s specific role is an Advant Fieldbus 100 interface within the Advant Controller architecture.
2. Redundancy must be checked at the system level. CI522 communication interfaces can be configured as single or redundant arrangements. A replacement strategy should therefore confirm whether the existing cabinet uses one interface or a redundant pair rather than assuming one-for-one replacement is sufficient.
3. Check the external hardware. The CI522 architecture uses external communication/modem components in applicable installations. Secondary technical documentation identifies components such as TC516, TC625 and TK803 cables as part of the communication arrangement. Verify the installed cabinet drawings before changing the interface module.
4. Verify controller software compatibility. Current documentation associates with Advant Controller 410, Advant Controller 450, and AC460 system configurations. The applicable controller version and communication configuration should be confirmed before installation.
5. Do not substitute CI522 and casually. is the later designation associated with 3BSE018283R1, while the original CI522 has a different ABB part number. A physical fit does not establish firmware or application equivalence.
6. Do not import AC 800M specifications into an AC400 product page. This is one of the more common errors in current reseller data. ABB’s own classification identifies 3BSE018283R1 under AC400 communication modules and Advant Controller 450/410/450RMC configurations.
7. Back up the configuration before replacement. Bus number, station number, master settings, bus length, timing parameters, and redundant-module addressing are configuration items that should be documented before disturbing a running system. The manual explicitly exposes these parameters in the CI522 configuration.
8. Test a surplus spare under realistic conditions. For a legacy communication module, visual inspection alone is not enough. Check connectors, board condition, storage history, communication diagnostics, and redundant-channel behavior where applicable.

Related Products

• ABB 3BSE012790R1 — earlier Advant Fieldbus 100 interface designation; do not assume it is a direct firmware-equivalent replacement for without checking the controller baseline.
• ABB CI522AK04 3BSE018451R1 — Communication Interface Kit associated with -based applications.
• ABB CI522AK06 3BSE018453R1 — interface kit for bus-redundancy applications.
• ABB CI520V1 3BSE012869R1 — interface module from the same broader communication family.
• ABB CI541V1 3BSE014666R1 — PROFIBUS-DP interface; a different fieldbus function and not a substitute for communication.
• ABB CI534V02 3BSE010700R1 — MODBUS interface; useful for MODBUS applications but not an replacement.
• ABB CI532V02 3BSE003827R1 — MODBUS interface from the older Advant communication-module family.
• ABB CI540 3BSE001077R1 — S100 I/O bus extension interface used elsewhere in the Advant architecture.
• ABB CI810A — I/O communication interface used on I/O stations; its system role is different from the controller-side .

Procurement Note

For 3BSE018283R1, verify the exact ABB part number, Advant controller model/version, network arrangement, I/O configuration, and redundancy requirement before issuing a purchase order. The important distinction is that this is a controller-side interface, not a generic I/O module.

ABB’s current spare-parts documentation continues to list 3BSE018283R1 / as an interface, while the associated Advant Master/AC400 platform is a legacy control-system population. For a running plant, an exact tested spare is generally a safer maintenance choice than an apparently similar communication interface from another CI5xx family.
