The ABB CAI04 is a Compact Analog Input Module designed for the ABB Symphony Plus control platform. It belongs to the SD Series I/O family and provides eight independently configurable thermocouple (TC) and millivolt (mV) input channels for process measurement applications. The module is designed to interface field instrumentation signals with Symphony Plus controllers, allowing temperature and low-level voltage measurements to be processed within distributed control and automation systems.
The ABB CAI04 2VAA008414R1 is commonly applied in process industries where accurate temperature acquisition is required, including power generation, water treatment, chemical processing, and industrial utility systems. Each input channel can be configured independently for different thermocouple types or millivolt ranges, providing flexibility when integrating mixed field instruments within a single I/O node.
The ABB CAI04 supports thermocouple types including E, J, K, R, S, T, B, L, N, U, and Chinese E/S variants, as well as ±100 mV and 0–100 mV input ranges. The module uses 16-bit analog-to-digital conversion with polarity and provides automatic calibration, reducing maintenance requirements during operation. Cold Junction Compensation (CJC) can be configured through an embedded RTD in the mounting base, an external RTD connection, or a control-logic input depending on the application design.
The ABB CAI04 should be considered part of a complete Symphony Plus SD Series I/O installation. The module requires a compatible mounting base such as cHBS01-CJC or cVBS01-CJC, which provides field termination and connection to the HN800 I/O bus. When replacing an installed unit, engineers should verify the exact module type, base hardware, controller configuration, and I/O database settings before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Family | Symphony Plus |
| Series | SD Series I/O |
| Model | CAI04 |
| Article Number | 2VAA008414R1 |
| Product Type | Compact Analog Input Module |
| Signal Type | Thermocouple / mV Input |
| Number of Channels | 8 Analog Input Channels |
| Input Configuration | Independently configurable channels |
| Thermocouple Types | E, J, K, R, S, T, B, L, N, U, Chinese E, Chinese S |
| mV Input Range | 0 to 100 mV / -100 to +100 mV |
| A/D Resolution | 16-bit with polarity |
| A/D Conversion | 2 converters, each serving 4 channels |
| Update Rate | 300 ms for all 8 channels |
| Accuracy | ±0.05% of Full Scale Range |
| Cold Junction Compensation | Embedded RTD / External RTD / Application Input |
| Isolation | Galvanic isolation, 1500 V up to 1 minute |
| Noise Rejection | Normal Mode: -70 dB minimum |
| Common Mode Rejection | -90 dB minimum |
| Power Supply | 24 VDC ±10% |
| Current Consumption | 65 mA typical / 73 mA maximum |
| Mounting | Horizontal Row or Vertical Column |
| Form Factor | Compact 127 mm |
| Supported Bases | cHBS01-CJC / cVBS01-CJC |
| Communication Bus | HN800 I/O Bus |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Humidity Range | 20% to 95% RH non-condensing |
| Maximum Cable Length | 600 m |
| Status Indicators | Run, Fault, Channel LEDs |
| Local Diagnostics | Mini USB connection |
| Remote Diagnostics | HN800 device diagnostics |

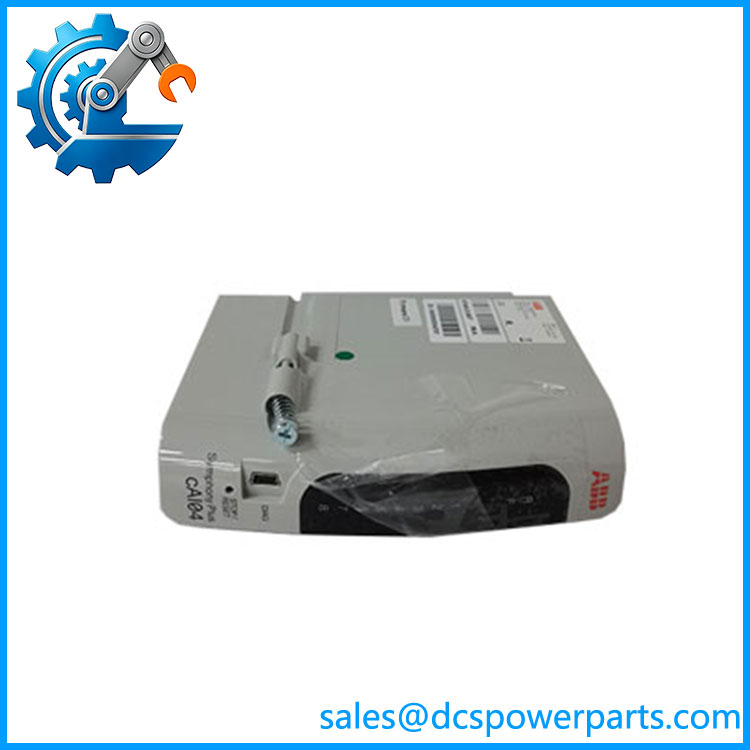

CAI04
Specifications are based on ABB Symphony Plus SD Series I/O documentation.
Main Features and Advantages
8-Channel Thermocouple and mV Acquisition
The main function of the ABB CAI04 is reliable acquisition of low-level analog signals from field devices. The module supports eight TC/mV channels, allowing temperature transmitters, thermocouples, and millivolt-based sensors to connect directly to the Symphony Plus I/O architecture.
Each channel is independently configurable, which simplifies integration when different sensor types exist within the same process area. A single module can handle different thermocouple types without requiring separate hardware for each measurement category.
High-Resolution Analog Conversion
The CAI04 2VAA008414R1 uses 16-bit analog-to-digital conversion with polarity. Two A/D converters are assigned across the eight input channels, enabling the module to update all channels within approximately 300 milliseconds.
For temperature measurement applications, this resolution helps maintain accurate process values for control loops, alarms, and monitoring functions.
Configurable Cold Junction Compensation
Thermocouple measurement accuracy depends heavily on proper cold junction compensation. The ABB CAI04 supports multiple CJC methods:
- Internal RTD located in the mounting base
- External RTD connected through the base terminal
- Application-based compensation value from control logic
This provides engineers flexibility when designing temperature measurement systems.
Automatic Calibration
The module includes automatic calibration functions, eliminating the need for manual calibration procedures during normal maintenance activities. This reduces service effort when maintaining large I/O installations.
Symphony Plus Integration
The ABB CAI04 is configured through Symphony Plus function blocks, including:
- FC 221 – I/O Device Definition
- FC 222 – Analog Input Channel Configuration
These functions define module parameters, engineering units, alarm limits, and channel-specific settings.
Compact SD Series Design
The compact form factor allows the CAI04 to be installed in space-limited control cabinets while maintaining compatibility with ABB’s SD Series modular I/O approach. The module can be installed with compact mounting bases designed specifically for TC/mV applications.
Diagnostics and Maintenance
Front-panel status LEDs provide module and channel-level diagnostic information. Local diagnostics are available through the front Mini USB connection, while remote diagnostics can be accessed through the HN800 system interface.
