Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | AO845A-EA |
| Article Number | 3BSE045584R1 |
| Product Type | Analog Output Module |
| Product Family | S800 I/O |
| Controller Platform | ABB System 800xA / AC 800M |
| Number of Channels | 8 |
| Signal Type | Unipolar analog output |
| Output Range | 4-20mA |
| Resolution | 12-bit |
| Output Load | Maximum 750Ω |
| HART Support | Yes, pass-through communication |
| Redundancy Support | Yes |
| Isolation | Groupwise isolated from ground |
| Update Cycle Time | 10ms |
| Accuracy Error | Maximum 0.1% |
| Temperature Drift | Maximum 50ppm/°C |
| Maximum Cable Length | 600m |
| Short Circuit Protection | Current-limited output |
| Operating Temperature | 0°C to +55°C |
| Mounting Compatibility | TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852 MTUs |
| Dimensions | 45 × 119 × 102mm |
| Weight | Approx. 0.21kg |
Product Introduction
ABB AO845A-EA Overview
The ABB AO845A-EA is an S800 I/O analog output module designed for ABB System 800xA and AC 800M automation platforms. It provides eight 4-20mA output channels for controlling field devices such as control valves, actuators, variable speed drives, and other analog-controlled equipment.
The ABB AO845A-EA supports single or redundant configurations and includes HART pass-through capability for intelligent field device communication. It is commonly installed in process industries where reliable analog control outputs and diagnostic visibility are required.

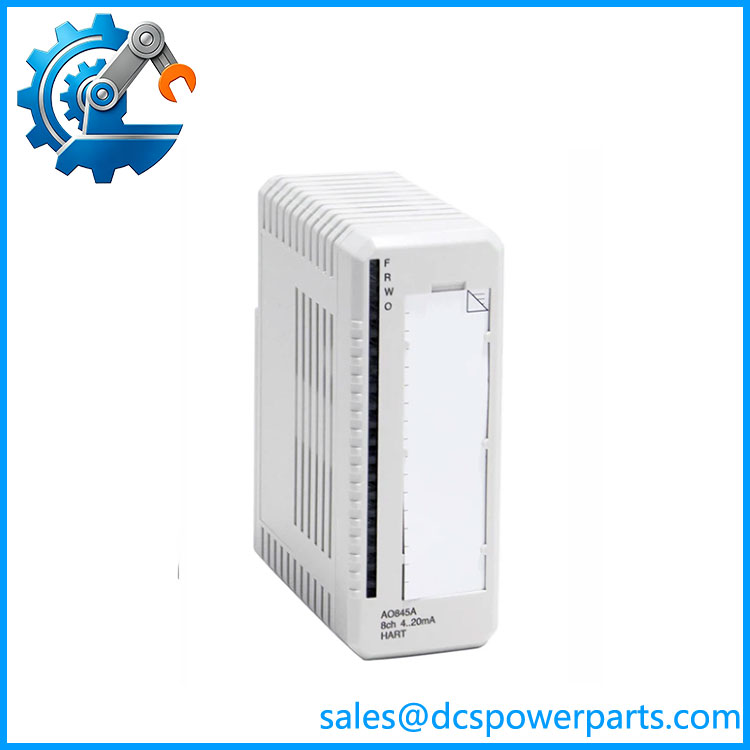

AO845A-EA
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A control valve stops responding correctly during normal operation. The DCS output command changes, but the actuator position does not follow. Engineers often check the valve first, but the issue can be anywhere in the analog output chain: configuration, wiring, field power, or the I/O module itself.
The AO845A-EA sits directly between the controller logic and the final control element. A small output deviation can affect process stability, especially in continuous processes where valve position directly impacts temperature, pressure, flow, or level control.
Typical Applications
- Oil & Gas Processing – 4-20mA control signals for pressure control valves, flow valves, and compressor auxiliary systems.
- Chemical Plants – Analog regulation of dosing pumps, reactor control valves, and process actuators.
- Power Generation – Boiler controls, fuel regulation systems, and auxiliary equipment analog commands.
- Water Treatment Facilities – Pump speed references, chemical injection control, and flow regulation systems.
Technical Pitfalls to Avoid
- Verify Output Loop Power Design
The AO845A-EA provides current outputs, but the complete loop design matters. Confirm whether the field device requires loop-powered or externally powered wiring.
- Check HART Signal Requirements
HART communication requires proper field wiring practices. Shielding, grounding, and device compatibility should be verified before commissioning.
- Confirm MTU Compatibility
The uses specific S800 termination units. Verify the installed MTU model and keying configuration before replacement.
Related Products
- ABB AO845 3BSE023675R1
Previous generation S800 analog output module. Similar 8-channel 4-20mA function, but verify keying code and hardware revision before substitution. - ABB AO820 3BSE008546R1
Four-channel analog output module supporting voltage and current signal ranges. Used for applications requiring different signal types than . - ABB AO890 3BSC690072R1
Intrinsically safe analog output module variant. Used for hazardous area applications requiring IS certification. - ABB AO895 3BSC690087R1
HART-enabled analog output module variant for specific hazardous-area applications. - ABB AI845 3BSE023675R1
S800 analog input module used for receiving process measurements such as pressure, temperature, and flow transmitter signals. - ABB CI854A PROFIBUS Interface Module
Communication module commonly used with AC 800M systems where PROFIBUS field devices are integrated. - ABB PM865K01 3BSE031151R1
AC 800M High Integrity processor unit. Provides controller execution for compatible S800 I/O architectures. - ABB TU852 3BSE069964R1
termination unit compatible with installations, providing field wiring termination and module connection.
