Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AI04 |
| Manufacturer | ABB |
| Product Family | Symphony Plus SD Series I/O |
| Product Type | Thermocouple / Millivolt Analog Input Module |
| Number of Channels | 16 independently configurable channels |
| Signal Type | TC / mV Analog Input |
| Thermocouple Types | B, E, J, K, L, N, R, S, T, U, Chinese E, Chinese S |
| mV Input Range | -100 to +100 mV |
| A/D Resolution | 16-bit with polarity |
| A/D Conversion | 4 converters, each serving 4 channels |
| Update Rate | 300 ms for all 16 channels |
| Accuracy | ±0.05% FSR (FSR = 200 mV) |
| Isolation | Galvanically isolated, 1500 V up to 1 minute |
| Channel Isolation | 1 × 16 group isolation |
| Cold Junction Compensation | Embedded RTD, external RTD, or application input configurable |
| Power Supply | 24 VDC ±10% |
| Typical Current Consumption | 65 mA typical, 73 mA maximum |
| Communication | Symphony Plus I/O communication architecture |
| HART Support | No |
| SOE Support | No |
| Redundancy | No |
| Mounting | Horizontal row or vertical column |
| Dimensions | 27 × 106 × 190 mm |
| Weight | Approx. 228 g |
| Operating Temperature | -40°C to +70°C |
| Protection Class | IP20 |
Product Introduction

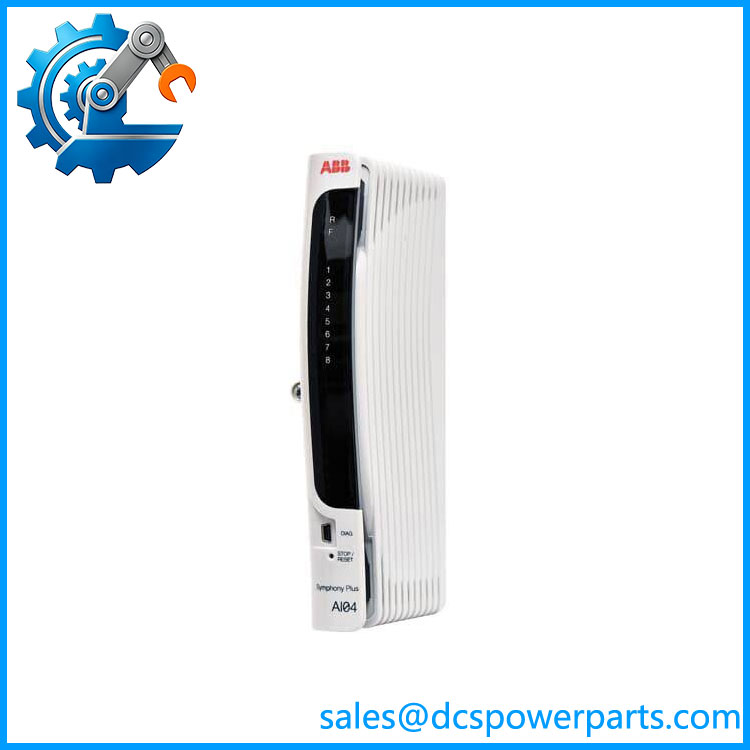

ABB AI04 Product Introduction
ABB AI04 is a Symphony Plus SD Series analog input module designed for temperature and low-level analog measurement applications. It processes up to 16 thermocouple or millivolt input signals, with each channel independently configurable through the Symphony Plus controller engineering environment.
The ABB AI04 is commonly selected for process applications where multiple temperature measurement points must be integrated into a DCS architecture. Its built-in calibration, configurable cold junction compensation, and isolated input design simplify maintenance of existing Symphony Plus installations.
AI04
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A boiler or process unit begins showing unstable temperature readings after years of continuous operation. Operators suspect the thermocouples first, but the actual issue may be signal conditioning, channel configuration, or input module degradation.
Analog input modules are simple compared with controllers, but they directly affect process decisions. A small scaling or wiring error can create incorrect temperature values and unnecessary process interventions.
Typical Applications
- Power Generation – Boiler temperature monitoring, turbine auxiliary temperature measurement, and heat recovery system monitoring.
- Oil & Gas – Furnace temperature measurement, compressor skid monitoring, and process heater control.
- Chemical Processing – Reactor temperature monitoring, distillation column temperature measurement, and batch process control.
- Water Treatment – Pump station temperature monitoring and auxiliary equipment condition monitoring.
Technical Pitfalls to Avoid
- Verify Thermocouple Type Configuration
The AI04 supports multiple thermocouple types, but the configured channel type must match the actual field sensor. Incorrect selection can create inaccurate readings. - Check Cold Junction Compensation Settings
Temperature measurement accuracy depends on proper CJC configuration. Verify whether the system uses the internal RTD, external RTD, or application-based compensation. - Inspect Field Wiring and Shielding
Thermocouple circuits are low-level signals. Poor shielding, incorrect polarity, or damaged extension cables can appear as module faults.
Related Products
- ABB AI03
RTD analog input module for Symphony Plus SD Series systems. Designed for resistance temperature detector measurements rather than thermocouple inputs. - ABB AI05
HART analog input module supporting higher-level analog signals such as 4–20 mA with HART communication capability. Used for smart transmitters and process instrumentation. - ABB AI06 8VZZ002136R01
Universal analog input module supporting high-level analog, mV, thermocouple, and RTD signals. Used when mixed signal types are required. - ABB AO01
Analog output module for generating control signals to field devices such as valves and actuators. Used together with AI modules in closed-loop control applications. - ABB DI01
Digital input module for discrete field signals such as switches, alarms, and status contacts. Used alongside AI04 in complete process I/O configurations. - ABB cAI04 2VAA008414R1
Compact analog input module variant with 8 TC/mV channels for installations requiring reduced I/O density. - ABB HBS01-CJC Base Unit
Mounting base supporting cold junction compensation functions and field connection requirements. - ABB VBS01-CJC Base Unit
Alternative mounting base option for installations depending on cabinet layout and system design.
