Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | XUD194 |
| Order Number | 3BHE018137R0001 |
| System Platform | AC800PEC / PCS6000 |
| Product Type | RCI-Box Remote Control Interface Module |
| Main Function | Digital-to-analog signal monitoring interface |
| Application | Converter commissioning and diagnostics |
| Input Voltage | 24 VDC |
| Monitoring Channels | Up to 8 channels simultaneously |
| Signal Processing | Converts internal digital measurements to analog outputs |
| Output Interface | Oscilloscope measurement connection |
| Communication | PCS6000 service interface |
| Installation | External service/commissioning connection |
| Typical Equipment | Medium-voltage converters, power electronics systems |
Product Introduction
ABB XUD194 3BHE018137R0001 Overview

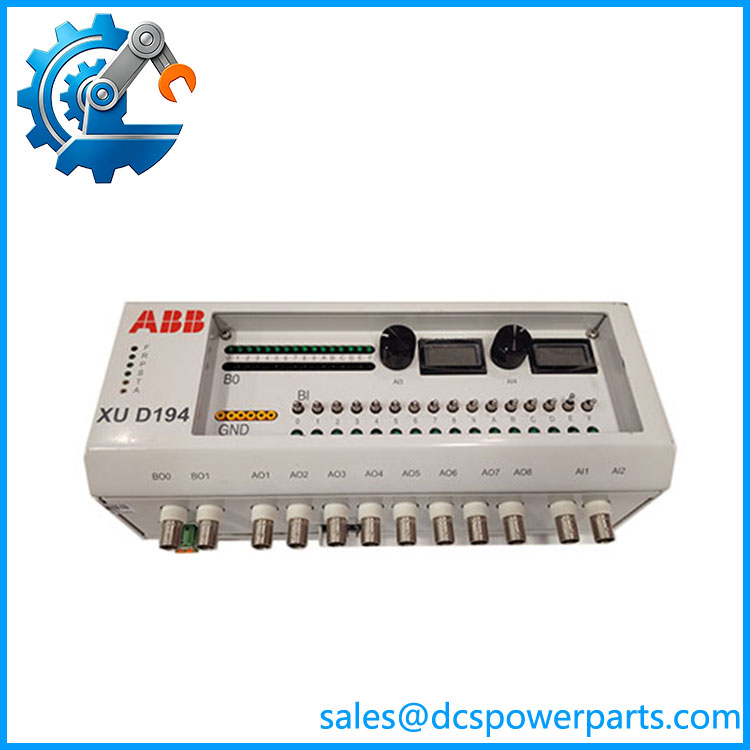

The ABB XUD194 3BHE018137R0001 AC800PEC module is an RCI-Box interface device designed for ABB PCS6000 power converter systems. Unlike a standard PLC I/O module, the XUD194 is mainly used as a commissioning and diagnostic interface, providing engineers with access to internal converter measurement signals during startup, testing, and maintenance activities.
The ABB XUD194 3BHE018137R0001 allows selected internal digital signals from the converter control system to be converted into analog outputs that can be displayed on an oscilloscope. This function helps engineers analyze switching behavior, control responses, current regulation signals, and converter operating conditions without physically probing sensitive electronic circuits.
The ABB AC800PEC XUD194 works together with ABB’s high-speed power electronics control architecture. The AC800PEC platform is used in applications requiring fast control response, including converter systems, excitation systems, industrial drives, and other power electronic equipment.
The ABB RCI-Box supports flexible signal selection through the PCS6000 HMI environment. Engineers can select required internal measurement points and monitor multiple channels simultaneously, making it useful during commissioning, fault analysis, and performance verification.
The 3BHE018137R0001 is not a normal operating controller replacement component. It is primarily a service and diagnostic accessory for converter systems. Correct usage depends on the installed PCS6000 configuration, AC800PEC controller architecture, HMI settings, and commissioning procedures.
When replacing an , engineers should confirm the exact converter platform, hardware revision, connection cables, 24 VDC supply arrangement, and required diagnostic functions. Using an incorrect interface module may prevent access to internal converter signals during commissioning or troubleshooting.
XUD194-3BHE018137R0001-AC800PEC
Application Scenarios & Field Considerations
Engineering Pain Point
Typical situations requiring the include:
- Converter startup problems
- Gate control analysis
- Current regulation verification
- Unexpected converter trips
- Power module troubleshooting
- Control loop performance checks
The itself is usually not the source of operational faults. Engineers should also inspect:
- AC800PEC controller status
- PCS6000 control software
- Fiber communication links
- Power semiconductor condition
- Measurement feedback circuits
Recommended troubleshooting steps:
- Verify 24 VDC supply
- Confirm RCI-Box connection
- Check HMI signal selection
- Monitor selected analog outputs
- Compare measured waveforms with expected values
- Review converter fault records
The ABB 3BHE018137R0001 provides visibility into converter operation, but accurate diagnosis requires understanding the complete power electronics control system.
Typical Applications
Medium Voltage Converter Systems
Used for:
- commissioning
- Converter waveform monitoring
- Power module troubleshooting
Industrial Drives
Applied for:
- High-power motor drive diagnostics
- Control loop adjustment
- Current and voltage signal analysis
Excitation Systems
Used for:
- Generator excitation monitoring
- Control response testing
- Electrical parameter verification
Power Electronics Development and Service
Applied in:
- Converter testing
- Maintenance activities
- System performance evaluation
Technical Pitfalls to Avoid
1. Confirm Correct System Compatibility
Verify:
- converter type
- controller version
- part number
- Required connection cables
2. Do Not Treat as a Standard Controller Module
The is mainly a diagnostic interface. It does not replace the processor or control hardware.
3. Verify Signal Configuration
Check:
- Selected measurement channels
- HMI configuration
- Analog output assignments
- Oscilloscope scaling
4. Check Power Supply and Connections
Before testing:
- Verify 24 VDC input
- Inspect fiber and communication connections
- Confirm grounding arrangement
Related Products
- ABB Controller
High-speed controller platform used for power electronics applications. - ABB Medium Voltage Converter System
Converter platform where the RCI-Box is used for service and commissioning functions. - ABB PPD113 / PCD235 Series Modules
Related converter control components. - ABB GFD563 / GFD Series Control Modules
Converter interface and control components used in ABB power electronics systems.
