Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 5SHY6545L0001 |
| Material Number | AC10272001R0101 |
| Associated Part | 5SXE10-0181 |
| Product Type | IGCT Power Semiconductor Module |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor |
| Voltage Class | 4500Vā6500V class (application dependent) |
| Current Class | High-current press-pack power device |
| Package Type | Press-pack ceramic housing |
| Gate Control | Dedicated ABB IGCT gate drive interface |
| Cooling Method | Double-sided cooling / converter cooling system |
| Switching Application | High-power converter switching |
| Compatible Platform | ABB ACS6000 and related medium voltage converter systems |
| Installation | Converter power stack assembly |
| Typical Environment | Industrial power electronics cabinet |
| Application | Medium voltage drives, converters, power conversion equipment |
Product Introduction
ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 Overview
The ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 is a high-power semiconductor switching assembly used in ABB medium voltage converter platforms. It belongs to the ABB 5SHY series of press-pack power devices and is designed to control high-energy switching operations inside industrial power conversion systems.
The ABB 5SHY6545L0001 functions as a critical element inside converter power stacks, where precise switching of electrical energy is required for large motor drives and power conversion equipment. The device works together with dedicated gate drive electronics, such as the associated 5SXE10-0181 driver component, to provide controlled turn-on and turn-off behavior of the semiconductor device.
The ABB 5SHY6545L0001 AC10272001R0101 is not a standard automation module. It belongs to the power stage of the drive system, where mechanical installation, thermal conditions, gate drive compatibility, and converter topology all directly affect operation. Replacement requires matching the complete converter design rather than only the semiconductor part number.

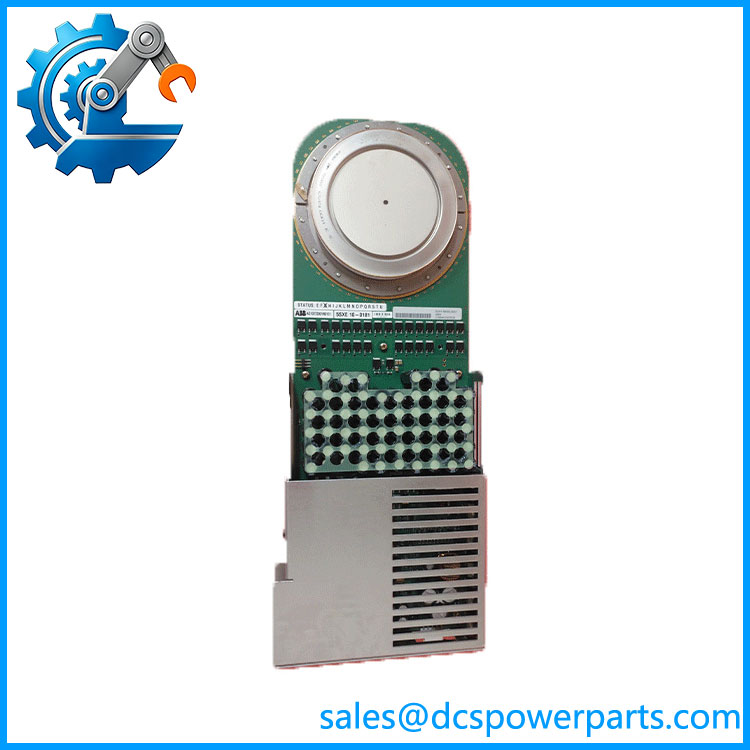

5SHY6545L0001-AC10272001R0101-5SXE10-0181
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive trips during acceleration or heavy load operation. The controller reports converter faults, but the actual failure may exist inside the power switching section.
The troubleshooting path normally includes:
- Control command generation
- Gate driver operation
- Fiber communication
- Semiconductor switching behavior
- Cooling system performance
- DC link conditions
The ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 sits at the power conversion layer. A failure here can stop the entire drive even when the PLC/DCS control system remains healthy.
Typical Applications
Mining and Mineral Processing
Used in large motor drive systems for:
- Grinding mills
- Crushers
- Conveyor systems
- Hoisting equipment
Cement Industry
Applied in medium voltage drive systems for:
- Kiln equipment
- Large fans
- Process compressors
Oil and Gas Facilities
Used for:
- Compressor drives
- High-power pumps
- Rotating equipment control
Utility and Power Applications
Applied in:
- Converter systems
- Large auxiliary drives
- Industrial energy conversion equipment
Technical Pitfalls to Avoid
1. Confirm Complete Converter Matching
The IGCT module must match:
- Converter voltage class
- Power stack design
- Gate drive assembly
- Cooling arrangement
A similar-looking semiconductor device may not operate correctly in the original converter.
2. Check Gate Drive Components
Before replacing the IGCT module, inspect associated drive electronics:
- Gate driver board
- Fiber optic connections
- Trigger signals
- Fault feedback circuits
A gate drive problem can damage a replacement module.
3. Inspect Cooling System
High-power press-pack devices depend heavily on proper thermal management. Check:
- Cooling pressure
- Heat sink contact surfaces
- Temperature monitoring circuits
4. Review Previous Fault Events
Repeated overcurrent, short circuit, or commutation faults may indicate a system issue rather than a single failed semiconductor.
