ABB 5SHY5045L0020 | IGCT Power Module | High-Power Converter Switching

Description

ABB 5SHY5045L0020 | IGCT Power Module | High-Power Converter Switching

Key Technical Specifications

*Published values vary between current secondary sources. One source reports 4.5 kV / 4 kA, while another lists 4.5 kV / 4 kA maximum shutdown current and a 2.8 kV DC-bus application value. These should not be interpreted as the converter’s universal operating limits.

Product Introduction

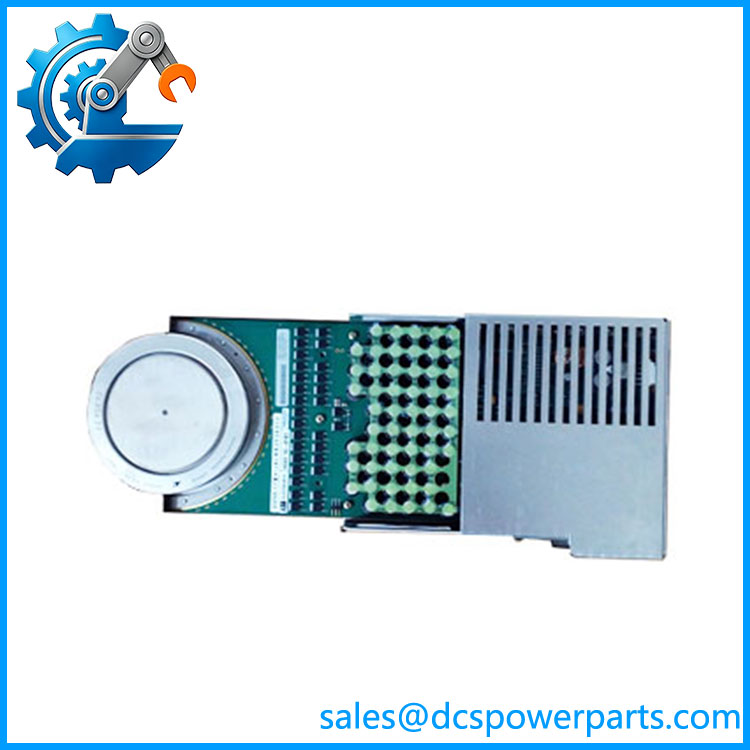

The ABB 5SHY5045L0020 is an IGCT power semiconductor used for controlled switching in high-power converter equipment. It is associated with the 5SXE10-0181 gate-drive assembly and AC10272001R0101 commercial identification found in current component records.

IGCT technology combines a gate-controlled turn-off function with the low conduction-loss characteristics associated with thyristor power devices. In ABB converter equipment, components of this class are used in high-power switching stages where semiconductor voltage, current, commutation behavior, and thermal mounting all have to be considered as one assembly.

5SHY5045L0020

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The major risk with an IGCT replacement is treating the semiconductor as an isolated component. Gate-drive matching, clamping pressure, thermal interface, fiber connections, snubber circuitry, and converter topology can all determine whether the replacement is actually suitable.

Typical Applications

• Medium-voltage industrial drives — High-power inverter switching stages.
• Active rectifier units — IGCT-based AC/DC converter sections.
• Large industrial converters — High-power energy conversion equipment.
• Grid and power-conversion equipment — Applications requiring high-voltage controllable semiconductor switching.

ABB-related technical listings specifically associate the 5SHY5045L0020 with ACS 6000-class IGCT technology and active rectifier/inverter applications.

Technical Pitfalls to Avoid

1. Do not substitute by voltage and current rating alone.
   A semiconductor with the same nominal voltage class can still have different gate-drive requirements, dynamic characteristics, housing geometry, or thermal requirements.
2. Match the complete device identification.
   5SHY5045L0020, 5SXE10-0181, and AC10272001R0101 appear together in current technical records. When sourcing a replacement, compare the markings on the semiconductor and associated gate-drive assembly rather than matching only 5SHY5045L0020.
3. Check mechanical clamping carefully.
   Press-pack/high-power semiconductor assemblies depend on correct mechanical mounting and thermal contact. Incorrect pressure or an unsuitable thermal interface can cause localized heating even when the electrical ratings appear adequate.
4. Inspect the gate-drive fiber path.
   A damaged or contaminated optical connection can produce gate-drive faults that may initially look like a failed IGCT.
5. Do not use generic multimeter resistance tests as a final acceptance test.
   IGCT devices contain semiconductor structures that cannot be fully validated by a simple continuity check. Static screening should follow the equipment manufacturer’s service procedure.
6. Check converter protection before energization.
   Snubber networks, gate-drive supply, overcurrent protection, cooling, and associated semiconductor devices should be checked before applying full DC-link voltage.

Related Products

• 5SXE10-0181 — Associated ABB gate-drive assembly identified with the 5SHY5045L0020 device.
• AC10272001R0101 — Commercial/assembly identification frequently paired with 5SHY5045L0020 and 5SXE10-0181.
• 5SHY4045L0006 — ABB 5SHY-series IGCT component used in a different power class/configuration; not an automatic substitute.
• 5SHY4045L0004 — Another 5SHY-series IGCT used in ABB high-power converter equipment.
• 5SHY4045L0003 — Related 5SHY-series power semiconductor with different device configuration.
• 5SHY3545LXXX — Lower power-class 5SHY family; electrical substitution requires engineering verification.
• 5SHY6545L0001 — Higher-rated 5SHY family device; not a drop-in replacement solely because it is an IGCT.
• 5SHX2645LXXX — Related ABB high-power semiconductor family with different device construction/configuration.

Procurement Note

For ABB 5SHY5045L0020, the minimum replacement checklist should be:

5SHY5045L0020 → 5SXE10-0181 → AC10272001R0101 → semiconductor voltage/current class → gate-drive compatibility → mechanical dimensions → clamping arrangement → cooling system → converter topology.

Be particularly careful with online specifications. One current listing gives 4,500 V and 4,000 A, while other listings add values for DC bus voltage, switching frequency, dimensions, and temperature that are not consistently supported across sources.

For procurement, I would not approve this part from the model number alone if it is going into an operating converter. The semiconductor marking, matched gate-drive assembly, and original converter part number should be compared before release.
