Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Main Power Module | 5SHY3545L0010 |
| Assembly Number | 3BHB013088R0001 |
| Driver Board | 3BHE009681R0101 |
| Control Assembly | GVC750BE101 |
| Product Type | IGCT Phase Module Assembly |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Voltage Rating | Approx. 4500V blocking capability |
| Current Rating | Approx. 3500A class (module dependent) |
| Gate Control | Integrated gate driver assembly |
| Application Platform | ABB ACS medium voltage drives |
| Typical Systems | ACS5000 / ACS6000 power conversion systems |
| Cooling Method | Drive system dependent (air or liquid cooling) |
| Installation | Medium voltage power cabinet |
| Application | Large motor drives, industrial power conversion |
([turn0search2]turn0search4)
Product Introduction

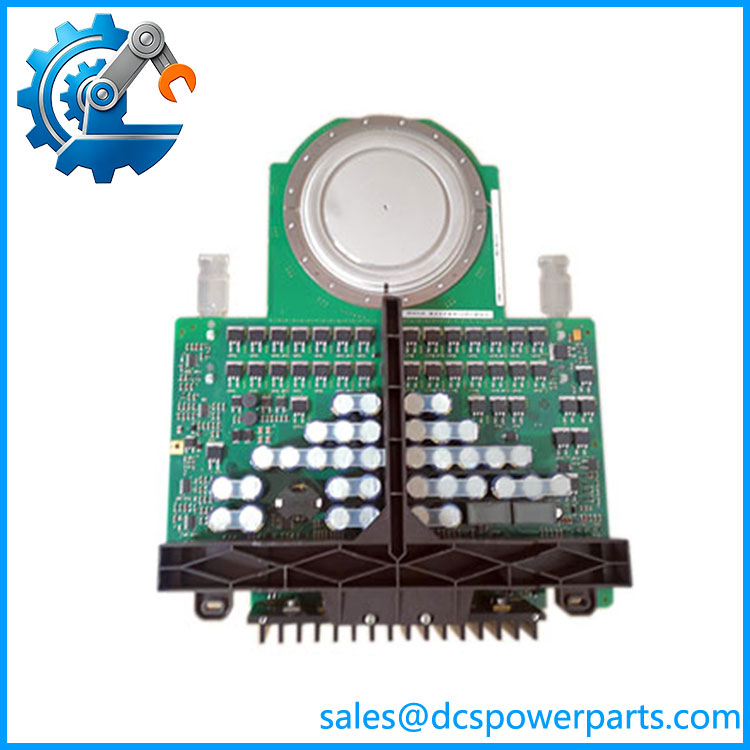

ABB 5SHY3545L0010 3BHB013088R0001 Overview
The ABB 5SHY3545L0010 3BHB013088R0001 is a high-power IGCT phase module assembly used in ABB medium voltage drive systems. It combines the IGCT power semiconductor, mechanical assembly, and associated gate control electronics required for controlled power switching in large industrial converters. ([turn0search2])
The complete assembly including ABB 3BHE009681R0101 and GVC750BE101 is designed for high-power motor control applications where precise switching of large electrical loads is required. These assemblies are typically found in medium voltage drives used for pumps, compressors, mills, and other large rotating equipment. ([turn0search5])
5SHY3545L0010
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive trips during heavy load operation. The fault history points toward a power cell or semiconductor issue, but replacing parts without proper testing can create repeat failures. The actual cause may be a failed IGCT module, gate driver problem, cooling issue, DC bus abnormality, or upstream electrical fault.
The 5SHY3545L0010 assembly is part of the power conversion stage. It handles significant electrical stress. A proper failure analysis matters before installation.
Typical Applications
- Mining Operations – Medium voltage drives for conveyors, crushers, mills, and large material handling equipment.
- Oil & Gas Facilities – Variable speed control for compressors, pumps, and large process motors.
- Power Generation Plants – Auxiliary drive systems requiring controlled high-power motor operation.
- Metallurgical Plants – Mill drives and heavy-duty production equipment requiring high torque control.
Technical Pitfalls to Avoid
- Do Not Replace Individual Components Without Matching the Complete Assembly
The IGCT module, driver board, and control interface are matched components. Confirm all part numbers before replacement. Similar-looking ABB power modules may have different gate drive requirements.
- Inspect Cooling and Mechanical Installation
Many semiconductor failures originate from thermal stress. Check heatsink condition, cooling flow, mounting pressure, and thermal interface materials before commissioning.
- Verify Gate Driver Compatibility
The 3BHE009681R0101 driver board is part of the switching system. A power module replacement without checking driver revision and hardware compatibility can result in immediate protection trips.
