Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5SHX1960L0006 |
| ABB Order Number | 3BHB016120R0002 |
| Associated Reference | 3BHE019719R0101 |
| GVC Designation | GVC736BE101 |
| Manufacturer | ABB |
| Product Type | IGBT Power Module |
| Semiconductor Type | High-Voltage IGBT |
| Rated Voltage | 1900 V reported |
| Rated Current | 600 A reported |
| Application | Medium-Voltage Power Conversion |
| Typical System Association | ABB GVC / ACS 6000 power electronics |
| Switching Function | High-power inverter switching |
| Cooling | Application/system dependent |
| Gate Drive | Requires compatible gate-drive circuitry |
| Installation | Dedicated converter power assembly |
The most specific product reference identifies 5SHX1960L0006 / 3BHB016120R0002 as a high-voltage IGBT module with a reported 1900 V voltage rating and 600 A current rating.
ABB-related indexed references also place 5SHX1960L0006, 3BHB016120R0002, 3BHE019719R0101, and GVC736BE101 together, which supports treating these identifiers as part of the same hardware identification chain rather than four unrelated catalog numbers.
Important: Do not interpret 1900 V / 600 A as a complete converter operating specification. Semiconductor ratings and the actual converter’s DC-link voltage, switching conditions, thermal limits, gate-drive parameters, and protection settings are different engineering quantities.
Application Scenarios & Pain Points
In a medium-voltage drive, semiconductor failure usually leaves evidence elsewhere. A blown IGBT may be the final symptom of an overcurrent event, gate-drive fault, cooling problem, DC-link transient, or insulation issue.
- ABB ACS 6000 drives: The part is relevant to the modular power-conversion architecture used by ABB’s medium-voltage drive platform. The ACS 6000 is designed for applications involving multi-megawatt motors and medium-voltage operation.
- Converter inverter sections: The IGBT module performs high-power switching within the converter power stage, rather than providing control logic or ordinary field I/O.
- Large motor drives: Appropriate for maintenance of high-power converter assemblies where an exact semiconductor replacement is required.
- Emergency spare inventory: A matching module can be valuable because semiconductor failures can immobilize an otherwise serviceable converter.
Field note: If the original IGBT failed catastrophically, do not install the spare and immediately apply full DC bus voltage. Check the gate driver, emitter/collector path, snubber components, bus capacitors, cooling system, and insulation condition first.

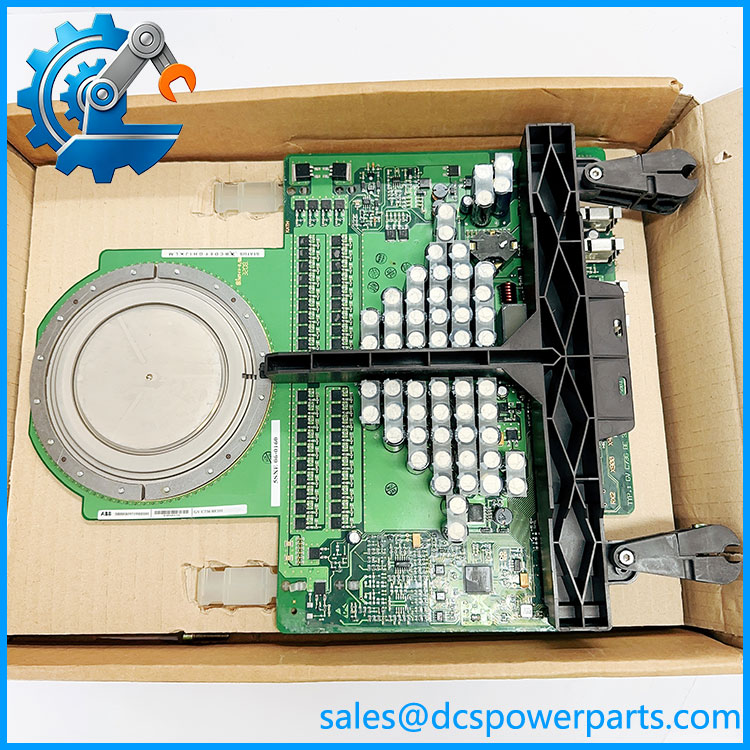

5SHX1960L0006
Related Products
- ABB 5SHY3545L0016 — A related ABB high-power semiconductor reference associated with GVC736BE101 and another 3BHB material number. It belongs to the same broader converter ecosystem but should not be treated as an electrical substitute without a gate-drive and rating comparison.
- ABB 5SHY3545L0016 / 3BHB020720R0002 — Another GVC736BE101-associated configuration. The differing ABB order number is important; the physical semiconductor family alone does not establish interchangeability.
- ABB 5SHY3545L0010 — Associated with GVC750BE101 rather than GVC736BE101. It represents a different power-module configuration and should be evaluated separately.
- ABB 5SHX2645L0002 — Associated with GVC750BE01 and 3BHB012961R0001. It belongs to another ABB converter power-module configuration.
- ABB 5SHX2645L0004 — Another ABB semiconductor reference used with a different GVC configuration. It should be considered an alternative only after checking electrical and mechanical compatibility.
- ABB GVC736CE101 — A related GVC designation appearing in ABB semiconductor references. The CE101 configuration differs from the BE101 identification and should not be mixed without system documentation.
- ABB GVC750BE101 — Another GVC power-electronics configuration. It is associated with different semiconductor part numbers and therefore is not a direct replacement for GVC736BE101.
- ABB ACS 6000 — The broader medium-voltage drive platform in which related converter power assemblies are used. It covers modular drive configurations for high-power motors.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not substitute an IGBT based only on voltage and current ratings.
Two modules can both be rated around 1.9 kV and hundreds of amps while having different switching characteristics, internal topology, gate requirements, thermal behavior, and mechanical interfaces.
⚠️ Check the gate-drive circuit before installing the replacement.
A failed IGBT can damage the associated gate driver. Applying a healthy replacement module to a defective driver can destroy the new semiconductor almost immediately.
⚠️ Inspect the thermal interface.
The mounting surface, thermal compound or interface material, clamping pressure, and cooling path all matter. Poor thermal contact can produce a failure that looks like a defective replacement part.
Practical check: Record the original module’s complete markings, inspect the gate-driver board, test semiconductor junctions according to the applicable service procedure, inspect snubber components and DC-link hardware, and verify cooling before commissioning.
Frequently Asked Questions (FAQ)
What is ABB 5SHX1960L0006?
ABB 5SHX1960L0006 is identified as a high-voltage IGBT power module, with 3BHB016120R0002 given as its ABB order number. It is associated with the power-electronics configuration.
What are the reported voltage and current ratings?
Available product information reports 1900 V rated voltage and 600 A rated current. These should be regarded as semiconductor ratings, not as the operating voltage and current of the complete ACS 6000 converter.
Is 3BHE019719R0101 the same part as 3BHB016120R0002?
The identifiers are associated together with in ABB-related industrial references. However, they appear to serve different levels of the ABB identification scheme. When purchasing, provide all four markings rather than assuming one number is sufficient.
Is this IGBT used in an ABB ACS 6000?
The /5SHX1960L0006 identification is associated with ABB medium-voltage converter hardware, while the ACS 6000 is ABB’s modular medium-voltage AC-drive platform for high-power motor applications. The exact converter configuration should be confirmed from the drive’s cabinet documentation before specifying the replacement.
Can I replace 5SHX1960L0006 with another ABB 5SHX or 5SHY module?
Not automatically. Check:
- Semiconductor voltage/current rating
- Internal topology
- Gate-drive requirements
- Switching characteristics
- Mounting dimensions
- Busbar connections
- Cooling interface
- Converter firmware/protection configuration
A physically similar ABB power module can still be electrically unsuitable.
What should I check when buying a used 5SHX1960L0006?
Request clear photographs of the actual module showing 5SHX1960L0006, 3BHB016120R0002, and any additional markings. Inspect the power terminals, mounting surfaces, ceramic/insulating areas, and signs of thermal damage. For a critical spare, request semiconductor test results rather than a simple visual inspection.
