ABB 5SHX1060H0003 | RC-IGCT Power Semiconductor | ACS5000 Replacement

Description

ABB 5SHX1060H0003 3BHB020538R0001 | RC-IGCT Power Semiconductor | Medium-Voltage Drive Replacement

Key Technical Specifications

The 5SHX1060H0003 / 3BHB020538R0001 identification is consistently associated with an ABB RC-IGCT module. Several secondary records specifically associate it with ABB ACS5000 systems.

Be careful with published ratings. One source lists 4500 V and 1060 A, while another gives contradictory voltage figures. For a power semiconductor at this level, the ABB device datasheet, original equipment BOM, and physical marking should take precedence over reseller specifications.

Product Introduction

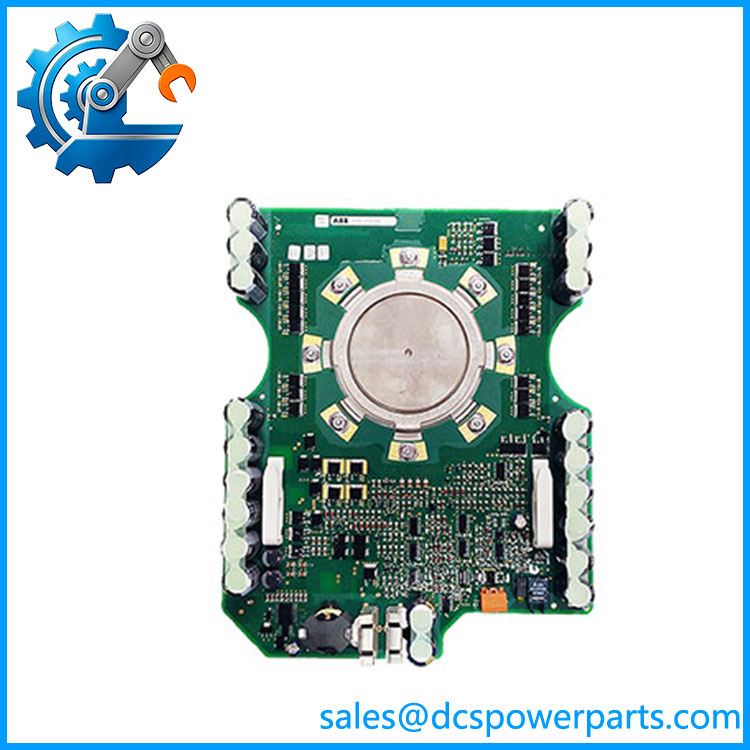

The ABB 5SHX1060H0003 3BHB020538R0001 is a reverse-conducting integrated gate-commutated thyristor designed for high-power electronic conversion. Unlike a conventional PLC or DCS module, it is a semiconductor power-switching component installed directly in the converter power stack.

The RC-IGCT architecture combines the controllable thyristor function with reverse-conducting capability in the power device. This makes the device suitable for high-power converter topologies where low conduction loss, high voltage blocking capability, and controlled turn-off are important. Secondary documentation associates this specific device with ABB medium-voltage drive equipment, including ACS5000 systems.

5SHX1060H0003

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

An IGCT failure is rarely isolated from the rest of the power stack. A failed semiconductor can be the result of gate-drive problems, excessive current, cooling degradation, commutation faults, DC-link abnormalities, mechanical clamping problems, or an upstream control fault.

Typical Applications

• ABB ACS5000 medium-voltage drive power stacks
• Medium-voltage motor-drive converters
• High-power industrial inverters
• Power-conversion and converter systems
• ABB high-power semiconductor assemblies

Technical Pitfalls to Avoid

1. Do not substitute an ordinary IGCT for an RC-IGCT.
   The reverse-conducting characteristic is part of the circuit design. The related 5SGX1060H0003 is an important example of a different device family; it should not be treated as interchangeable simply because the voltage/current class looks similar. Secondary documentation specifically distinguishes the 5SHX device as RC-IGCT.
2. Do not replace the semiconductor without checking the gate-drive circuit.
   The gate unit, gate connection, firing characteristics, protection circuitry, and mechanical installation all have to match the original power-stack design. A semiconductor that fits mechanically can still be electrically unsuitable.
3. Check the entire clamping and cooling arrangement.
   Press-pack IGCTs depend on controlled mechanical pressure and proper thermal transfer. Heat-sink flatness, clamping force, thermal interface condition, cooling flow, and stack alignment should be checked after a catastrophic device failure.
4. Investigate the reason for failure before installing the spare.
   Check gate-drive fault records, DC-link voltage, phase current, snubber/protection components, cooling system, busbar condition, and neighboring semiconductor devices. Installing a new IGCT into a faulted stack can produce another immediate failure.

Related Products

• ABB 3BHB020538R0001 — ABB product ID associated with the 5SHX1060H0003 RC-IGCT.
• ABB 5SGX1060H0003 — Related 4500 V-class IGCT family member with different reverse-conduction characteristics; not an automatic substitute.
• ABB GVC714A101 — Gate-drive/control hardware associated in some secondary documentation with ABB IGCT power assemblies; exact pairing must be confirmed from the equipment BOM.
• ABB 3BHE024415R0101 — Secondary sources associate this material number with GVC714A101 gate-drive hardware; do not confuse it with the 5SHX power semiconductor itself.
• ABB 5SHX series — RC-IGCT family covering other voltage/current configurations.
• ABB 5SGX series — Related IGCT family with different device topology.
• ABB ACS5000 — Medium-voltage drive platform associated with this device in secondary parts records.
• ABB ACS6000 — Another ABB medium-voltage drive family using IGCT-based power conversion, but exact semiconductor configuration must be checked by equipment BOM.
• ABB power-stack cooling assembly — Mechanical and thermal hardware must be matched to the semiconductor installation.

Procurement Check

Before approving an ABB 5SHX1060H0003 replacement, verify:

• Exact device marking: 5SHX1060H0003
• ABB Product ID: 3BHB020538R0001
• RC-IGCT device type
• Voltage/current rating from the original ABB documentation
• Exact drive/converter model
• Power-stack position
• Gate-drive unit and revision
• Gate connection hardware
• Mechanical clamping arrangement
• Heat-sink dimensions and surface condition
• Cooling method and flow
• Adjacent semiconductor condition
• Snubber/protection components
• DC-link and busbar condition
• Original device orientation
• Equipment BOM and service documentation

Recommended procurement description:

ABB 5SHX1060H0003 3BHB020538R0001 Reverse-Conducting IGCT (RC-IGCT) Power Semiconductor, 4500 V / 1060 A Class, Press-Pack Device for ABB Medium-Voltage Drive and Power-Conversion Systems.

The key point is that 5SHX1060H0003 is a power semiconductor, not an automation controller or I/O module. The exact RC-IGCT topology, 3BHB020538R0001 product identification, gate-drive arrangement, clamping system, and cooling design must all be matched before treating it as a field replacement.
