Description

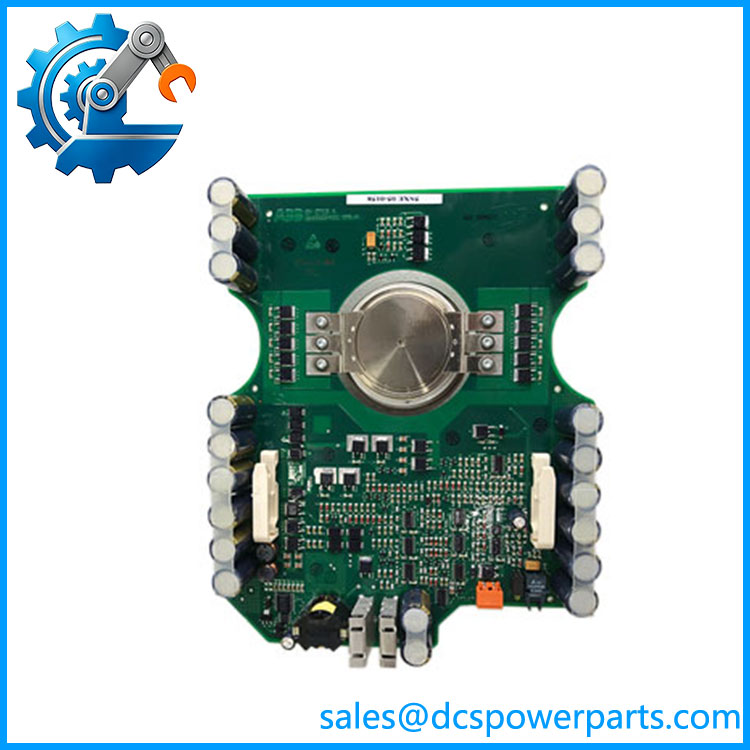

ABB 5SHX0660F0001 | 6 kV IGCT Module | Medium-Voltage Drive Replacement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5SHX0660F0001 |
| Manufacturer | ABB |
| Product Type | IGCT Module |
| Technology | Integrated Gate-Commutated Thyristor |
| ABB Product ID | 3BHL000386P0101 |
| Previous Product ID | 3BHL000386P0001 |
| Voltage Class | 6 kV |
| Package Diameter | 51 mm |
| Current Class | Approx. 660 A |
| Construction | High-power press-pack semiconductor |
| Surface/Coating | Coated |
| Net Weight | Approx. 1.81 kg |
| Typical Application | Medium-voltage drives and high-power converters |
| Installation | Power semiconductor stack with dedicated cooling and gate-drive circuitry |
ABB catalog-derived records identify the device as a 6 kV, 51 mm IGCT module and list a net weight of approximately 1.81 kg. The approximately 660 A classification appears in current technical listings; it should not be interpreted as a universal continuous converter current rating because the usable current depends on switching conditions, cooling, converter topology, and protection design.
Product Introduction
The ABB 5SHX0660F0001 is a high-power Integrated Gate-Commutated Thyristor (IGCT) used in power-conversion equipment where controlled high-voltage switching is required. ABB catalog records identify it as a 51 mm, 6 kV IGCT module, with the current product identification 3BHL000386P0101 replacing the older 3BHL000386P0001 designation.
The ABB 5SHX0660F0001 is a semiconductor power-stage component, not a PLC I/O module or conventional drive-control PCB. It works as part of a complete converter stack, where gate control, mechanical clamping, cooling, snubber/protection circuitry, and electrical layout all affect the device’s operating limits.
5SHX0660F0001
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
Replacing an IGCT is not simply a matter of matching voltage and current numbers. The device is mechanically and electrically integrated into the converter stack, and an apparently similar semiconductor can have different gate-drive, clamping, thermal, and switching requirements.
Typical Applications
- Medium-voltage AC drives — Used in high-power converter stages for large motors.
- Industrial power converters — Suitable for controlled high-power switching in converter architectures.
- Large motor drive systems — Applicable to high-power installations where IGCT technology is used for inverter switching.
- Converter maintenance — Used as a replacement semiconductor within an existing ABB power stack when the original device is no longer serviceable.
Technical Pitfalls to Avoid
- Do not confuse the IGCT with its gate unit. Some current listings describe 5SHX0660F0001 as an “IGCT controller” or “driver board.” The stronger catalog evidence identifies it as the IGCT semiconductor module itself.
- Do not substitute solely by voltage/current rating. The 5SHX0660F0001 belongs to a specific 51 mm / 6 kV IGCT class. Gate-drive compatibility, mechanical dimensions, contact surfaces, cooling, stack pressure, and protection circuitry must all match.
- Check the complete part-number history. Current records identify 3BHL000386P0101 as the replacement product ID, while 3BHL000386P0001 is listed as the replaced product ID. This is useful when reconciling older converter BOMs with current procurement records.
- Do not use a simple resistance check as acceptance testing. A power semiconductor can pass a basic static test and still have gate, dynamic switching, thermal, or mechanical problems. The surrounding gate unit and converter protection circuit should be checked as part of the replacement procedure.
Related Products
- 3BHL000386P0101 — Current ABB product ID associated with 5SHX0660F0001; the primary ordering reference to verify against the installed device.
- 3BHL000386P0001 — Previous product ID associated with the same 5SHX0660F0001 designation.
- 5SHX0845F0001 — Related 51 mm IGCT family device with a different electrical rating; not an automatic substitute.
- 5SHX0445D0001 — Smaller-rated member of the ABB IGCT family; application and electrical characteristics differ.
- 5SHX0360D0001 — Related ABB IGCT module with a different device rating and package family.
- 5SHX1060H0001 — Higher-rated IGCT family member; requires converter-specific verification before substitution.
- 5SHX1060H0002 — Related ABB IGCT module with a different configuration.
- 5SHX1445H0001 — Higher-rated ABB IGCT family component for different converter designs.
- 5SHX2645L0004 — ABB IGCT-related component with a different device configuration; not a drop-in replacement.
Procurement Note
For an ABB 5SHX0660F0001 replacement, specify both the ABB type designation and product ID where possible:
5SHX0660F0001 / 3BHL000386P0101
If an older plant BOM shows 3BHL000386P0001, document that reference as well because current catalog records identify it as the replaced product ID.
Before installation, verify the IGCT against the original device marking, semiconductor-stack geometry, gate-drive unit, heatsink/contact surfaces, clamping arrangement, cooling method, snubber network, and converter protection settings. A device with the same nominal voltage and current class is not necessarily a safe substitute.
For used or surplus hardware, inspect the ceramic/package surfaces, contact interfaces, gate connections, and evidence of thermal overstress. For a critical MV drive, I would also require a documented static semiconductor test and inspection of the associated gate-drive circuit before returning the converter to service.
