Description
ABB 5SHX0445D0001
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5SHX0445D0001 |
| ABB Product ID | 3BHL000382P0101 |
| Product Type | IGCT module |
| Semiconductor Technology | IGCT |
| Voltage Class | 4.5 kV |
| Mechanical Class | 38 mm |
| Application | High-power converter / medium-voltage drive |
| Typical ABB Platform | ACS1000 / ACS6000-related converter systems |
| Gate Control | Dedicated IGCT gate-unit interface |
| Communication Protocol | Not applicable |
| Installation | Power-converter assembly |
| Cooling | Application-dependent converter cooling system |
| Protection Rating | Module-level specification; do not infer IP54 from enclosure-level listings |
| Operating Temperature | Verify against the installed converter and OEM semiconductor documentation |
| Weight | Approximately 1.51 kg in one current product record |
ABB-related product records identify 5SHX0445D0001 as an IGCT module, with 3BHL000382P0101 as the corresponding product ID. Technical listings identify it as a 38 mm / 4.5 kV device.
A critical specification point is that this is a power semiconductor component, not a conventional PLC/DCS I/O module. Some aftermarket databases incorrectly classify it as a digital-output or general control module; those descriptions should not be used for engineering identification.
Product Introduction

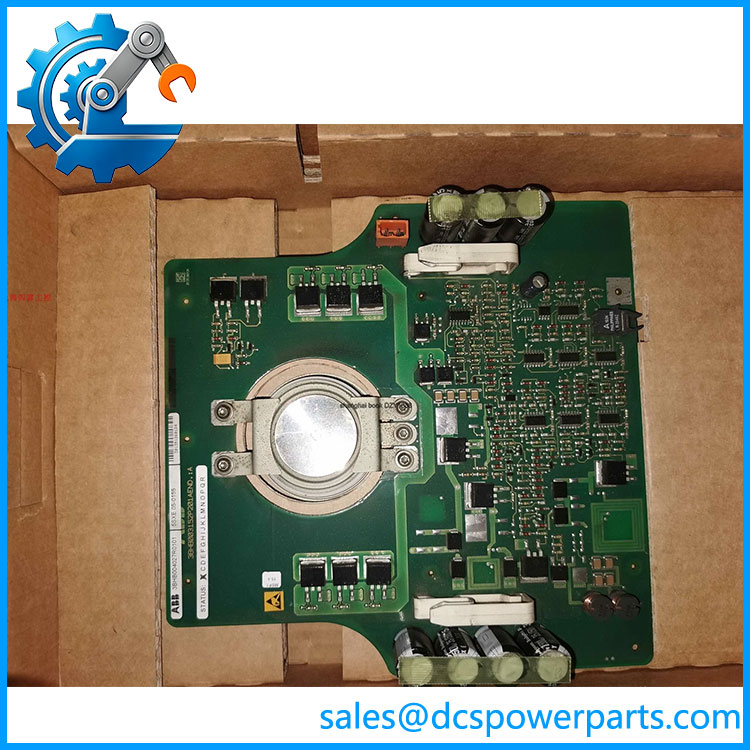

The ABB 5SHX0445D0001 is a high-power Integrated Gate-Commutated Thyristor (IGCT) module used in ABB medium-voltage power-conversion equipment. Its ABB product identification is 3BHL000382P0101, and available technical records associate the device with ABB converter platforms including ACS1000/ACS6000 equipment.
The 4.5 kV voltage class and 38 mm mechanical designation place this device firmly in high-power converter service. It is one element of the converter’s semiconductor switching stage; the associated gate electronics, snubber/cooling arrangement, DC-link structure, and control system must all be considered when evaluating a replacement. A replacement IGCT is therefore not simply a matter of matching voltage and physical dimensions.
5SHX0445D0001
Engineering Pain Point
IGCT failures can present as converter trips, phase imbalance, DC-link abnormalities, semiconductor faults, or repeated gate-drive alarms. Replacing the suspected device without checking the gate unit, firing signal, cooling system, snubber components, bus connections, and other devices in the same converter leg can result in another semiconductor failure immediately after energization.
Typical Applications
- ABB ACS1000 medium-voltage drives — high-power converter switching stages.
- ABB ACS6000 converter systems — IGCT-based voltage-source converter architectures.
- Industrial medium-voltage motor drives — large motors in process industries.
- High-power electrical conversion systems — applications requiring high-voltage semiconductor switching.
Technical Pitfalls to Avoid
- Do not confuse the IGCT with its gate unit.
The 5SHX0445D0001 is identified as the IGCT module. Separate technical records identify an IGCT Gate Unit function for this part number, but procurement should follow the physical assembly and ABB documentation rather than an inconsistent reseller description. - Verify the complete semiconductor identification.
Confirm 5SHX0445D0001 / 3BHL000382P0101 against the installed component. The older identifiers HL000382P0101 and 3BHL000382P0001 also appear in replacement records. - Do not infer electrical equivalence from the 4.5 kV rating.
Gate characteristics, current capability, switching behavior, mechanical mounting, gate-unit compatibility, and converter topology all matter. - Inspect the gate-drive circuit before replacing the IGCT.
A damaged gate unit, optical interface, firing circuit, or gate connection can cause a replacement semiconductor to fail during the next switching event. - Check the cooling path.
Thermal interface condition, heatsink contact, cooling medium, fans/pumps, and temperature monitoring should be checked whenever a power semiconductor is replaced. - Inspect the complete converter leg.
If one IGCT has failed catastrophically, inspect adjacent semiconductors, DC-link components, busbars, snubber components, and protection circuits before re-energizing the converter. - Do not use an IP54 listing as the module’s own protection specification.
Some commercial listings advertise an IP54 level for an ACS-series accessory/package, but that should not be interpreted as the bare IGCT semiconductor’s enclosure rating.
Related Products
- ABB 3BHL000382P0101 — product ID corresponding to 5SHX0445D0001.
- ABB 3BHB004027R0101 — associated long-description identifier appearing with the 5SHX0445D0001 assembly in product records.
- ABB 5SHX0445D0001 — the 4.5 kV / 38 mm IGCT designation itself.
- ABB 5SHY4045L0006 — related ABB IGCT semiconductor family member; electrical and mechanical equivalence must be verified.
- ABB 5SHX2645L0006 — related 4.5 kV-class IGCT family device, but not a drop-in replacement without converter-specific verification.
- ABB GVC700AE01 — converter-related control hardware appearing in records associated with 5SHX0445D0001.
- ABB ACS1000 — medium-voltage drive platform associated with this class of IGCT hardware.
- ABB ACS6000 — high-power converter platform using IGCT technology.
Procurement Note
For 5SHX0445D0001, specify both the ABB type designation and product ID: 5SHX0445D0001 / 3BHL000382P0101. Also record the old identifiers if they appear on the removed device: HL000382P0101 / 3BHL000382P0001.
For an actual drive repair, the minimum verification set should include converter model, semiconductor position, gate-unit type, gate-fiber/interface arrangement, cooling configuration, adjacent semiconductor condition, and the original nameplate markings. The 4.5 kV rating alone is not enough to approve a substitute.
