Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500MTM02 |
| Ordering Number | 1MRB150020R1102 |
| Additional ID | 1HDF930512X010 |
| Product Type | Temperature Measurement Module |
| Product Family | ABB 500 Series |
| Measurement Type | Temperature / analog process measurement |
| Sensor Interface | Configuration-dependent |
| Application | Industrial process monitoring and control |
| System Function | Temperature signal acquisition |
| Installation | ABB 500-series control architecture |
| Hardware Revision | Verify from installed module |
| Channel Configuration | Verify against original ABB documentation |
| Input Range | Verify against exact hardware/configuration |
| Accuracy | Verify against original ABB documentation |
Specification caution: Publicly indexed information for this legacy ABB module is limited. Several secondary sources identify the model and part-number combination but do not provide reliable primary-source electrical specifications. I would therefore avoid assigning a definitive RTD/thermocouple type, channel count, input range, resolution, or accuracy without the original ABB documentation or module nameplate.
Product Introduction
The ABB 500MTM02 1MRB150020R1102 is a legacy temperature measurement module belonging to ABB’s 500-series control hardware. Its role is to bring temperature-related field measurements into the control system so that the controller can monitor process conditions, implement protection functions, and use temperature values within control logic.
The ABB 500MTM02 is intended for applications where temperature is an important process or equipment variable. Depending on the original installation, the module can form part of a measurement chain involving field sensors, transmitters, wiring, signal conditioning, the 500MTM02 input circuitry, and the control processor. The complete measurement chain therefore needs to be considered when diagnosing inaccurate or unstable temperature readings.
The ABB 1MRB150020R1102 identifier should be retained together with the additional board marking 1HDF930512X010 when sourcing a replacement. These identifiers are particularly useful for legacy ABB equipment because closely related 500-series modules can perform different I/O functions.
The 500MTM02 1MRB150020R1102 should not be treated as a generic temperature-input card. Sensor type, input conditioning, channel configuration, and system scaling need to be confirmed from the installed system documentation before substitution.

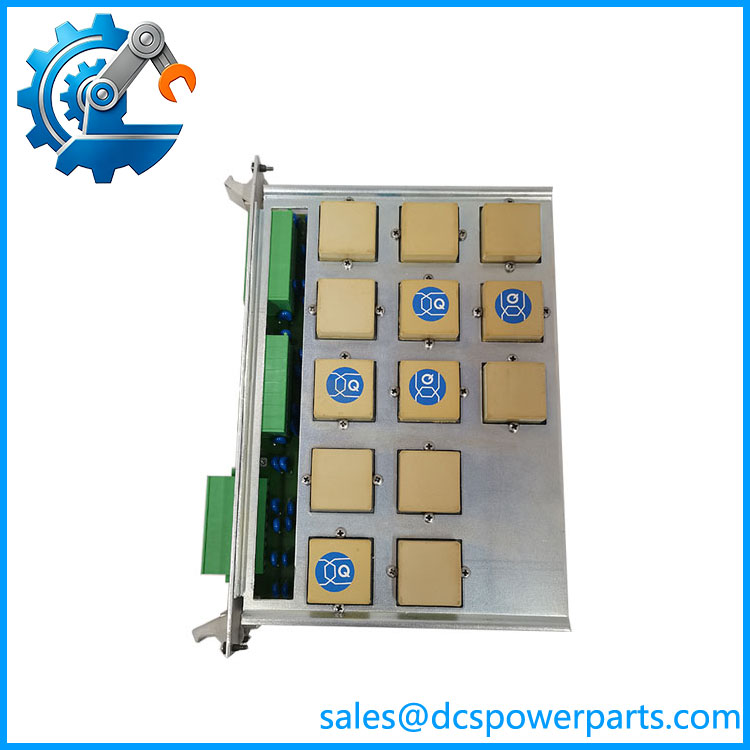

500MTM02
Main Features & Field Considerations
Temperature signal acquisition
The primary purpose of the 500MTM02 is to acquire temperature-related measurements for use by the ABB control system. Temperature values may be used for monitoring, alarms, permissives, regulation, or equipment protection.
Legacy ABB architecture
The module is associated with an older ABB control platform. Compatibility depends on the rack, controller, backplane, wiring, and software configuration rather than the module’s physical dimensions alone.
Sensor compatibility must be checked
Do not assume that a replacement module accepts the same sensor type simply because it carries the same 500MTM02 designation. Verify the original engineering drawings and field instrumentation.
Replacement checks
Before installing an ABB 500MTM02 1MRB150020R1102, verify:
- Complete ordering number
- 1MRB150020R1102 marking
- 1HDF930512X010 marking
- Number of connected channels
- Sensor type
- Input wiring
- Terminal/common arrangement
- Rack and backplane compatibility
- Controller configuration
- Engineering-unit scaling
- Alarm limits
Troubleshooting
For an incorrect temperature value, check the measurement chain in this order:
- Sensor condition
- Sensor/transmitter supply
- Field wiring
- Terminal connections
- Input-channel configuration
- Module status
- Controller scaling
- 500MTM02 hardware
This prevents replacing an expensive legacy I/O module when the actual fault is a failed sensor, broken cable, or configuration error.
Typical Applications
The ABB 500MTM02 can be encountered in legacy ABB installations involving:
- Process-temperature monitoring
- Motor and equipment temperature supervision
- Industrial plant control
- Power-system auxiliary control
- Alarm and protection systems
- Temperature feedback loops
Typical monitored variables can include bearing, winding, process, cabinet, or equipment temperatures, depending on the original application.
Procurement Note
For ABB 500MTM02 1MRB150020R1102 1HDF930512X010, use the complete part-number string when sourcing a replacement. Because authoritative technical data for this exact legacy variant is difficult to verify from currently indexed sources, I would not publish a specific channel count, sensor type, input range, accuracy, or isolation specification without the original ABB documentation.
For a plant replacement, match 1MRB150020R1102 + 1HDF930512X010, then verify the sensor interface and rack configuration against the installed system before energizing the module.
