Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 500MBA01 |
| Manufacturer | ABB |
| ABB Order Code | 1MRB150003R0002 |
| Alternative Identification | 1MRB200053/L |
| Product Family | ABB 500 Series |
| Product Type | Control / Electronics Module |
| Hardware Designation | MBA01 |
| Application | Legacy ABB industrial control equipment |
| Status | Legacy / obsolete |
| Replacement Identification | Compare against 500MBA02 / 1MRB200053/M only after system-level verification |
Important Specification Note
There is not enough reliable primary documentation available to justify publishing detailed electrical specifications such as 24 VDC input, DI/DO counts, analog I/O counts, RS-485, Ethernet, PROFIBUS, or Modbus for this exact part.
Several secondary listings describe the 500MBA01 as a general-purpose PLC/control card and publish extensive I/O and communication specifications. Those claims are not supported by the stronger identification records I could verify, so I would not use those numbers on a technical product page without the original ABB manual or equipment documentation. One such listing, for example, claims 8 DI/8 DO, 4 AI/2 AO, RS-485 and Ethernet, but provides no credible ABB document supporting those specifications.
Product Introduction

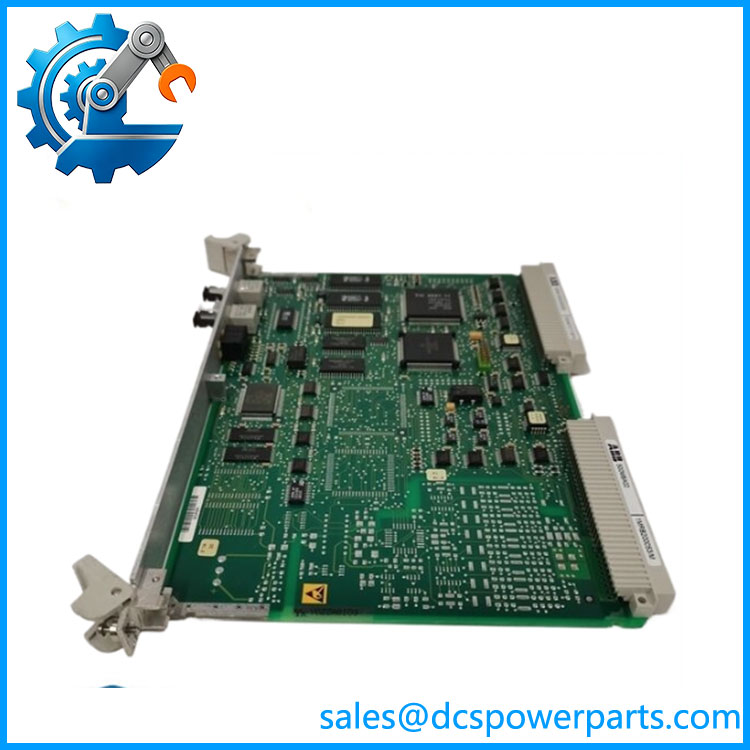

The ABB 500MBA01 1MRB150003R0002 1MRB200053/L is a legacy ABB 500-series electronics/control module identified by the MBA01 designation. The three identifiers are repeatedly associated with the same product in available equipment indexes: 500MBA01, 1MRB150003R0002, and 1MRB200053/L.
For maintenance work, the main value of this part is its role as an exact replacement for an installed legacy assembly rather than its suitability as a generic PLC module. The available documentation is too limited to safely assign modern communication or I/O specifications to it. Procurement should therefore be based on the complete nameplate identification, installed chassis/system, hardware revision, and original wiring documentation.
500MBA02
Application Scenarios & Field Pitfalls
Engineering Pain Point
The biggest problem with the 500MBA01 is documentation ambiguity. Online listings often classify it generically as a “control card” and then attach specifications from unrelated PLC products. That creates a serious replacement risk: a physically similar ABB 500-series board does not automatically have the same electrical function or configuration.
The 500MBA01 is also frequently listed alongside the 500MBA02 1MRB150003R0003 1MRB200053/M, but the existence of a closely related MBA02 designation does not by itself establish a direct drop-in replacement. Both identifiers appear together in ABB 500-series product indexes.
Typical Applications
- Legacy ABB industrial control systems requiring replacement of an MBA01 assembly.
- Power and electrical equipment control where ABB 500-series electronics remain installed.
- Plant maintenance and retrofit projects involving discontinued ABB control hardware.
- Spare-parts inventory programs for long-running systems where the original controller platform is still operational.
Technical Pitfalls to Avoid
- Do not buy based on “500MBA01” alone. Match 500MBA01 + 1MRB150003R0002 + 1MRB200053/L against the installed nameplate whenever possible.
- Do not assume 500MBA02 is a direct substitute. The MBA02 version carries different identifiers: 1MRB150003R0003 / 1MRB200053/M.
- Reject unverified I/O specifications. Claims such as 8 DI/8 DO, 4 AI/2 AO, Ethernet, PROFIBUS, or Modbus should not be published or used for engineering substitution unless supported by the applicable ABB documentation.
- Check revision and application before installation. With legacy ABB hardware, the same family designation can cover assemblies intended for different positions or configurations.
Related Products
- 500MBA02 1MRB150003R0003 1MRB200053/M — Closely associated MBA-series variant, but carries a different ABB order code and should not be treated as an automatic replacement.
- 500CPU03 1HDF700003R5122 — ABB 500-series CPU-related hardware; different system role from the MBA01.
- 500CPU05 1MRB150081R1/E — Another 500-series CPU/control assembly.
- 500SCM01 1MRB150004R0001 / 1MRB200059/C — 500-series module with a different SCM designation and system function.
- 500PSM03 1MRB150038R1 — 500-series power-system module, relevant when diagnosing the broader control assembly rather than replacing MBA01 directly.
- 500BIO01 1MRB150005R0001 / 1MRB200060/E — 500-series BIO module; functionally distinct from MBA01.
- 500BIM01 1MRB160024R0002 — Related 500-series hardware with a different BIM designation.
- 500CIM05 1MRB150077R1/B — Another 500-series control/interface module.
Procurement Check
For 500MBA01 1MRB150003R0002 1MRB200053/L, I would treat the three-part identification as the procurement key, not a generic description such as “PLC control card.” Available records consistently connect these identifiers, while detailed functional specifications remain poorly documented in public sources.
If the installed unit is being replaced, the safest purchasing requirement is: ABB 500MBA01, 1MRB150003R0002, 1MRB200053/L, exact hardware/revision match required. Avoid accepting an MBA02 or another 500-series module solely because the board appears physically similar.
