Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500BIM01 |
| Ordering Number | 1MRB150024R0002 |
| Module Type | Binary Input Module |
| Signal Type | Digital / discrete input |
| Application | Industrial control and process automation |
| Field Interface | Binary field signals |
| Installation | ABB control system / I/O assembly |
| System Function | Field status acquisition |
| Typical Devices | Contacts, switches, relays, limit switches |
| Diagnostics | System-dependent |
| Hardware Status | Legacy / discontinued |
Important: Online sources conflict on the exact technical definition of the 500BIM01. One source identifies the 1MRB150024R0002 version as a drive-control module, while another identifies the same number as a binary input module. For procurement or engineering replacement, the complete ABB part number and existing system documentation should take precedence over generic online specifications.
Product Introduction
The ABB 500BIM01 1MRB150024R0002 is an ABB legacy industrial control module associated with binary signal processing in older ABB automation architectures. Its basic purpose is to provide an interface between discrete field conditions and the control system, allowing equipment status and switching information to be incorporated into PLC or process-control logic.
The ABB 500BIM01 is intended for applications where the controller needs to recognize discrete conditions such as contact closure, equipment running status, limit-switch position, relay state, or other two-state field information. These signals can be used by the control application for sequencing, permissives, alarms, interlocks, and equipment-status monitoring.
The ABB 1MRB150024R0002 should not be treated as a generic modern PLC digital-input card. The 500-series hardware is associated with older ABB control platforms, and system-level compatibility can depend on the associated controller, mounting arrangement, I/O architecture, and hardware revision. Current references also show multiple descriptions for this part number, making exact identification particularly important.
For replacement work, engineers should compare the removed module’s full ordering number, PCB markings, connector arrangement, system location, and application documentation. Do not substitute a visually similar 500-series module without confirming its electrical function.
Main Features & Field Considerations
Discrete signal acquisition
The module is intended for binary field information rather than continuous analog measurement. Typical applications include equipment status, contact monitoring, and interlock signals.

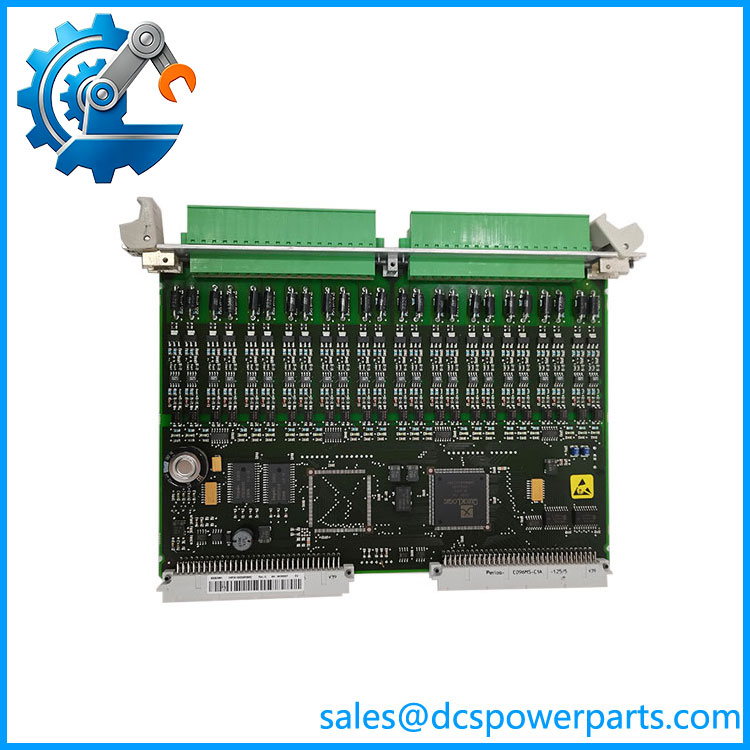

500BIM01 1MRB150024R0002
Legacy-system compatibility
The most important consideration is compatibility with the existing ABB control architecture. Older I/O hardware can depend on specific backplane arrangements, controller firmware, and signal conditioning.
Exact part-number control
The distinction between 1MRB150024R0002 and other 500BIM01 variants is important. Search results show another 500BIM01 number, 1MRB160024R0002, separately identified in current documentation.
Replacement risk
Before installation, verify:
- Full part number and hardware revision
- Existing controller/platform
- Connector and terminal arrangement
- Input voltage and signal characteristics
- Channel assignment
- I/O configuration
- Application documentation
Troubleshooting
If a digital status is incorrect, do not immediately condemn the module. Check the field contact, wiring, common/reference circuit, terminal connections, controller diagnostics, and configuration first.
Procurement Note
For the ABB 500BIM01 1MRB150024R0002, I would treat this as a legacy-part identification exercise, not a simple “same model = replacement” purchase. Current web references disagree about its exact function, while ABB-related listings clearly distinguish several 500-series modules and part-number variants.
If this is for an actual plant replacement, the safest check is to match the 1MRB150024R0002 number on the existing hardware, then compare its connector layout and system documentation before purchasing.
