ABB 3BSE092977R1 | PP875 HMI Replacement Panel

Description

Key Technical Specifications

ABB’s current hardware data confirms the 3BSE092977R1 article number, 7-inch display, 800 × 480 resolution, ARM9 1 GHz processor, 512 MB memory, 24 VDC supply, and 204 × 143 × 50 mm dimensions.

ABB also specifies a 187 × 126 mm panel cutout, 14.4 W consumption, and front protection of IP65/NEMA 4X/12/UL Type 4X/12.

Application Scenarios & Pain Points

When an operator panel fails during production, the hardware cost is usually the easy part. The harder problem is restoring the exact HMI project, communications, and operator screens without changing the machine’s established control behavior.

• Process automation: PP875 provides a local interface for displaying process values, alarms, trends, and operator commands.
• Machine control: Its compact 7-inch format works well where a full-size HMI would consume unnecessary cabinet or enclosure space.
• ABB Panel 800 installations: The unit is part of the Panel 800 Version 6.2 family and is configured through Panel Builder 800.
• PP874 replacement projects: ABB documentation identifies PP875 as the replacement for PP874, making it particularly relevant to legacy panel renewal.

Field note: The 7-inch screen is not the only thing worth checking. Before pulling the old panel, back up the application and record Ethernet IP settings, serial-port mode, communication drivers, and runtime/firmware information. A powered-up replacement with a blank or incompatible project is still a failed maintenance job.

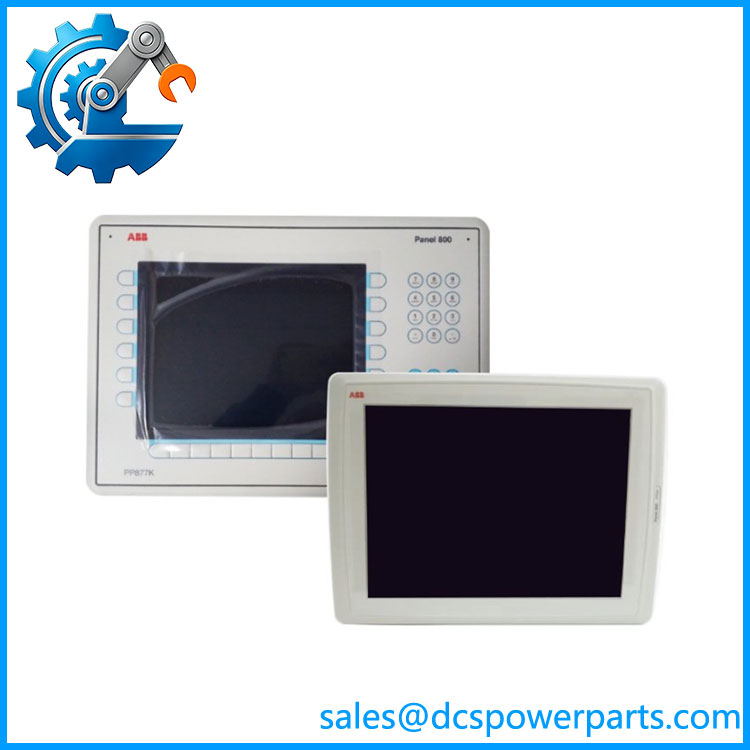

PP875 3BSE092977R1

Related Products

• ABB PP875 3BSE092977R1 — The exact 7-inch Panel 800 HMI covered here. It provides 800 × 480 visualization and multiple communication options in a compact enclosure.
• ABB PP874 — Previous-generation 7-inch panel. ABB identifies PP875 as its replacement, making PP874 particularly relevant when planning a legacy panel upgrade.
• ABB PP881 3BSE092978R1 — 10-inch-class Panel 800 successor with 1024 × 600 resolution. It provides a larger visualization area but has different dimensions and mounting requirements.
• ABB PP883 3BSE092979R1 — 12-inch Panel 800 standard panel with 1280 × 800 resolution. Better suited to applications with dense graphics or larger process mimic displays.
• ABB PP886 3BSE092980R1 — 15-inch Panel 800 panel with 1280 × 800 resolution. Intended for installations where a larger operator display is justified.
• ABB PP895 3BSE092981R1 — 21.5-inch Panel 800 panel with 1920 × 1080 resolution. This is a substantially larger HMI and requires a different mechanical installation.
• ABB PP875M 3BSE092982R1 — Black-panel variant of the PP875 family. It retains the 7-inch, 800 × 480 format but should be checked against the required enclosure and project configuration.
• ABB RX874 Touch Cover — Protective accessory intended for the front surface. It protects the touchscreen rather than replacing the HMI itself. ABB recommends this accessory for .
• ABB Panel Builder 800 Version 6.2 — Engineering/configuration environment required for configuration. The project version should be confirmed before attempting a replacement.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not assume is a direct mechanical replacement for every 7-inch Panel 800.

The uses a 187 × 126 mm cutout and has a 204 × 143 × 50 mm overall size.

How to avoid it: Measure the existing cutout before ordering. Check mounting depth and rear cable clearance as well.

⚠️ Do not confuse hardware replacement with application migration.

ABB specifies Panel Builder 800 Version 6.2 for configuration.

How to avoid it: Confirm the existing project file, runtime, firmware image, communication drivers, and configuration version before taking the old HMI out of service.

⚠️ Do not overlook the serial-interface configuration.

The panel supports RS-232 and RS-422/485, with RS-485 dependent on the COM2 configuration.

How to avoid it: Record the original COM settings, wiring, pinout, baud rate, parity, node address, and protocol. A connector that physically fits does not guarantee the same electrical configuration.

Frequently Asked Questions (FAQ)

What is ABB 3BSE092977R1?

It is a 7-inch ABB Panel 800 standard operator panel with an 800 × 480 widescreen resistive touchscreen. The unit is designed for local visualization and operator control in industrial automation applications.

What is the display resolution of ?

The display resolution is 800 × 480 pixels, using a 16:9 aspect ratio. Brightness is specified at 350 cd/m².

What power supply does ABB require?

operates from 24 VDC, with an allowable supply range of 18–32 VDC. ABB specifies approximately 14.4 W power consumption.

Can replace PP874?

Yes. ABB’s Panel 800 Version 6.2 documentation explicitly identifies as the replacement for PP874. The mechanical cutout should still be checked before installation.

What communication ports are available on ?

The panel provides:

• 1 × 10/100 Base-T Ethernet
• 1 × USB 2.0
• 1 × RS-232
• 1 × RS-422/485
• RS-485 capability through COM2 configuration

Is suitable for outdoor or hazardous-area installation?

The front is rated IP65, with NEMA 4X/12 and UL Type 4X/12 protection, but ABB lists the product as not hazardous-area certified. Operating temperature is -10°C to +60°C.

What should I verify before buying a replacement ?

For a plant replacement, check:

1. model.
2. 3BSE092977R1 article number.
3. Existing panel cutout: 187 × 126 mm.
4. Panel Builder 800 project version.
5. HMI application backup.
6. Runtime/firmware compatibility.
7. Ethernet IP configuration.
8. Serial communication mode and wiring.
9. 24 VDC supply under load.
10. Touchscreen and front-seal condition.
11. Hardware revision and nameplate.
12. Functional test evidence.
