Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | GRBTU-01 |
| ABB Product ID | 3BSE013175R1 |
| Manufacturer | ABB |
| Product Type | Module Terminal Unit |
| Associated Board | LD GRB-01 Gray Encoder Board |
| Primary Function | Terminal/interface connection for GRB-01 |
| Application | ABB legacy drive / inverter electronics |
| Installation | System-specific board/terminal assembly |
| Status | Legacy / obsolete |
Important specification note: Several current reseller pages incorrectly describe 3BSE013175R1 as a generic communication gateway, PROFIBUS interface, or multifunctional 800xA/Symphony Plus terminal unit. Those descriptions are not supported by the more specific GRB-TU reference, which directly associates the part with the LD GRB-01 Gray Encoder Board.
I would not publish claims about Ethernet, EtherCAT, Modbus, PROFIBUS, channel count, 24 VDC input, or 1500 VAC isolation as confirmed specifications for this exact part without the original ABB documentation or a matching nameplate. Those details appear in secondary listings but conflict with the more specific product identification.
Product Introduction
The ABB GRBTU-01 3BSE013175R1 is a legacy Module Terminal Unit associated with the LD GRB-01 Gray Encoder Board in ABB drive electronics. Its role is best understood as a dedicated termination/interface component rather than a standalone PLC I/O or general-purpose communication gateway. The exact relationship to the GRB-01 board is important when identifying a replacement.
For maintenance teams, the main value of this part is preserving the original GRB encoder interface arrangement without changing the surrounding drive electronics. Because public documentation is limited and online descriptions are inconsistent, procurement should be based on the complete GRBTU-01 / 3BSE013175R1 identification and the host drive assembly rather than on generic descriptions such as “DCS module” or “communication module.”

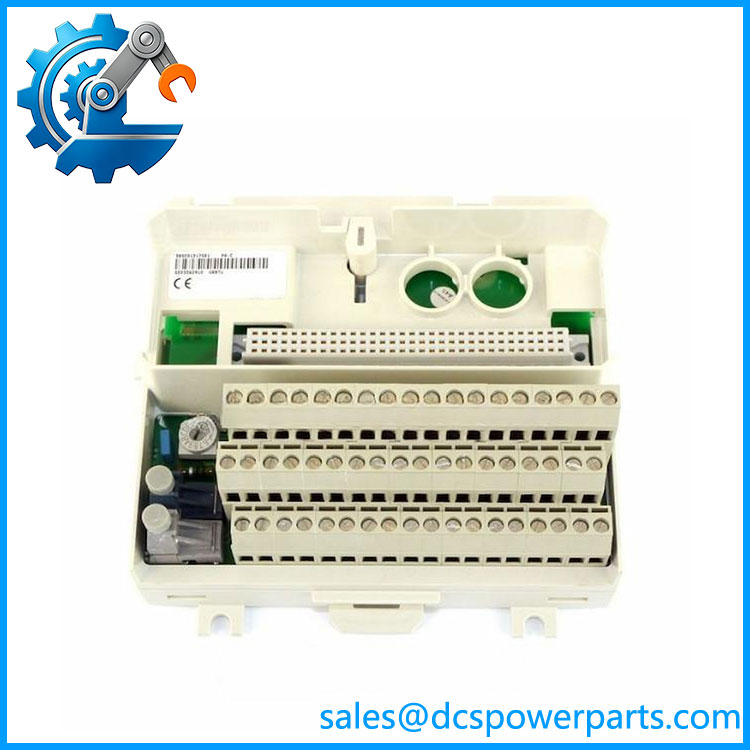

GRBTU-01 3BSE013175R1
Application Scenarios & Field Pitfalls
Engineering Pain Point
Legacy ABB drive systems can contain several small interface and termination boards that look similar but have very different electrical and mechanical functions. Replacing GRBTU-01 with a generic terminal unit can create connector, signal-routing, or encoder-interface problems even when the physical board appears compatible.
Typical Applications
- ABB legacy inverter systems using the LD GRB-01 encoder board.
- Drive maintenance and repair where the original GRB encoder interface must be retained.
- Industrial motor-control systems requiring replacement of discontinued ABB electronics.
- Spare-parts restoration for older ABB drive cabinets where the original board-level architecture remains in service.
Technical Pitfalls to Avoid
- Do not classify GRBTU-01 as a generic communication gateway. The more specific product reference identifies it as the MTU for the LD Gray Encoder Board.
- Do not assume 24 VDC is a confirmed electrical rating. Some reseller listings publish 24 VDC, but the available evidence does not establish that as the definitive specification of the GRBTU-01 itself.
- Verify the complete drive assembly before substitution. Confirm the board, mating connectors, cabinet position, board revision, and original ABB part number. A visually similar terminal/interface board is not automatically a functional replacement.
Related Products
- LDGRB-01 — 3AFE61320954P0001 — The associated ABB GRB board family that should be checked when purchasing .
- UFC789AE101 — 3BHE014023R0101 — ABB drive/control electronics board; belongs to a different board function and should not be treated as a GRBTU replacement.
- XVC724BE102 — 3BHE009017R0102 — ABB legacy drive board appearing in the same broader spare-parts ecosystem, but with a different circuit function.
- UFC921A — 3BHE024856P201 — ABB control electronics family item; verify host-system compatibility before considering any substitution.
- UAC389 — HIEE410506P104 — Another ABB legacy electronics identifier frequently encountered in the same parts databases; it is not an automatic substitute.
Procurement Check
For 3BSE013175R1, the safest purchasing description is:
ABB , 3BSE013175R1, GRB-TU Module Termination Unit for LD Gray Encoder Board.
Before ordering, verify the complete ABB part number, installed LD board, drive/inverter model, board revision, connector arrangement, and nameplate markings. Given the conflicting descriptions found in secondary catalogs, I would not approve a substitute solely because it is advertised as a “24 VDC communication module” or “800xA terminal unit.”
