ABB 3BSE006096R1 SC540 | Advant Controller Communication Module with CPU

Key Technical Specifications

Product Introduction

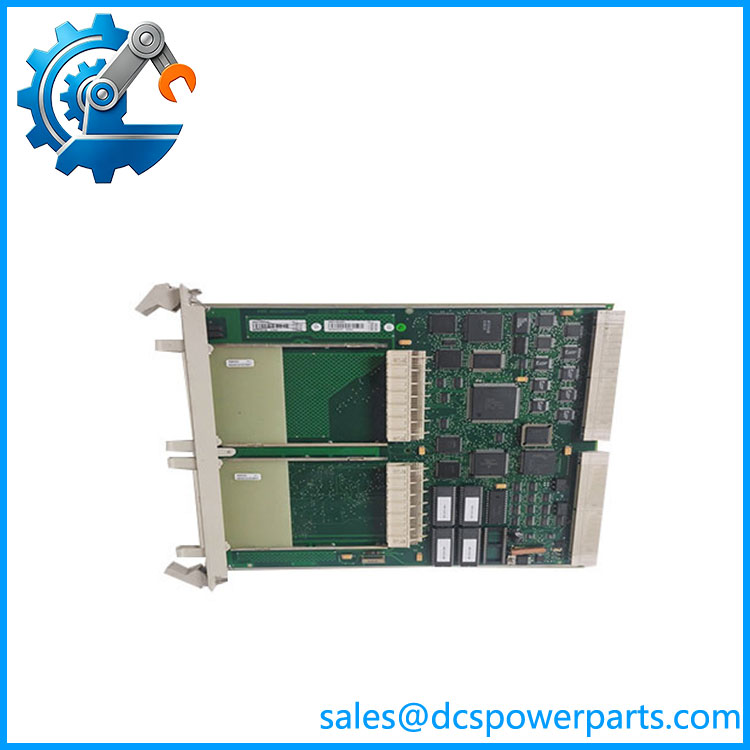

ABB SC540 3BSE006096R1 Overview

The ABB SC540 3BSE006096R1 is a submodule carrier with integrated local CPU designed for ABB Advant OCS and MOD 300 process control architectures. It provides the mechanical and electrical platform required for installing submodules while handling local processing tasks within the controller system.

The ABB SC540 3BSE006096R1 is mainly used in installed legacy DCS systems where maintaining the existing Advant architecture is more practical than a full control system migration. Replacement requires checking rack configuration, connected submodules, CPU compatibility, and existing application database before startup.

SC540 3BSE006096R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A process plant can run for decades on an ABB Advant system, but aging controller hardware eventually becomes the weak point. A failed carrier or local CPU module can affect multiple connected submodules, creating communication loss or controller shutdown events.

The difficult part is not always replacing the hardware. It is recovering the original configuration. Older DCS installations often contain undocumented changes made during previous maintenance activities.

Typical Applications

• Power Generation Plants – Boiler control, turbine auxiliary systems, and plant utility automation.
• Oil & Gas Facilities – Process control systems for compressors, pumps, and production units.
• Chemical Plants – Batch control, reactor monitoring, and distributed process regulation.
• Water Treatment Facilities – Pumping stations, chemical dosing systems, and process instrumentation.

Technical Pitfalls to Avoid

1. Submodule Compatibility Verification

   The SC540 is a carrier platform, not a standalone replacement for every Advant controller component. Confirm the installed submodules and system configuration before replacement.

2. Application Database Backup

   Local CPU hardware replacement may require restoring software configuration, parameters, and communication settings. Always secure a current backup before shutdown.

3. Rack and Wiring Documentation

   Photograph module positions, connector locations, and cabinet wiring before removal. Older DCS cabinets often contain field modifications that are not shown in original drawings.

Field note: When replacing SC540 hardware, record CPU status LEDs, connected submodules, rack position, software revision, and controller alarms before power removal. These details reduce commissioning time.
