Description
Key Technical Specifications
- Manufacturer: ABB
- Model: 216NG61A
- ABB Part Number: HESG441633R1
- Additional Identification: HESG216875/K
- Product Family: 216NG6 Series
- Product Type: Auxiliary DC Supply Unit
- System Role: Electronic equipment rack auxiliary power
- Redundancy: Supports rack configurations using one or two redundant 216NG6 supply units
- Related Variants: 216NG62A and 216NG63A
- Installation: ABB electronic equipment rack
- Application: Legacy ABB industrial control and automation systems
- Status: Legacy/field-service replacement component
The most important procurement point is the identification chain: 216NG61A → HESG441633R1 → HESG216875/K. These identifiers are associated with the same ABB auxiliary-supply unit in available technical listings.
The 216NG6 supply architecture is rack-oriented rather than a generic DIN-rail power supply. Available documentation states that each electronic equipment rack has its own auxiliary power supply arrangement, with either one or a maximum of two redundant 216NG6 units. When two redundant units are installed, both must be switched off for the auxiliary supply to be fully de-energized.
Application Scenarios & Pain Points
A failed auxiliary supply can create a misleading maintenance situation: several rack modules may simultaneously lose power, making the incident look like a controller or backplane failure. Before replacing expensive control boards, the rack’s auxiliary supply should be checked.
Typical Applications
- ABB Electronic Control Racks: Used as the auxiliary DC supply within compatible ABB electronic equipment racks. The rack architecture can accommodate one or two 216NG6 units depending on the required configuration.
- Legacy DCS/PLC Maintenance: Particularly relevant when maintaining older ABB control platforms where the original rack and power architecture must remain intact.
- Redundant Power Arrangements: Two compatible 216NG6 units can be installed as a redundant pair. This is useful where loss of a single auxiliary supply should not immediately remove rack power.
- Emergency Spare Holding: A tested spare is valuable for older installations because a power-supply failure can affect multiple downstream electronic modules simultaneously.
Field Case:
A plant rack suddenly showed several inactive electronic modules after a routine maintenance event. Instead of replacing the apparently failed boards, the technician traced the common power path and found the auxiliary supply problem. This is exactly the kind of failure where checking the common supply first saves considerable troubleshooting time.

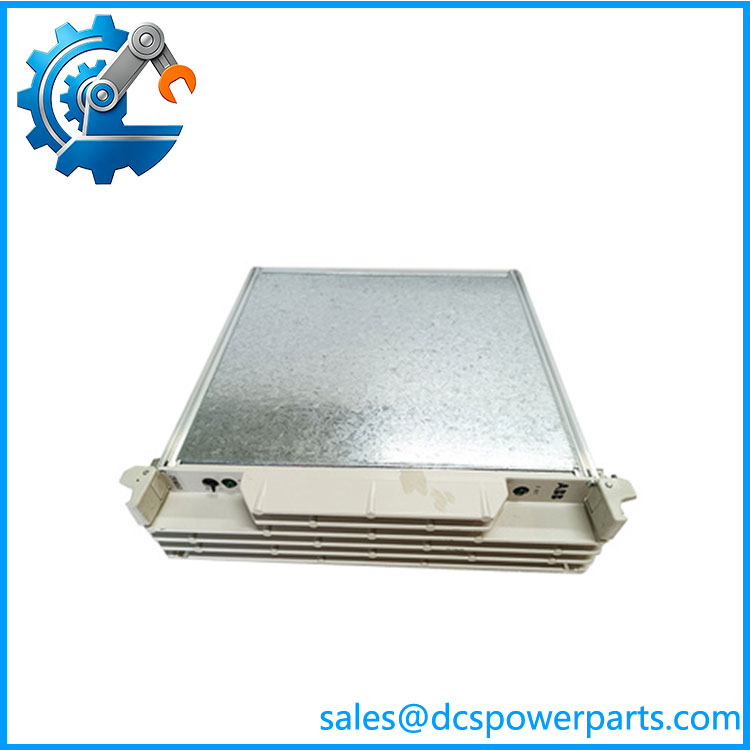

216NG61A
Related Products
- ABB 216NG62A — Related 216NG6 auxiliary DC supply variant. It belongs to the same supply family but should not be substituted for a 216NG61A until the rack documentation confirms electrical and mechanical compatibility.
- ABB 216NG63A — Another member of the 216NG6 auxiliary-supply family. It is a related option for compatible equipment-rack configurations, with its own identification and revision details.
- ABB 216EA61B — Different ABB power-supply family used in industrial control equipment. It should be treated as a related rack-power component, not as an automatic replacement for 216NG61A.
- ABB 216EA62 — Another 216-series supply variant. Functional similarities do not establish interchangeability; the rack’s original bill of material should govern replacement selection.
- ABB 216GD61A — A 216-series power-related module with different identification and application characteristics. Useful as a family reference, but not a direct substitute for 216NG61A.
- ABB 216VC62A — Another legacy 216-series electronic module. It may appear in related equipment inventories but serves a different system function.
- ABB 216BM61B — Legacy 216-series electronic module with a different functional role. It is relevant when identifying neighboring rack components, not as a power-supply replacement.
- ABB 216DB61 — Another 216-series industrial automation module. Confirm the exact function and rack position before considering any substitution.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Substitute 216NG61A Solely Because the Connector Fits
The 216NG6 family contains multiple variants, including 216NG61, 216NG62, and 216NG63. Available documentation treats them as distinct auxiliary supply units.
How to avoid it: Match the complete part number, revision, rack documentation, connector arrangement, and original equipment configuration before installation.
⚠️ Redundant Racks Must Be Completely De-Energized Before Service
A rack fitted with two redundant 216NG6 supplies can remain energized through the second unit even after one supply has been switched off. Available documentation specifically states that both redundant supplies must be switched off.
How to avoid it: Follow the site’s lockout/tagout procedure and verify the rack is actually de-energized before removing the module.
⚠️ Do Not Diagnose Downstream Boards Before Checking the Common Supply
A failed auxiliary supply can make multiple electronic modules appear defective at the same time.
How to avoid it: Check the rack supply path first, then verify downstream module power. When possible, record the supply condition before removing any controller or I/O cards.
Frequently Asked Questions (FAQ)
What is ABB 216NG61A HESG441633R1 HESG216875/K?
It is an ABB 216NG6-series auxiliary DC supply unit intended for electronic equipment racks. The identifiers HESG441633R1 and HESG216875/K are associated with the 216NG61A designation in available technical references.
Is 216NG61A a controller or I/O module?
No. It should be treated as an auxiliary power-supply component, not as a PLC CPU, communication processor, or conventional I/O module. This distinction matters because a rack-wide power problem can make downstream control modules appear faulty.
Can I replace 216NG61A with 216NG62A?
Do not assume direct interchangeability. Both belong to the 216NG6 auxiliary-supply family, but the different model numbers indicate different variants. The rack’s original documentation, electrical requirements, connectors, and revision should be checked before approving a substitution.
Can two 216NG61A units be installed for redundancy?
The 216NG6 architecture supports one or a maximum of two redundant auxiliary DC supply units in an equipment rack. Whether two specific 216NG61A units are correct for a particular rack should be confirmed against the rack’s original configuration.
What should I verify when purchasing a refurbished 216NG61A?
Request:
- Actual photographs of the nameplate
- 216NG61A model marking
- HESG441633R1 identification
- HESG216875/K marking where present
- Revision information
- Connector condition
- Power-output test report
- Load test results
- Insulation and visual inspection
- Cooling/vent condition
- Evidence of rack-level functional testing
- Warranty terms
A simple continuity test is not enough. For a rack power component, the useful test is operation under an appropriate load while monitoring the output for stability.
What is the most important information to provide when requesting a replacement?
Give the supplier the complete identification string: 216NG61A HESG441633R1 HESG216875/K, plus photographs of the original unit and its connectors. If the equipment rack has redundant supplies, state that as well. This prevents a superficially similar 216NG6 variant from being supplied by mistake.
