ABB 1MRK002247-APR04 | 670 Series Protection Relay Interface Module, Limited Stock

Description

Key Technical Specifications

Product Introduction

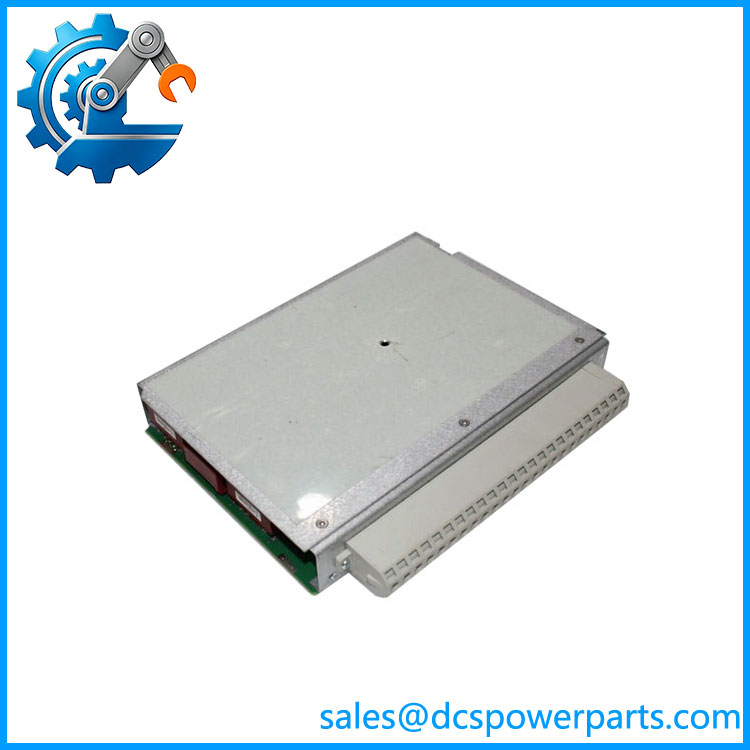

ABB 1MRK002247-APR04 Overview

The ABB 1MRK002247-APR04 is an analog distribution unit used within ABB 670 Series protection systems, particularly associated with RET670 transformer protection applications. It provides the interface between external transformer measurement circuits and the protection relay hardware, supporting accurate current and voltage signal routing.

The ABB 1MRK002247-APR04 is typically maintained in existing substation protection cabinets where the installed RET670 architecture remains operational. Replacement requires verification of the exact hardware suffix, transformer input configuration, wiring arrangement, and protection scheme documentation because the 1MRK002247 family contains multiple transformer interface variants.

1MRK002247-APR04

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A common substation maintenance problem appears when a protection relay reports incorrect transformer measurement values even though the main relay CPU is healthy. The cause is often located in the analog interface chain: CT wiring, terminal blocks, auxiliary transformer modules, or distribution boards. Replacing an interface component like the ABB 1MRK002247-APR04 requires careful verification because a small wiring mismatch can affect differential protection measurements.

Typical Applications

• Electrical Substations – Transformer differential protection and measurement signal conditioning.
• Power Generation Plants – Generator step-up transformer protection systems.
• Industrial Power Networks – Medium and high-voltage transformer protection panels.
• Utility Distribution Systems – Legacy ABB RET670-based protection installations.

Technical Pitfalls to Avoid

1. Suffix Identification Errors

   The 1MRK002247 family includes many variants with different CT/VT configurations. Do not replace based only on the base number. The complete suffix must match.

2. CT Circuit Handling Mistakes

   Current transformer circuits must never be opened under load. Follow site safety procedures before disconnecting or replacing any protection-related wiring.

3. Protection Parameter Verification

   After replacement, verify transformer ratios, protection settings, and signal scaling in the relay configuration. A physically correct module can still produce incorrect measurements if settings are not restored.

Field note: Before removing the original module, document terminal assignments, jumper positions, relay configuration files, and protection group settings. This information is critical during return-to-service testing.

Related Products

• ABB RET670 1MRK004816 Series
  Transformer protection relay platform commonly associated with 1MRK002247 interface components. Used for transformer differential and protection functions.
• ABB 1MRK002247-AP
  Transformer module variant with different current/voltage input configuration. Used where the protection scheme requires another signal arrangement.
• ABB 1MRK002247-AH
  Transformer module variant designed for different CT/VT combinations. Requires verification against the original cubicle schematic.
• ABB 1MRK002247-AR
  Transformer interface variant with different current transformer configuration. Used in specific protection panel designs.
• ABB 1MRK002247-BH
  Transformer module variant supporting another input arrangement for protection applications.
• ABB RET670
  Transformer protection IED platform where these interface modules are installed. Provides transformer differential, overcurrent, and related protection functions.
• ABB PCM600
  Engineering tool used for configuring compatible ABB protection relays, including parameter management and relay project handling.
• ABB REG670
  Generator protection platform using related 670 Series hardware concepts. Application differs from transformer protection systems.
• ABB RED670
  Line differential protection relay platform within the same 670 Series family. Uses different protection application functions.
