Description

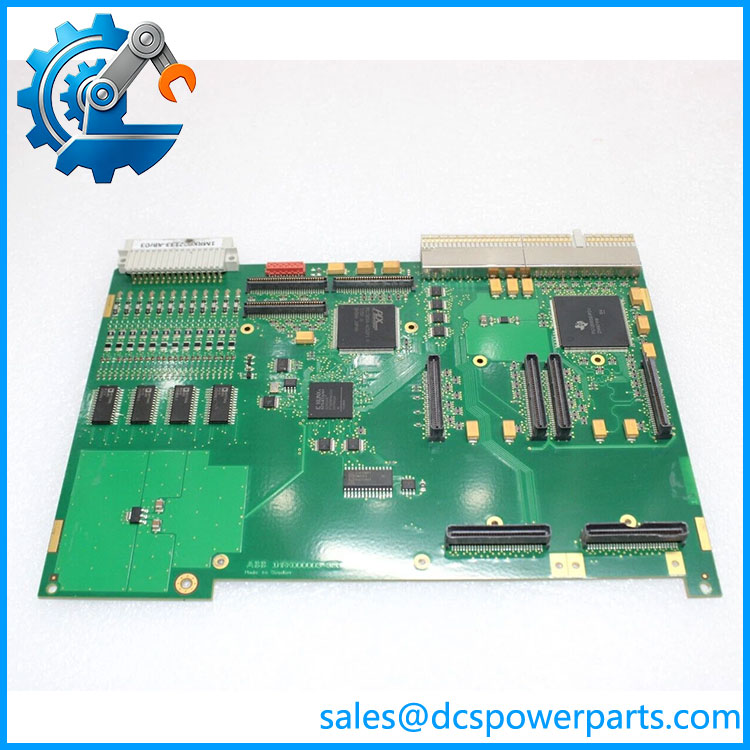

ABB 1MRK000005-520 Protection and Control PCB
Product Introduction
In legacy ABB protection equipment, the short commercial ordering number is often not enough to identify the actual circuit-board assembly installed inside the relay. ABB 1MRK000005-520 is identified in current component references as an ABB protection-system PCB and is cross-referenced with 1MRK002133-ABR03. The part appears within ABB’s broader RE_5xx/670 protection hardware ecosystem rather than as a conventional standalone PLC I/O module.
For replacement work, the internal board marking matters. Some supplier records identify the related board as 1MRK002133-ABR02, while other current catalog references show 1MRK002133-ABR03. That revision difference should be treated as a procurement checkpoint, not ignored. Match the physical PCB label, host relay model, hardware revision, and installed configuration before approving a replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1MRK000005-520 |
| Manufacturer | ABB |
| Product Type | Protection/control printed circuit board |
| Associated Reference | 1MRK002133-ABR03 reported in current catalog references |
| Alternative Board Revision Reported | 1MRK002133-ABR02 |
| Product Family | ABB RE_5xx / 670-series protection hardware |
| Application | Numerical protection and bay/control systems |
| Installation | Internal relay PCB/module assembly |
| Host System | ABB protection and control equipment |
| Exact I/O Count | Not reliably established from available primary documentation |
| Exact Supply Voltage | Verify from host-device documentation |
| Communication Interface | Verify for the specific host configuration |
| Hardware Revision | Verify from physical PCB |
| Condition | Must be confirmed from actual inventory |
The public evidence is sufficient to identify this as ABB protection/control hardware, but not sufficient to responsibly publish a definitive channel count, input voltage, or communication specification for the PCB. Generic supplier descriptions should not be used to fill those gaps.
Application Scenarios & Field Considerations
ABB Protection-System Maintenance
The 1MRK000005-520 is relevant when maintaining installed ABB protection equipment that uses this board-level hardware. It should be treated as a component-level spare rather than as a complete protection relay.
Legacy RE_5xx / 670 Hardware
ABB’s catalog references place the number within the RE_5xx/670 protection hardware group. This makes it particularly relevant to maintenance programs supporting older ABB numerical protection installations.
1MRK000005-520
PCB-Level Replacement
A board-level replacement can make sense when the host relay remains serviceable and the failure is isolated to the corresponding internal assembly. Before replacement, compare the PCB markings and revision rather than relying solely on the commercial part number.
Bay-Control and Protection Applications
Some current listings describe the 1MRK000005-520 as being used in ABB bay-control/protection applications. The exact function, however, depends on the host equipment configuration, so it should not be advertised as a universal bay-control board.
Major Features and Advantages
ABB Protection Hardware Architecture
The part belongs to ABB’s protection-system hardware ecosystem. That is important because compatibility is determined by the host IED architecture and hardware revision, not merely by connector fit.
Board-Level Spare
The 1MRK000005-520 is supplied and referenced as a PCB-level component in current component catalogs. This makes the exact board identification especially important for maintenance procurement.
Cross-Reference to 1MRK002133 Hardware
Current component references associate 1MRK000005-520 with 1MRK002133-ABR03, while other inventory records show 1MRK002133-ABR02. These references are useful for identification, but they should not be interpreted as proof that ABR02 and ABR03 are interchangeable.
Suitable for Legacy Spare Strategies
For plants supporting older ABB protection equipment, retaining correctly identified PCB-level spares can reduce the need for immediate system-wide replacement when an internal board fails.
Related Products
- ABB 1MRK002133-ABR03 — board reference associated with 1MRK000005-520 in current component catalogs.
- ABB 1MRK002133-ABR02 — earlier/alternative board reference reported with 1MRK000005-520 in some inventory records.
- ABB 1MRK000005-396 — another ABB RE_5xx/670-series module/board ordering reference.
- ABB 1MRK000005-543 — another RE_5xx/670-related ordering reference, cross-referenced with internal board hardware.
- ABB 1MRK000005-380 — ABB binary-output-module board reference used in older protection hardware.
- ABB 1MRK000005-407 — related ABB protection-system ordering reference.
- ABB 1MRK000005-484 — related ABB protection-system ordering reference.
These are related ABB protection hardware references, not confirmed drop-in replacements for 1MRK000005-520.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do Not Ignore ABR02 Versus
This is the first thing I would check on a physical spare. One inventory record identifies the board as 1MRK002133-, while current catalog references associate the commercial number with 1MRK002133-. The revision difference should be verified against ABB documentation for the host relay.
2. Do Not Treat It as a Generic PLC I/O Board
The 1MRK000005-520 belongs to ABB protection-system hardware. Its compatibility depends on the host IED, hardware revision, and internal architecture.
3. Verify the Physical PCB Label
Before accepting a replacement, record:
- 1MRK000005-520
- 1MRK002133-ABRxx marking, if present
- PCB revision
- Serial number
- ABB hardware designation
- Host relay model
- Connector and mounting arrangement
A photograph of the actual PCB label is often more useful than a supplier’s abbreviated database description.
4. Do Not Assume Current Listings Prove Function
One commercial source describes the item generically as an automation/control PCB, while another identifies it as an STM-1 PCB and a third associates it with ABB bay-control systems. Those descriptions do not establish a complete engineering specification.
5. Check Configuration After Replacement
For protection equipment, replacing the board does not finish the job. Verify hardware recognition, firmware compatibility, configuration, signal mapping, protection settings, alarms, communications, and event recording before returning the IED to service.
6. Do Not Assume Condition From the Part Number
The same ordering number can appear in new-surplus and used inventory. Actual PCB condition, storage history, corrosion, connector condition, and functional-test status need to be established independently.
FAQ
What is ABB 1MRK000005-520?
It is an ABB protection/control PCB ordering number associated with ABB’s RE_5xx/670 protection hardware. Current component references cross-reference it with 1MRK002133-.
What is the associated 1MRK002133 number?
Current catalog references associate 1MRK000005-520 with 1MRK002133-. Some inventory records instead show 1MRK002133-, so the exact board revision should be confirmed from the physical unit.
Is 1MRK000005-520 a complete protection relay?
No. The available references identify it as board-level hardware. It should not be represented as a complete ABB protection IED.
Is 1MRK000005-520 a PLC module?
No. It is associated with ABB protection and control hardware rather than a conventional PLC I/O family. Its application is dependent on the compatible ABB protection-system architecture.
Can 1MRK002133- replace 1MRK002133-?
That should not be assumed. The available inventory evidence establishes that both references have been associated with 1MRK000005-520, but it does not establish universal interchangeability between the revisions. Verify the host relay and ABB revision compatibility before installation.
What should procurement request from a supplier?
Request clear photographs of the actual PCB showing 1MRK000005-520, the complete 1MRK002133-ABRxx designation, revision marking, and serial number. Also request the host-device compatibility information and functional-test status.
What condition should be expected?
The part number itself does not establish condition. Inventory may be new-surplus, used, or otherwise previously installed depending on the individual unit. Actual condition and testing should be verified before purchase or installation.
