Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / VMIC |
| Model | VMIVME-2540 |
| Product Type | Intelligent Counter/Controller Module |
| Bus Interface | VMEbus Slave Interface |
| Form Factor | 6U VME |
| Data Transfer Width | 8 / 16 / 24 / 32-bit |
| Channel Configuration | 4 / 8 / 16 / 24 channels |
| Event Counting | Up to 4 giga events |
| Frequency Measurement | 1.16 × 10⁻³ Hz to 2.5 MHz |
| Pulse Width Measurement | 400 ns to 8.5899 × 10⁶ s (floating point) |
| Pulse Train Generation | 0.0076 Hz to 2.5 MHz |
| Timer Interrupt Generation | 0.0076 Hz to 1000 Hz |
| Digital Interface | RS-422, TTL compatible |
| Programmable Outputs | Up to 24 channels |
| Output Resolution | 12-bit |
| Power Supply | +5 VDC from VME backplane |
| Application | Industrial measurement and control systems |
Product Introduction

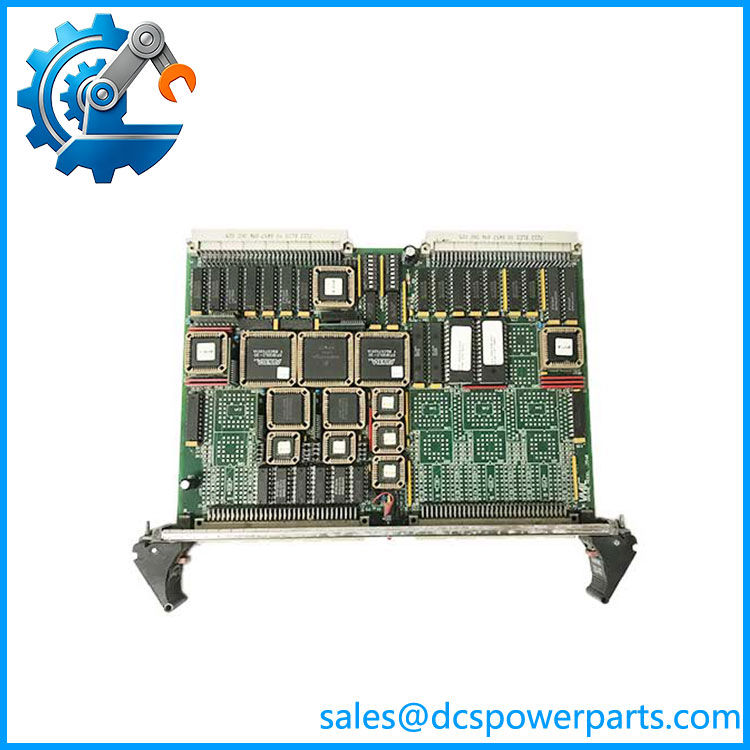

GE Fanuc VMIVME-2540 Overview
The GE Fanuc VMIVME-2540 Intelligent Counter/Controller is a high-performance VMEbus module designed for applications requiring accurate event counting, timing control, pulse measurement, and digital signal processing. It belongs to the VMIC/GE Fanuc VME product family and was developed for industrial automation, test systems, and specialized control platforms where deterministic hardware-based measurement is required.
The GE Fanuc VMIVME-2540 module provides intelligent counting functions that reduce processing demand on the host VME controller. Instead of requiring the CPU to continuously monitor high-speed input signals, the module performs measurement operations locally and stores processed data for access by the host system.
The VMIVME-2540 Intelligent Counter Controller supports multiple measurement modes, including event counting, frequency measurement, pulse width measurement, periodic timing, pulse train generation, and quadrature position measurement. These functions make it suitable for applications involving rotating machinery, motion feedback systems, automated testing equipment, and precision measurement platforms.
The GE VMIVME-2540 VME module includes configurable digital I/O capabilities that allow engineers to adapt the board to different system requirements. Hardware jumper options determine channel configuration, allowing versions with different numbers of active measurement channels.
The is commonly integrated into legacy VME-based industrial systems where long operational lifetimes and deterministic control performance are required. These systems may still be found in aerospace test equipment, industrial research platforms, automated machinery, and specialized manufacturing equipment.
When replacing a , engineers should verify the exact board configuration, channel option, VME addressing settings, host CPU compatibility, and application software interface. VME modules often rely on custom system-level configuration, and hardware replacement alone may not restore operation without matching software parameters.
The counter controller should be evaluated as part of the complete VME system, including the host processor, backplane configuration, signal wiring, timing requirements, and application software.
VMIVME-2540
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving the include:
- Incorrect counting values
- Missing pulse measurements
- Frequency measurement instability
- VME communication errors
- Unexpected timing behavior
Possible causes:
- Incorrect VME addressing configuration
- Wrong jumper configuration
- Signal noise on input channels
- Faulty field wiring
- Host software mismatch
Recommended troubleshooting steps:
- Verify VME address settings
- Confirm board configuration jumpers
- Check input signal levels
- Review host driver/software settings
- Inspect RS-422 or TTL wiring
- Compare measured values with external instruments
The performs measurement processing locally, but correct operation depends on matching the board configuration with the host VME control software.
Typical Applications
Motion and Position Measurement
Used for:
- Encoder feedback processing
- Quadrature position measurement
- Servo test systems
Industrial Test Equipment
Applied for:
- Automated testing platforms
- High-speed signal measurement
- Performance verification systems
Rotating Machinery Monitoring
Used for:
- Shaft speed measurement
- Pulse counting
- Timing analysis
Robotics and Automation
Applied for:
- Motion synchronization
- Position feedback
- Control signal generation
Technical Pitfalls to Avoid
1. Verify Board Configuration
Confirm:
- option code
- Channel quantity
- Jumper settings
- VME address configuration
Different versions may have different channel capabilities.
2. Check Signal Interface
Verify:
- RS-422 differential signals
- TTL compatibility
- Input voltage levels
- Cable termination
3. Confirm Host System Compatibility
Check:
- VME CPU model
- Driver software
- Memory mapping
- Interrupt configuration
4. Validate Measurement Accuracy
Perform:
- Signal generator testing
- Counter verification
- Timing calibration
- System-level functional testing
Related Products
- GE Fanuc VMIVME-7750
VME single-board computer commonly used as a host processor in industrial VME systems. - 24-channel configuration variant of the intelligent counter/controller family.
- VMIC VMEbus I/O Modules
Industrial VME boards used for measurement, communication, and control applications. - Abaco Systems VME-2540
Continued product family reference for the VMIC intelligent counter/controller platform.
