Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | A6410 |
| Part Number | 9199-00005 |
| Manufacturer | Emerson |
| Product Series | CSI 6500 / AMS Machinery Health Monitor |
| Product Type | Valve and Case Expansion Monitor |
| Monitoring Channels | Dual channel |
| Main Function | Valve position and casing expansion monitoring |
| Module Size | 3U plug-in card |
| Rack Occupancy | 1 slot |
| Dimensions | 100 × 160 mm PCB format, 3U height |
| Weight | Approximately 320 g |
| Application Standard | API 670 machinery protection architecture |
| Compatible Sensors | Position and expansion measurement sensors (system dependent) |
| Typical Equipment | Steam turbines, gas turbines, compressors, hydro turbines |
Application Scenarios & Pain Points
Large rotating equipment protection failures often begin with measurement problems. A turbine may continue operating while inaccurate expansion data creates unnecessary alarms or hides a mechanical clearance issue.
Typical applications:
- Power Generation: Used for steam turbine valve position and casing expansion monitoring during startup and load changes.
- Oil & Gas Compression Facilities: Applied on compressor trains where thermal growth and mechanical movement require continuous supervision.
- Hydropower Plants: Supports turbine monitoring systems where mechanical position changes affect operating limits.
- Industrial Turbomachinery: Integrated into API 670 protection systems for critical rotating assets.
Field note: A power station reported repeated startup alarms on a turbine protection rack. The sensors tested correctly, but the monitoring channel calibration had drifted. After replacing the A6410 module and restoring the verified parameters, the turbine startup sequence returned to normal.

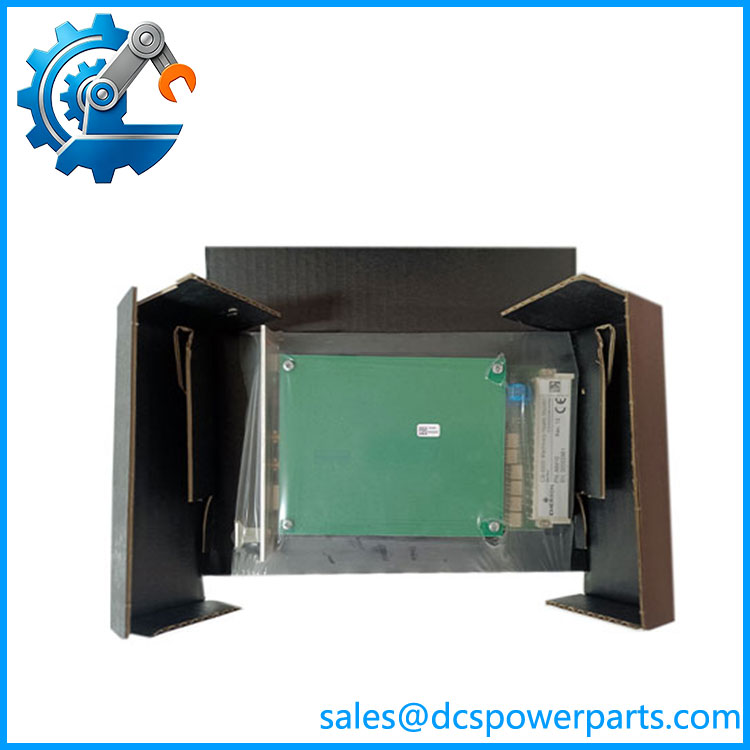

A6410 9199-00005
Related Products
- Emerson A6110 9199-00001 — Shaft relative vibration monitor. Used for monitoring radial shaft displacement in rotating machinery protection systems.
- Emerson A6120 9199-00002 — Case seismic vibration monitor. Measures casing vibration for machinery condition monitoring.
- Emerson A6210 9199-00003 — Thrust position and differential expansion monitor. Used for axial movement protection on turbines and compressors.
- Emerson A6220 9199-00009 — Shaft eccentricity monitor. Applied for rotor bow and eccentricity monitoring during startup conditions.
- Emerson A6312 9199-00025 — Speed and key-phase monitoring module. Provides rotational speed measurement and phase reference functions.
- Emerson A6510 — Machinery Health signal input module. Handles sensor input acquisition within CSI 6500 systems.
- Emerson A6560 — Machinery Health processor module. Processes monitoring data from multiple channels in prediction configurations.
- Emerson A6824 9199-00090 — Modbus communication module. Transfers CSI 6500 monitoring data to external control systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Sensor Calibration Data
A replacement A6410 may operate normally but produce incorrect expansion values if calibration parameters are missing.
How to avoid: Save the original channel settings, sensor scaling values, alarm thresholds, and trip limits before replacement.
⚠️ Mixing Similar CSI 6500 Monitor Modules
Several CSI 6500 cards share the same mechanical format but perform different protection functions.
How to avoid: Confirm the exact model number and application slot assignment before installation.
⚠️ Ignoring Rack and Backplane Condition
A healthy replacement card cannot compensate for poor chassis contacts.
How to avoid: Inspect the backplane connector pins for contamination, oxidation, or mechanical wear before inserting the module.
Frequently Asked Questions (FAQ)
What is the Emerson A6410 9199-00005 used for?
The A6410 is a dual-channel Valve and Case Expansion Monitor module for CSI 6500 machinery protection systems. It monitors turbine valve position and casing expansion parameters for critical rotating equipment.
Is the A6410 a vibration monitoring card?
No. The focuses on valve position and case expansion measurements. Vibration monitoring functions are handled by other CSI 6500 modules such as A6110 and A6120.
Can the replace another CSI 6500 module?
No. Replacement depends on the required protection function. The slot location, sensor inputs, configuration database, and protection logic must match the original installation.
What equipment typically uses the Emerson ?
Common applications include:
- Steam turbines
- Gas turbines
- Hydro turbines
- Large compressors
- Critical rotating machinery protected under API 670 schemes
Why does a turbine show expansion alarms after replacing an ?
Possible causes include:
- Incorrect sensor calibration
- Wrong alarm limits
- Channel configuration mismatch
- Wiring errors
- Firmware or configuration differences
What should be checked before purchasing an 9199-00005?
Recommended checks:
- Exact part number
- CSI 6500 chassis type
- Existing module revision
- Sensor model and wiring
- Configuration backup
- Alarm and trip settings
Is a refurbished Emerson suitable for machinery protection service?
A tested refurbished module can be suitable when it passes channel verification, input simulation testing, alarm relay checks, rack communication testing, and configuration compatibility review.
